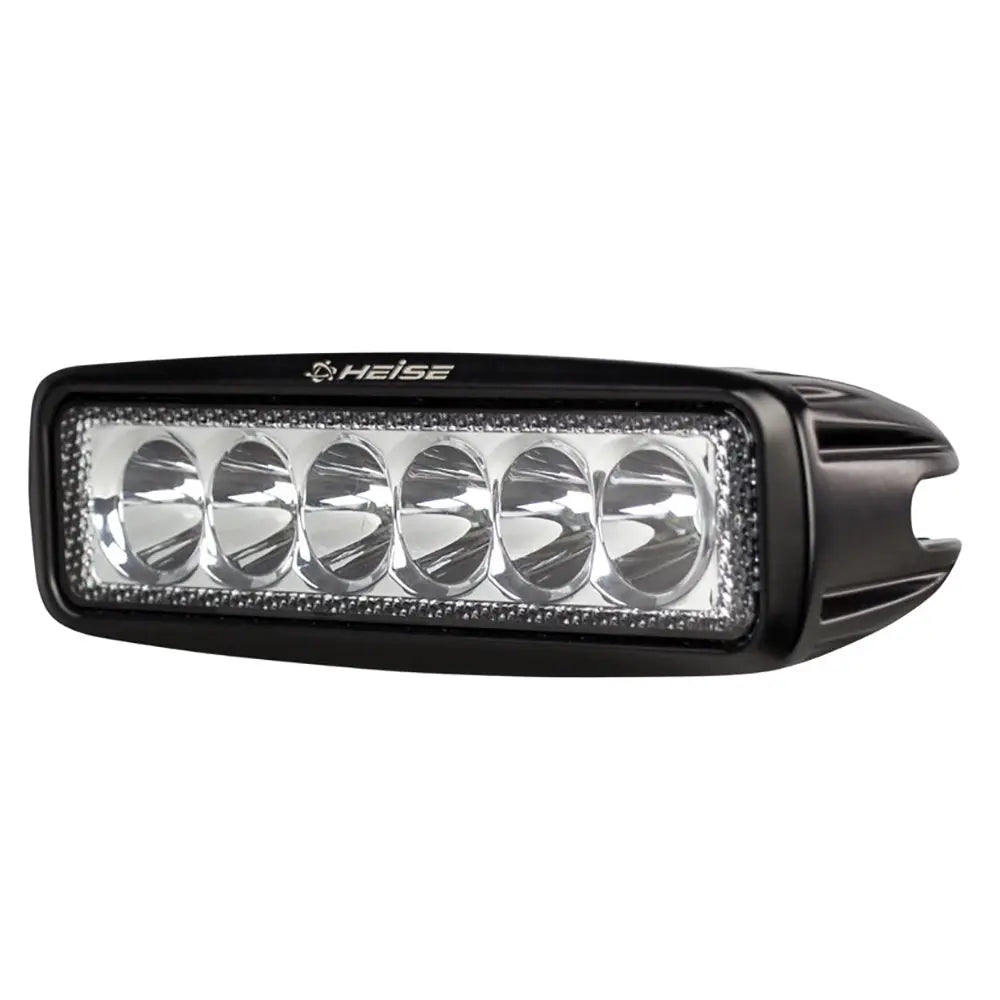

HEISE LED Lighting Systems HE-DL1 6 LED Single Row Driving Light with 25° Spot Beam

6 LED Single Row Driving Light

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3WOSRAMLEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Black Powder Coated Steel
• Hole Dimensions: Mounting Bolt Drill .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-DL1 6 LED single row driving light offers powerful illumination for enhanced visibility on vehicles and off-road applications. Featuring six high-efficiency OSRAM LEDs, this compact light provides a total wattage of 18W and a raw lumen output of 1,440, delivering bright, focused light with a 25-degree spot beam pattern. Its 6000K color temperature ensures clear, daylight-like illumination, making it ideal for driving, work, and recreational use.

Constructed with a durable die-cast aluminum housing in black, the HE-DL1 is designed to withstand harsh environments and rough handling. Its PC lens material offers impact resistance, while the stainless steel hardware ensures long-lasting reliability. The integrated epoxy-encapsulated electronics provide protection against moisture and dust, conforming to an IP67 rating for water and dust resistance. The mounting bracket is finished with a black powder coat, facilitating easy installation on various vehicles and structures.

Operating within a wide voltage range of 10-30V DC, this driving light consumes only 0.9 amps at 13.8 volts, making it energy-efficient for extended use. It features reverse polarity protection, safeguarding the unit from electrical mishaps. Designed for extreme temperatures, it functions reliably from -40°C to +60°C, ensuring consistent performance in diverse climates. Whether used for off-road adventures, work sites, or auxiliary lighting, the HE-DL1 delivers robust illumination and dependable operation in demanding conditions.

Features:

• Input Voltage: 10-30V DC for versatile vehicle compatibility

• Wattage: 18W with 6 high-efficiency OSRAM LEDs

• Raw Lumens: 1440 for bright, focused illumination

• Color Temperature: 6000K for daylight-like clarity

• Beam Pattern: 25-degree spot for long-distance visibility

• Housing Material: Die-cast aluminum with black finish for durability

• Lens Material: Impact-resistant polycarbonate

• Mounting Bracket: Black powder-coated steel for secure installation

• Electronics: Integrated epoxy encapsulation for moisture and dust protection

• Hardware: Stainless Steel 316 for corrosion resistance

• Operating Temperature: -40°C to +60°C for reliable performance in extreme climates

• Current Consumption: 0.9 amps at 13.8 volts for efficient power use

• IP Rating: IP67 for water and dust resistance

• Protections: Reverse polarity safeguard to prevent electrical damage
