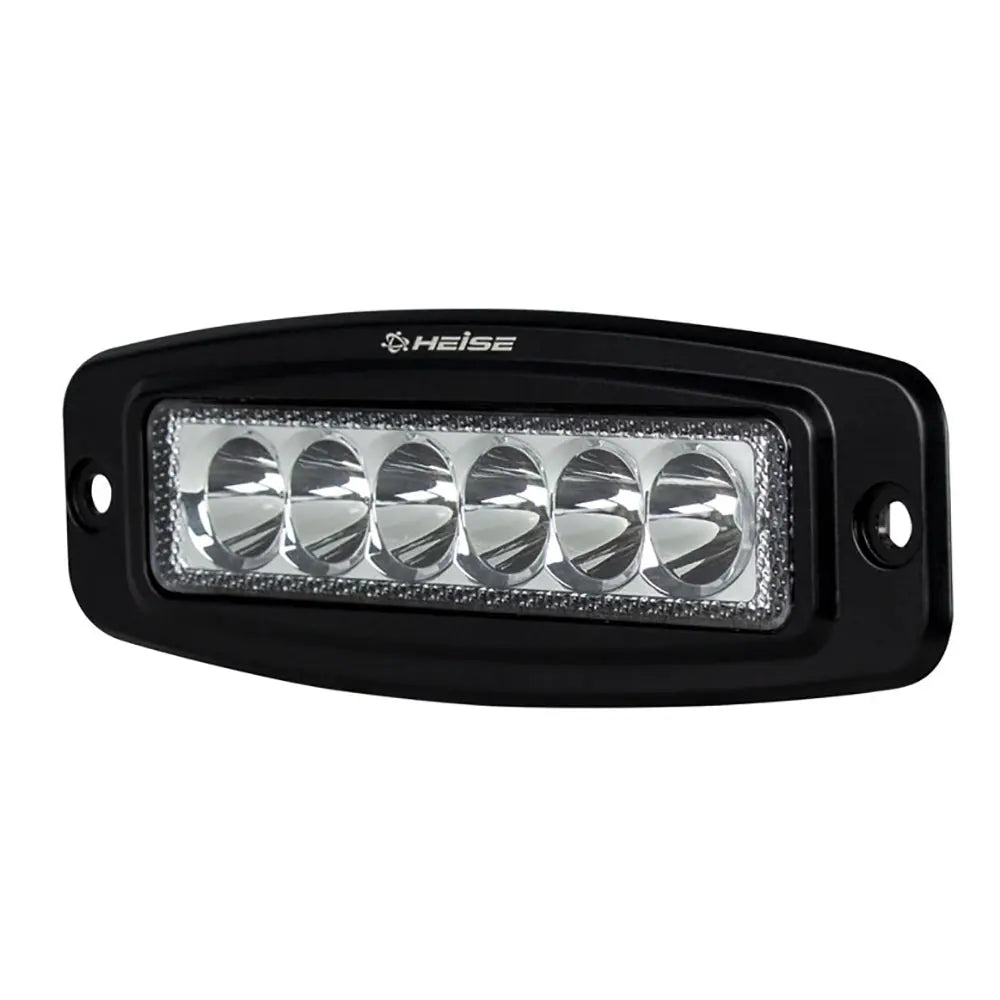

HEISE LED Lighting Systems HE-FMDL1 6 LED Single Row Flush Mount Driving Light

6 LED Single Row Driving Light - Flush Mount

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3WOSRAMLEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-FMDL1 provides high-performance illumination with a sleek flush mount design, ideal for trucks and off-road vehicles. Featuring six 3W Osram LEDs, this driving light delivers a powerful 1,440 raw lumens and a focused 25-degree spot beam pattern, ensuring optimal visibility in challenging conditions. Its 6000K color temperature produces a bright, white light that enhances road clarity and safety during night drives or adverse weather. Constructed with a durable die-cast aluminum housing in black, the light is built to withstand harsh environments and rough handling. The polycarbonate lens offers excellent impact resistance, while the stainless steel mounting brackets and hardware ensure secure installation and long-lasting performance. The integrated epoxy encapsulated electronics provide reliable operation across a wide temperature range from -40°C to +60°C, making it suitable for various climates. With an IP67 rating, the light is protected against dust and water ingress, ensuring consistent performance in wet or dusty conditions. The light consumes approximately 0.9 amps at 13.8 volts, making it energy-efficient while delivering intense illumination. Its reverse polarity protection safeguards against electrical mishaps, and the included gasket and cut-out template simplify installation. Whether used for off-road adventures or enhancing vehicle visibility, this LED driving light from HEISE LED Lighting Systems offers durability, brightness, and ease of installation for demanding applications.

Features:

• Input Voltage: 10-30V DC for versatile vehicle compatibility

• Wattage: 18W with six 3W Osram LEDs for powerful illumination

• Raw Lumens: 1440 for bright, focused light output

• Color Temperature: 6000K providing a bright white light

• Beam Pattern: 25-degree spot for targeted visibility

• Housing Material: Die-cast aluminum for durability

• Housing Color: Black for a sleek appearance

• Lens Material: Polycarbonate for impact resistance

• Mounting Bracket: Stainless steel for secure installation

• Electronics: Integrated epoxy encapsulated for reliability

• Operating Temperature: -40°C to +60°C for all-weather use

• Current Consumption: 0.9 amps at 13.8V for efficiency

• IP67 Rating: Dust-tight and water-resistant

• Protections: Reverse polarity safeguard for electrical protection
