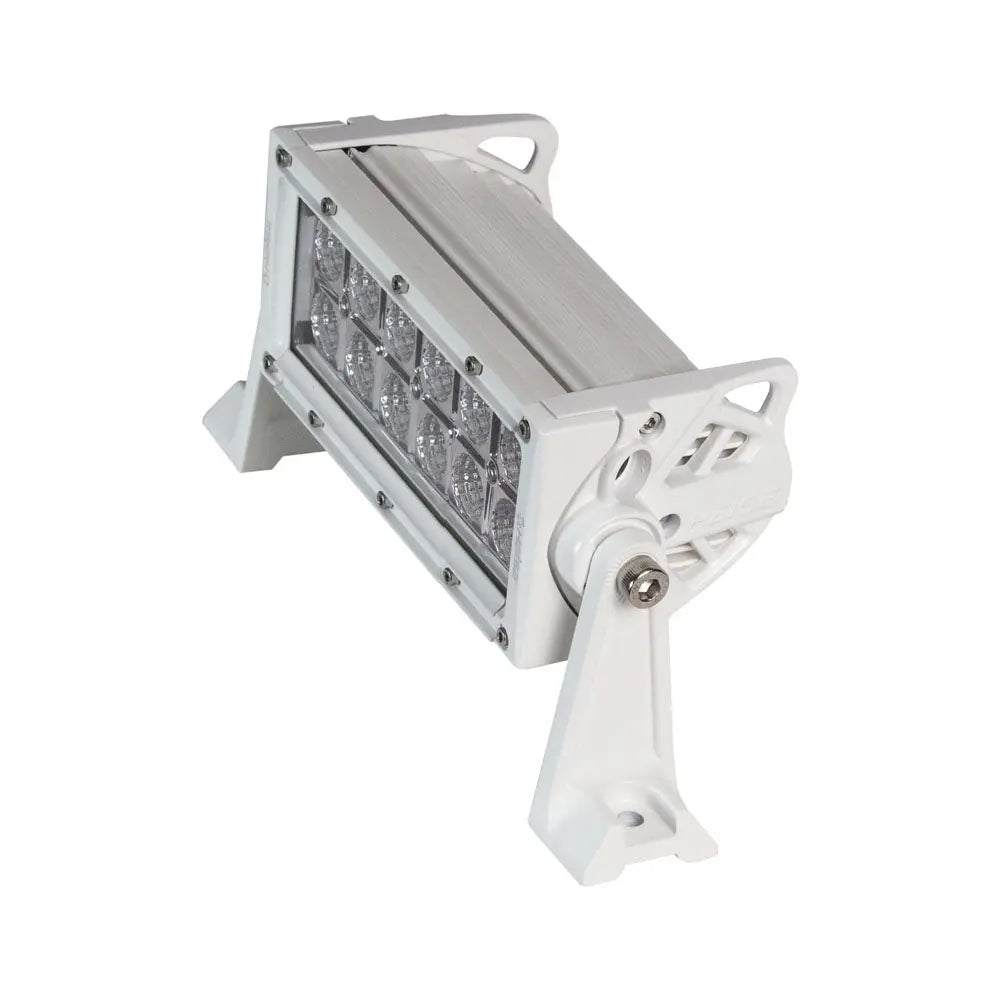

HEISE LED Lighting Systems HE-MDR8 Dual Row Marine LED Light Bar - 8 Inch

Dual Row Marine LED Light Bar - 8"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 36W (12-3WCREELEDs)
• Raw Lumens: 2880
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward 7.25in
• Brackets turned outward 9.5in
• Mounting Bolt Drill .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 1.9 amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-MDR8 dual row marine LED light bar offers powerful illumination with a sleek, durable design ideal for marine applications. Constructed with a die-cast aluminum housing finished in UV-inhibiting white coating, this light bar is built to withstand harsh marine environments. Its integrated epoxy-encapsulated electronics ensure reliable operation, while stainless steel hardware provides corrosion resistance for long-lasting performance. The 8-inch light bar features a versatile combo beam pattern, including flood (90 degrees) and spot (8 degrees) options, delivering a combined raw lumen output of 2880 for enhanced visibility during night navigation or off-road adventures. Operating efficiently within a voltage range of 10 to 30 volts DC and consuming just 1.9 amps at 13.8 volts, this LED light bar is suitable for various power setups. Its IP68 rating confirms protection against water and dust ingress, making it an excellent choice for demanding marine conditions. The mounting brackets are designed for easy installation, with hole dimensions accommodating 0.25-inch bolts and brackets turned inward or outward for flexible positioning. The PC lens material ensures clarity and impact resistance, while the Gore membrane enhances moisture resistance. Whether mounted on a boat, truck, or off-road vehicle, this light bar provides reliable, high-intensity illumination to improve safety and visibility in challenging environments.

Features:

• Input Voltage: 10-30V DC for versatile power compatibility

• Wattage: 36W with 12 high-efficiency Cree LEDs

• Lumens: 2880 raw lumens for bright, widespread illumination

• Color Temperature: 6000K for daylight-like brightness

• Beam Pattern: Combo with flood (90°) and spot (8°) options

• Housing Material: Die-cast aluminum for durability

• Housing Finish: UV-inhibiting white coating

• Lens Material: Impact-resistant polycarbonate

• Mounting Brackets: Die-cast aluminum with adjustable positioning

• Operating Temperature Range: -40°C to +60°C for reliable use in extreme conditions

• Current Consumption: 1.9 amps at 13.8 volts for energy efficiency

• Ingress Protection: IP68 rated for water and dust resistance

• Protections: Reverse polarity protection to prevent electrical damage

• Hardware: Corrosion-resistant stainless steel 316

• Mounting Hole Compatibility: 0.25-inch drill size with flexible bracket orientation
