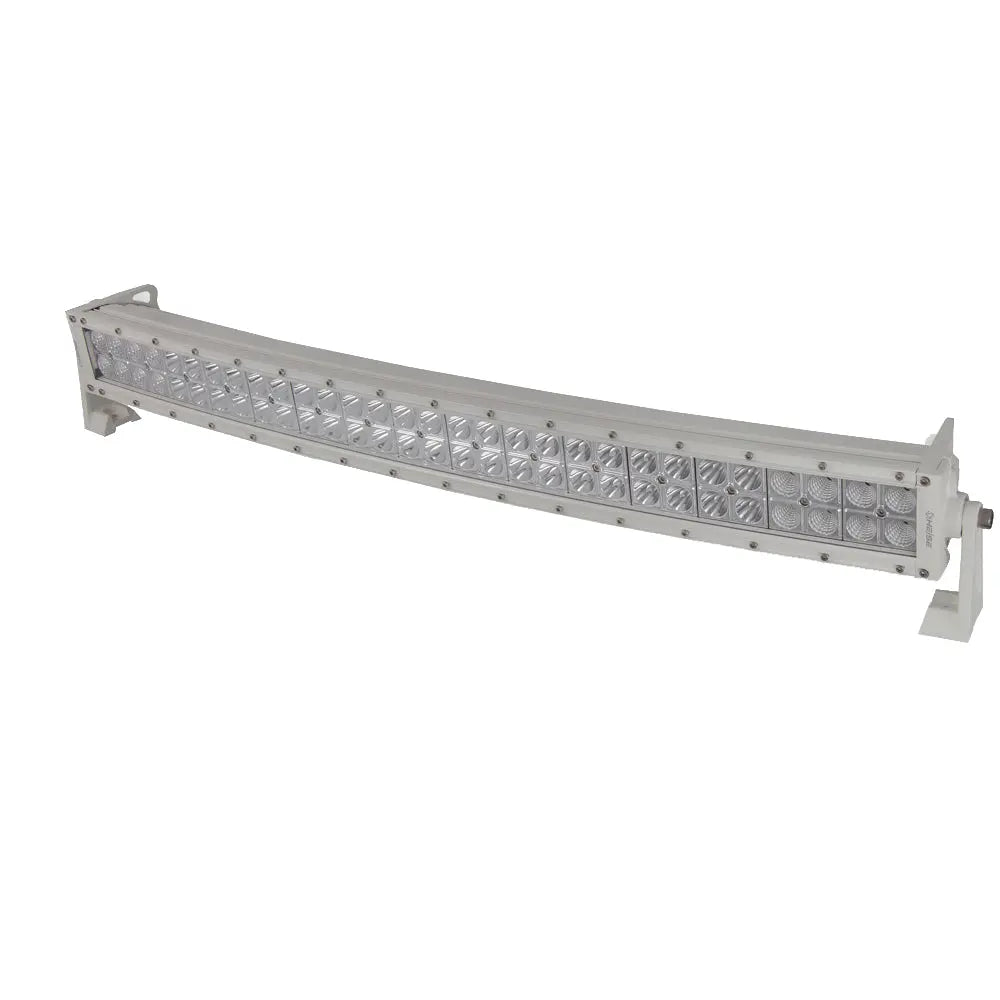

HEISE LED Lighting Systems HE-MDRC30 Dual Row 30-Inch Marine LED Curved Light Bar

Dual Row Marine LED Curved Light Bar - 30"

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W
• (60-3WCREELEDs)
• Raw Lumens: 14400
• LUXat 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward 31 inches
• Brackets Turned Outward 33.5 inches
• Mounting Bolt Drill 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: 40 degrees C to +60 degrees C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your marine or off-road lighting setup with the HEISE LED Lighting Systems HE-MDRC30 dual row 30-inch marine LED curved light bar. Designed for durability and high performance, this light bar features a die-cast aluminum housing with a UV-inhibiting white coating, ensuring resistance to harsh weather conditions and prolonged exposure to sunlight. The integrated Gore membrane provides additional protection against moisture and dust, maintaining optimal functionality in demanding environments. The lens is made of impact-resistant polycarbonate, offering clarity and durability for long-term use.

The LED configuration includes 60 Cree LEDs rated at 3 watts each, delivering an impressive 14,400 raw lumens and a lux intensity of 625 at 10 meters. Its versatile combo beam pattern includes flood (90 degrees) and spot (8 degrees) options, providing broad coverage and focused illumination for nighttime navigation or work tasks. With a power consumption of approximately 180 watts at 10-30V DC input, this light bar offers efficient operation suitable for various power systems.

Installation is straightforward with stainless steel hardware and a die-cast aluminum mounting bracket, capable of accommodating different mounting angles. The light bar measures about 3 inches in height and 3.5 inches in depth, with brackets adjustable from 31 to 33.5 inches. It is rated IP67, ensuring protection against dust and water ingress, and includes reverse polarity protection for added safety. The electronics are epoxy encapsulated for longevity, making this light bar a reliable choice for marine vessels, trucks, or off-road vehicles.

Note that this product may contain chemicals known to cause reproductive harm, as detailed by California Proposition 65. For more information, visit P65Warnings.ca.gov.

Features:

• Input Voltage: 10-30V DC for versatile power compatibility

• High lumen output: 14,400 lumens for bright illumination

• Dual beam pattern: Combo, flood (90°), and spot (8°) for versatile lighting

• Durable construction: Die-cast aluminum housing with UV-resistant coating

• Impact-resistant: Polycarbonate lens for long-term durability

• Weatherproof design: IP67 rated for dust and water resistance

• Efficient electronics: Integrated epoxy-encapsulated circuitry with reverse polarity protection

• Easy mounting: Adjustable stainless steel hardware and brackets
