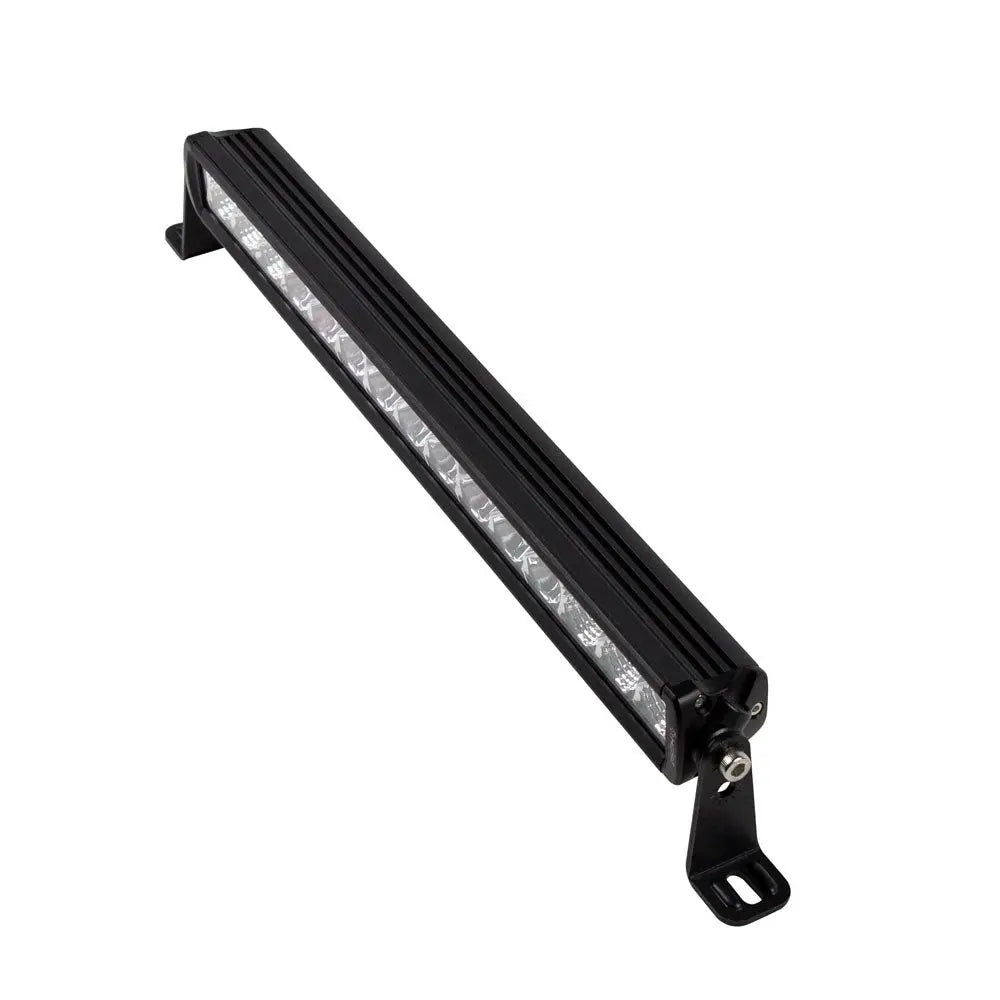

HEISE LED Lighting Systems HE-SL2014 Single Row Slimline LED Light Bar - 20-1/4" for Off-Road and Utility Vehicles

Single Row Slimline LED Light Bar - 20-1/4"

SPECS

• Input Voltage: 1030V DC
• Wattage: 45W (153W OSRAM LEDs)
• Raw Lumens: 3600
• LUX @ 10M: 1280
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Diecast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward 20"
• Brackets turned outward 22"
• Mounting Bolt Drill .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: IntegratedEpoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: 40C to +60C
• Current Consumption: 2.4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-SL2014 is a durable and high-performance single row slimline LED light bar measuring 20-1/4 inches in length, designed to enhance visibility in various outdoor and utility applications. Crafted with a powder-coated aluminum housing in black, this light bar offers excellent resistance to harsh environmental conditions, including corrosion and impacts. Its integrated Gore membrane and PC lens provide protection against moisture and debris, ensuring reliable operation in demanding settings. The light bar features a combination beam pattern with flood and spot options, delivering a maximum raw lumen output of 3600 and a lux rating of 1280 at 10 meters, making it ideal for off-road adventures, work trucks, and emergency vehicles. The 45W wattage powered by 1030V DC input and OSRAM LEDs ensures bright, efficient illumination with a color temperature of 6000K for clear visibility during nighttime use. The mounting system includes diecast aluminum brackets that can be adjusted for side or bottom mounting, with bolt holes accommodating a .25-inch drill size. The compact height and depth of 2 inches each allow for flexible installation without adding unnecessary bulk to your vehicle. Operating within an ambient temperature range of 40°C to +60°C, the light bar maintains consistent performance across various climates. It features a stainless steel 316 hardware construction and epoxy-encapsulated electronics for enhanced durability. With an IP67 ingress protection rating, the HE-SL2014 is resistant to dust and water ingress, and it provides reverse polarity protection for added safety. This versatile LED light bar is suitable for a wide range of applications where reliable, intense illumination is required, ensuring improved safety and visibility in any environment.

Features:

• Length: 20-1/4 inches for versatile installation in various vehicle setups

• High-intensity LEDs: 153W OSRAM LEDs producing 3600 lumens for powerful illumination

• Beam Pattern: Combo with flood (90°) and spot (8°) options for flexible light distribution

• Durable Construction: Powder-coated aluminum housing with Gore membrane and PC lens for weather resistance

• Mounting Flexibility: Adjustable diecast aluminum brackets for side and bottom mounting
