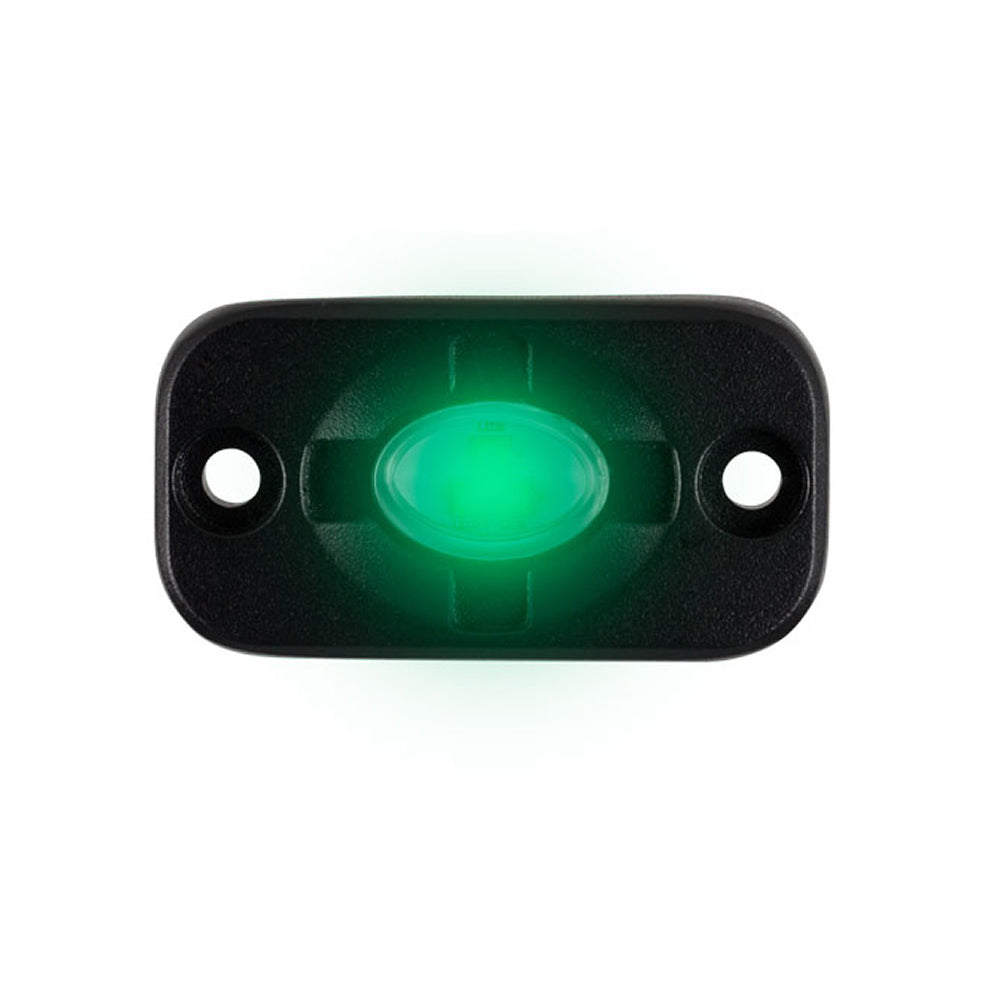

Auxiliary Accent Lighting Pod - 1.5" x 3" - Black/Green
SPECS
Input Voltage: 10-30V DC
Green Color: (3-3WCREELEDs)
Wattage: 9W
Raw Lumens: 1200/720
Beam Pattern: 120deg Flood
CONSTRUCTION
Housing Material: Black Die-cast Aluminum Housing
Lens Material: PC
Mounting: Two Rubber Bases Included
Hardware: Black Screws
OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: .2 amps at 13.8 volts
IP Rating: IP68
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
HEISE LED Lighting Systems HE-TL1G Auxiliary Accent Lighting Pod delivers compact, high-output accent illumination for automotive, marine, powersports, off-road, and utility applications. Its green LED output and wide flood beam help provide broad area lighting for accenting, visibility, equipment identification, and functional illumination. The pod operates on 10–30 volts DC and produces 9 watts of lighting power with up to 1,200 raw lumens, making it suitable for a variety of 12-volt and 24-volt electrical systems.
Construction and Installation
Black die-cast aluminum housing supports durability and effective heat management in demanding environments.
PC lens material provides a protective optical surface designed for dependable everyday use.
Two rubber mounting bases are included to help simplify installation and provide a secure mounting platform.
Black mounting screws are included for a clean, coordinated appearance.
The 120-degree flood beam pattern spreads green light across a wide area for accent or utility lighting applications.
Operation and Protection
The lighting pod operates from -40°F to 140°F, supporting use in a broad range of weather and operating conditions.
Current consumption is approximately 0.2 amps at 13.8 volts.
An IP68 rating helps protect the assembly against dust and water intrusion when properly installed.
The green LED configuration uses three 3-watt Cree LEDs for consistent, efficient illumination.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Features:
Brand and Part Number: HEISE LED Lighting Systems HE-TL1G auxiliary accent lighting pod
LED Color: Green output from three 3-watt Cree LEDs
Input Voltage: 10–30 volts DC for compatibility with common 12-volt and 24-volt systems
Power Output: 9 watts with up to 1,200 raw lumens
Beam Pattern: 120-degree flood beam for broad-area illumination
Housing: Black die-cast aluminum construction
Lens: Protective PC lens material
Mounting: Two rubber mounting bases and black screws included
Operating Temperature: -40°F to 140°F
Current Consumption: Approximately 0.2 amps at 13.8 volts
Ingress Protection: IP68-rated design for dust and water resistance
