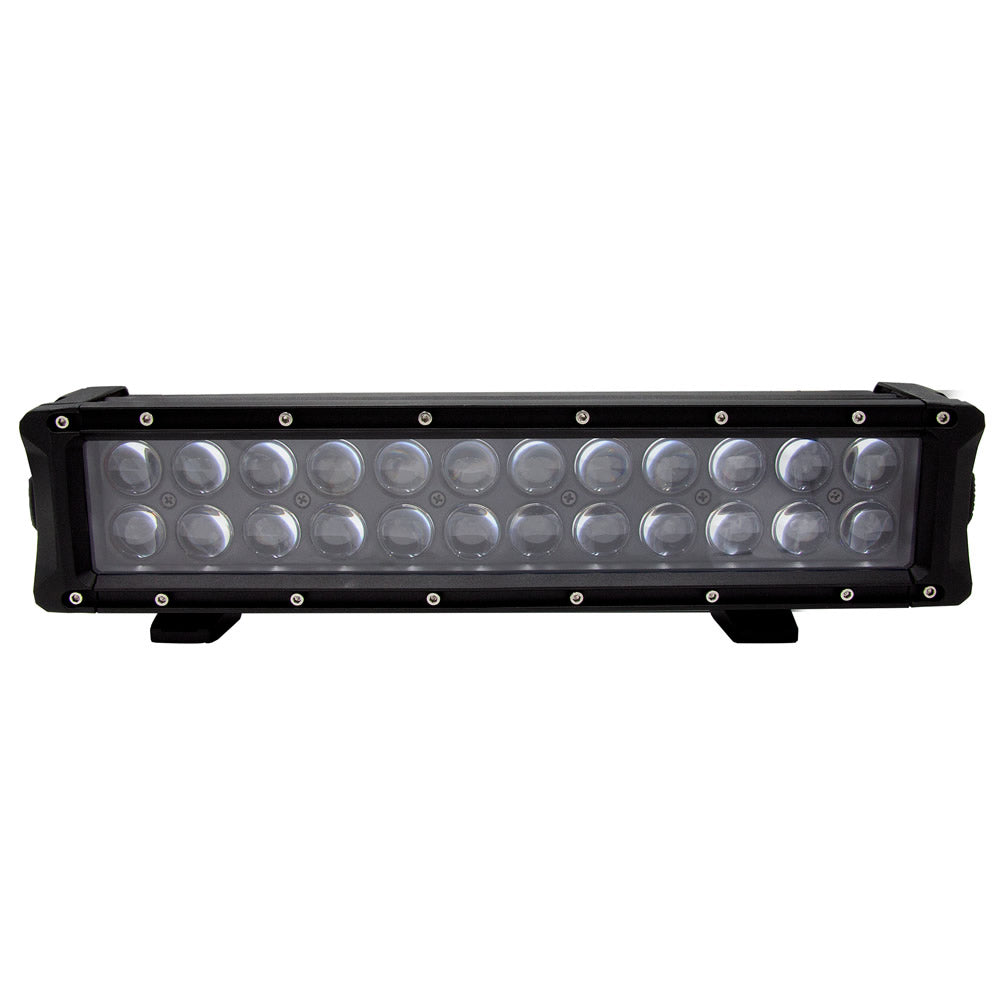

HEISE LED Lighting Systems Infinite Series 14-inch RGB Backlite Dual-Row Light Bar - 24 LEDs

Infinite Series 14" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise's popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 36W
• Raw Lumens: 4560
• LUX @ 10M: 660
• Color Temperature: 6000K
• Beam Pattern: Spot(8)

Construction:

• Housing Material: Diecast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Diecast Aluminum
• Hole Dimensions: Brackets turned inward - 13.25"
• Brackets turned outward - 15.5"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40C to +60C
• Current Consumption: 2.6 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE Infinite Series 14-inch RGB Backlite Dual-Row Light Bar is engineered for durability and versatile lighting control in demanding environments. Featuring 24 high-intensity LEDs, this light bar delivers a raw lumen output of 4,560, ensuring bright illumination for various applications. Its spot beam pattern provides focused lighting, making it ideal for off-road, work, or emergency vehicle setups. The integrated RGB backlighting offers 16 million color options, controllable via a dedicated mobile app, allowing users to customize the lighting to match their vehicle or environment. The RGB functionality requires the separately sold HE-CBRGB controller, which seamlessly synchronizes lighting effects with other compatible HEISE RGB lights for a unified visual experience.
