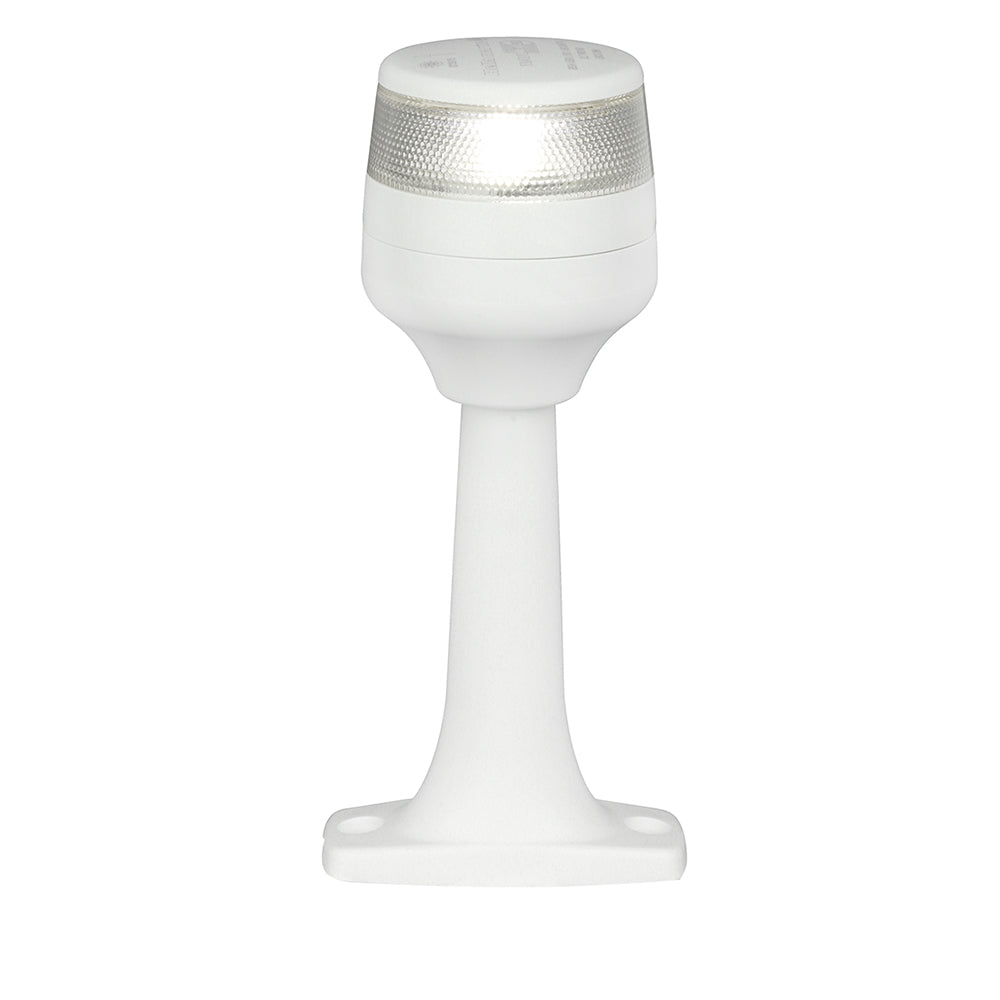

Hella Marine NaviLED 360 Compact All Round Lamp - 2 Nautical Miles - 8 Inch Fixed Mount - White

NaviLED 360 Compact All Round Lamp - 2nm - 8" Fixed Mount - White

Compact LED anchor lamps featuring advanced materials and electronic protection for fit and forget reliability. With less than 1W consumption, NaviLED360 lamps save power on board.

Using only high performance materials the NaviLED 360 Compact series is long term durable in demanding marine environments.

A power consumption of less than 1W power offers exceptional power efficiency for a 2 NM all round anchor lamp.

Each lamp is completely sealed (IP67) and manufactured using Swiss Made Grilamid with unsurpassed properties. Long term stability against UV degradation coupled with high impact and chemical resistant meaning these lamps will not yellow, become embrittled or corrode.

Internationally approved the NaviLED 360 series meets the requirements of COLREG, USCG, ABYC-16, RCD and WHEELMARK. Multivolt circuitry provides constant illumination and circuit protection from 9-33V DC.

Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and backed a 5-year warranty for complete peace of mind.

Specifications:

• Material Description: UV resistant, enhanced impact acrylic lens.
• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with twin core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts
• Power Consumption: < 1.0W
• Degree of Protection: IP 67 - Completely Sealed
• Approvals: IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ

The Hella Marine NaviLED 360 Compact All Round Lamp is an advanced LED navigation light designed for reliable marine use. Featuring a compact 8-inch fixed mount design, this lamp provides 2 nautical miles of visibility, making it suitable for yachts and powerboats. Its innovative construction combines high-performance materials with electronic protection, ensuring long-term durability in demanding marine environments. The NaviLED 360 utilizes Swiss-made Grilamid, which offers exceptional UV resistance, impact strength, and chemical resistance, preventing yellowing, embrittlement, or corrosion over time. Its sealed IP67 rating guarantees complete protection against water ingress and dust, making it ideal for harsh marine conditions. The lamp is energy-efficient, consuming less than 1 watt, which helps reduce power consumption onboard without compromising visibility or compliance. It features multivolt circuitry suitable for 9 to 33 volts DC, with spike and reverse polarity protection, providing safe and consistent operation. Compliant with international standards such as COLREG, USCG, ABYC-16, RCD, and WHEELMARK, the NaviLED 360 is approved for worldwide marine use. Designed and manufactured in New Zealand, it is backed by a 5-year warranty, ensuring peace of mind for professional and recreational mariners alike. The lamp includes a pre-wired twin-core marine cable for straightforward installation, along with a durable impact acrylic lens that maintains clarity and performance over time. Whether used as a primary navigation light or as part of a comprehensive safety system, the Hella Marine NaviLED 360 offers dependable, energy-efficient illumination with a focus on safety and longevity in marine environments.

Features:

• Compact 8-inch fixed mount design suitable for a variety of vessels

• Provides 2 nautical miles of visibility for reliable navigation

• Energy-efficient operation consuming less than 1 watt

• Constructed with Swiss-made Grilamid for UV, impact, and chemical resistance

• Sealed IP67 rating for complete water and dust protection

• Multivolt circuitry compatible with 9-33V DC systems

• Spike protected to +500 volts and reverse polarity protected to -500 volts

• Internationally approved including COLREG, USCG, ABYC-16, RCD, and WHEELMARK

• Pre-wired with marine-grade twin-core cable for easy installation

• Backed by a 5-year warranty for durability and reliability
