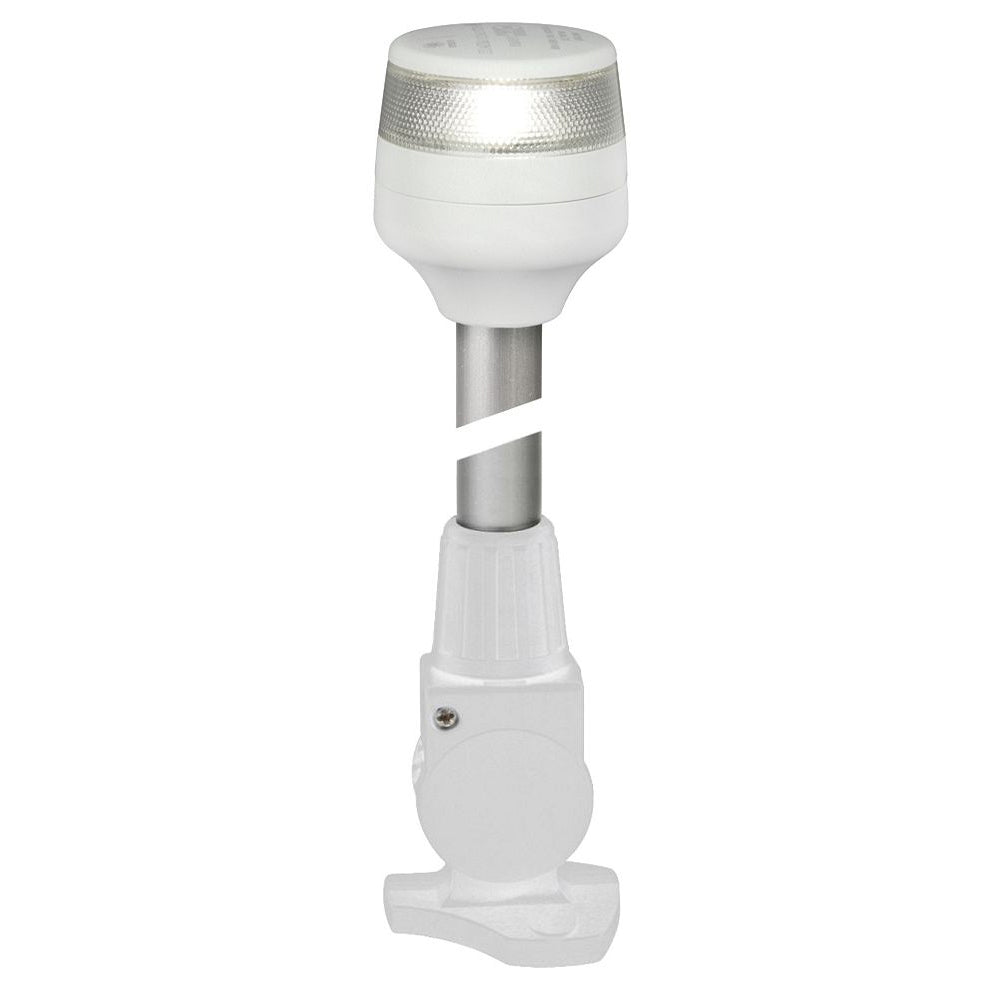

Hella Marine NaviLED 360 Compact All Round Lamp - 2 Nautical Miles - White with 12" Fold Down Base

NaviLED 360 Compact All Round Lamp - 2nm - 12" Fold Down Base - White

Hella marine NaviLED 360 lamps feature single LED efficiency, advanced Multivolt electronics and precision optics for reliable and highly visible all round lighting

Using only high performance materials the NaviLED 360 Compact series is long term durable in demanding marine environments.

A power consumption of less than 1W power offers exceptional power efficiency for a 2 NM all round anchor lamp.

Each lamp is completely sealed (IP67) and manufactured using Swiss Made Grilamid with unsurpassed properties. Long term stability against UV degradation coupled with high impact and chemical resistant meaning these lamps will not yellow, become embrittled or corrode.

Internationally approved the NaviLED 360 series meets the requirements of COLREG, USCG, ABYC-16, RCD and WHEELMARK. Multivolt circuitry provides constant illumination and circuit protection from 9-33V DC.

Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and backed a 5-year warranty for complete peace of mind.

Specifications:

• Material Description: UV resistant, enhanced impact acrylic lens.Anodized aluminium lamp base and pole
• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 1.5M of twin core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts
• Power Consumption: < 1.0W
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250g (including cable)

• Approvals: IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ

The Hella Marine NaviLED 360 Compact All Round Lamp is a high-performance navigation light designed for demanding marine environments. Featuring a single LED, this lamp provides reliable, highly visible all-round lighting with a minimum visible distance of 2 nautical miles, making it suitable for yachts and powerboats. Its advanced Multivolt electronics ensure consistent illumination across a voltage range of 9 to 33 volts DC, offering versatility and dependable operation in various conditions.

Constructed with durable, high-quality materials, the NaviLED 360 Compact series is built to withstand long-term exposure to harsh marine environments. The UV-resistant, impact acrylic lens and anodized aluminum base and pole provide excellent resistance to UV degradation, impact, and corrosion. The fully sealed IP67 design guarantees protection against water and dust ingress, ensuring reliable performance even in challenging conditions. This lamp's low power consumption of less than 1 watt makes it an energy-efficient choice for marine lighting systems.

Designed to meet international standards, including COLREG, USCG, ABYC-16, RCD, and WHEELMARK, the NaviLED 360 series is suitable for compliance with global maritime regulations. Spike and reverse polarity protection enhance the safety and longevity of the lamp, while the pre-wired 1.5-meter marine cable simplifies installation. The lightweight design, weighing approximately 8.8 ounces including the cable, makes it easy to mount and handle. Backed by a 5-year warranty, Hella Marine’s NaviLED 360 offers peace of mind with its Swiss manufacturing quality and proven durability.

• Material: UV resistant impact acrylic lens, anodized aluminum base and pole
• Visibility: 2 nautical miles for yachts and powerboats
• Cable: Pre-wired with 1.5 meters of twin-core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Protection: Spike protected to +500 volts, reverse polarity protected to -500 volts
• Power Consumption: Less than 1 watt
• Durability: IP67 sealed, impact and UV resistant
• Weight: Approximately 8.8 ounces (including cable)
• Approvals: IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ

Features:

• High visibility with a 2 nautical mile range for reliable navigation

• Low power consumption of less than 1 watt for energy efficiency

• Durable construction with UV-resistant impact acrylic lens and anodized aluminum base

• Sealed IP67 design for water and dust protection in harsh marine environments

• Multivolt circuitry compatible with 9-33V DC power supply

• Spike and reverse polarity protection for enhanced safety

• Pre-wired with a 1.5-meter marine cable for easy installation

• Internationally approved for global maritime safety standards

• Backed by a 5-year warranty for long-term peace of mind
