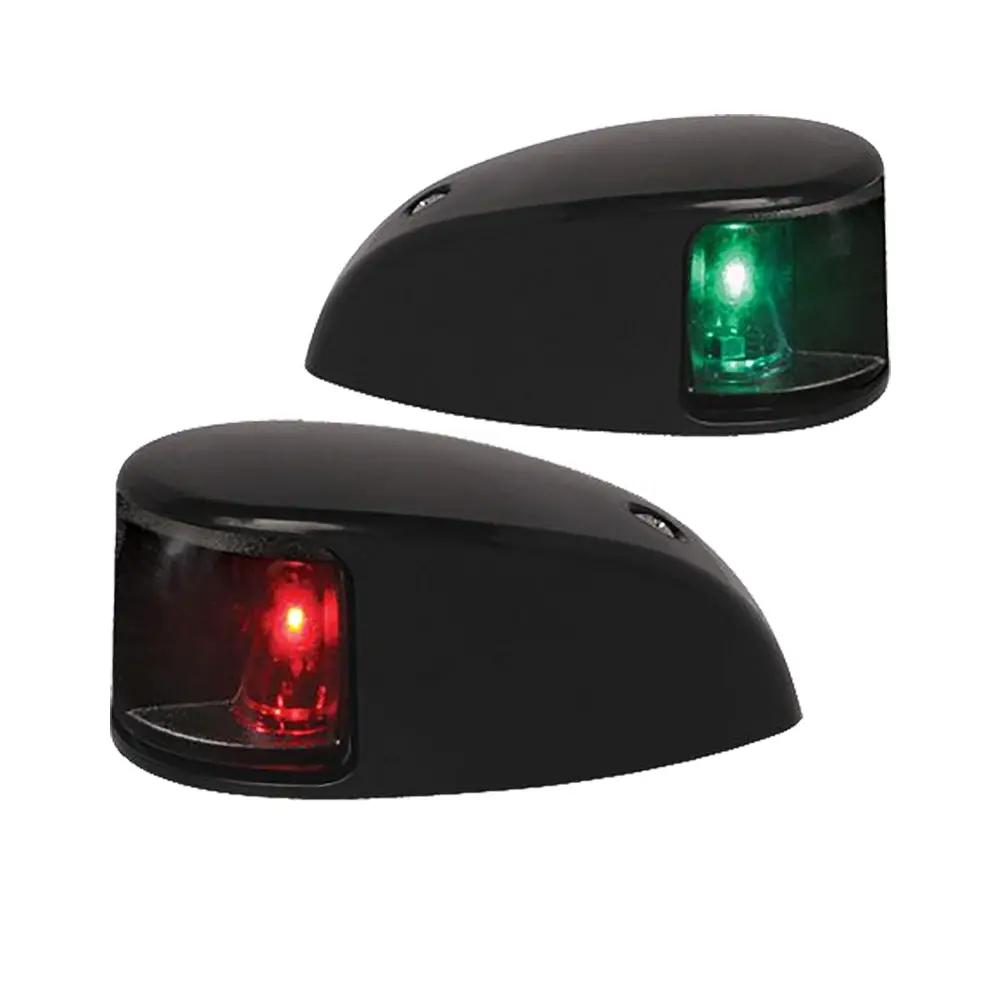

Hella Marine NaviLED Deck Mount Port and Starboard Pair 2nm Clear Lens

NaviLED Deck Mount Port Starboard Pair - 2nm - Clear Lens/Black Housing

Compact deck mount LED navigation lamps.

Attractive, power saving and ultra reliable.

Ultra low current draw

NaviLED lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!

No bulbs, No maintenance, Ultra long service life

Hella marine LED technology has no filaments to break making NaviLED lamps extremely shock and vibration proof for proven reliability and safety in demanding conditions.

Multivolt 8-28V DC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Safe and highly visible

Hella marine optics deliver 100% correct light output and enhanced visibility compared to bulb navigation lamps.

Fully sealed for life. IP 67 certified

Each NaviLED lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.

Specifications:

• Material Description: UV resistant, enhanced impact resistant acrylic lens High impact shroud
• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 500mm of twin core marine cable
• Operating Voltage: Multivolt 8-28V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
• Power Consumption: Port and Starboard less than 2W combined
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 75g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED Deck Mount Port and Starboard Pair offers a compact, reliable solution for navigation lighting on yachts and powerboats. Designed with ultra-low power consumption, these LED lamps draw less than 2 watts combined, making them highly energy-efficient compared to traditional bulb-based navigation lights. The advanced LED technology ensures a long service life with no filament to break, providing exceptional shock and vibration resistance for demanding marine environments. Constructed with durable, UV-resistant acrylic lenses and high-impact housings, the NaviLED lamps are fully sealed to IP67 standards, offering protection against water, dust, and impacts. They feature a pre-wired design with 20 inches of marine-grade cable for easy installation. The lamps operate across a wide voltage range of 8 to 28 volts DC, with spike and reverse polarity protection to ensure consistent performance even under severe electrical fluctuations. Delivering a minimum visible distance of 2 nautical miles, these lamps meet international standards including IMO COLREG 72, RINA, US Coast Guard, ABYC A-16, and Maritime New Zealand. Their optics provide 100% correct light output, offering enhanced visibility and safety on the water. Whether for new builds or replacements, the NaviLED lamps combine efficiency, durability, and compliance for reliable marine navigation lighting.

Features:

• Ultra low current draw: Less than 2W combined for port and starboard lamps

• Long-lasting LED technology: No bulbs, no maintenance, shock and vibration proof

• Multi-volt operation: 8-28V DC with spike and reverse polarity protection

• Durable construction: UV resistant, impact-resistant acrylic lens and high-impact shroud

• Fully sealed: IP67 certified for complete water and dust protection

• Pre-wired: 20-inch marine-grade twin core cable for easy installation

• High visibility: Minimum 2 nautical miles range with accurate light output

• Compliance: Meets IMO COLREG 72, RINA, USCG, ABYC A-16, and Maritime NZ standards
