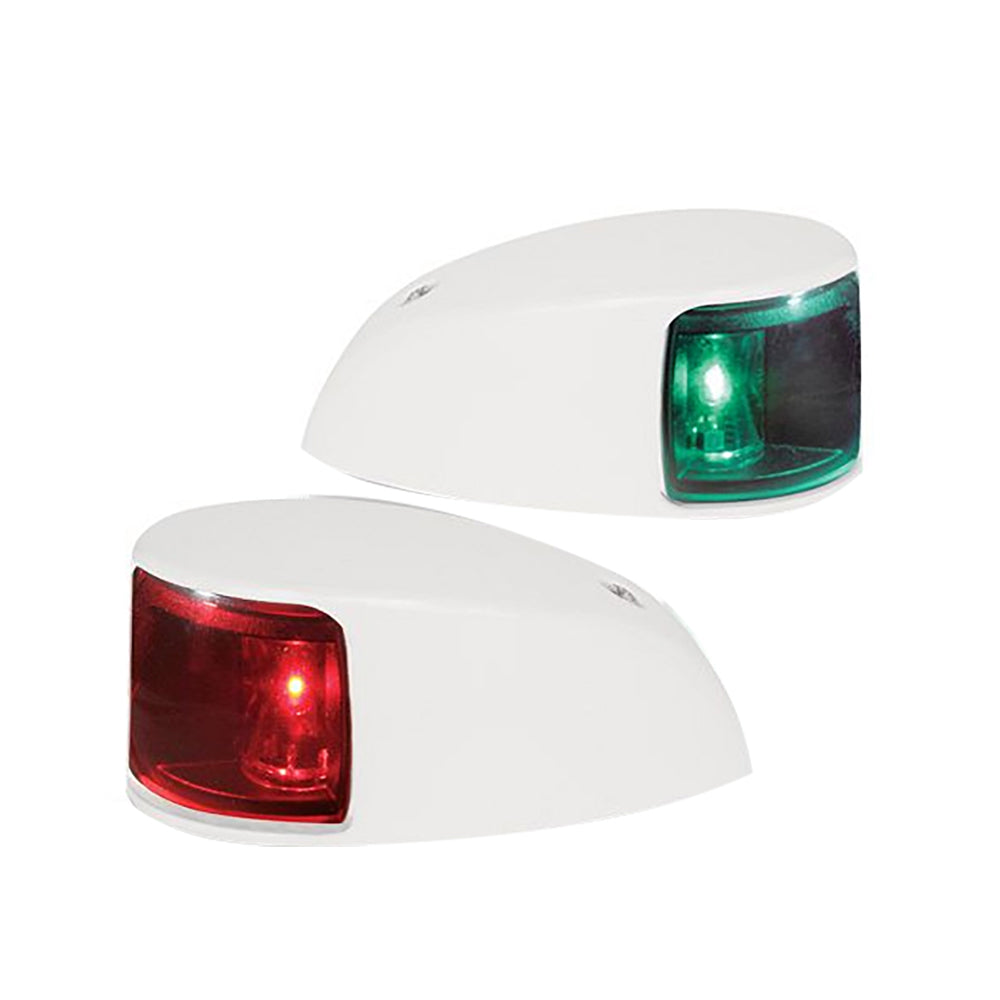

Hella Marine NaviLED Deck Mount Port & Starboard Pair - 2 Nautical Miles Range with Colored Lens and White Housing

NaviLED Deck Mount Port Starboard Pair - 2nm - Colored Lens/White Housing

Compact deck mount LED navigation lamps.

Attractive, power saving and ultra reliable.

Ultra low current draw

NaviLED lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!

No bulbs, No maintenance, Ultra long service life

Hella marine LED technology has no filaments to break making NaviLED lamps extremely shock and vibration proof for proven reliability and safety in demanding conditions.

Multivolt 8-28V DC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Safe and highly visible

Hella marine optics deliver 100% correct light output and enhanced visibility compared to bulb navigation lamps.

Fully sealed for life. IP 67 certified

Each NaviLED lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.

Specifications:

• Material Description: UV resistant, enhanced impact resistant acrylic lens High impact shroud
• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 500mm of twin core marine cable
• Operating Voltage: Multivolt 8-28V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
• Power Consumption: Port and Starboard less than 2W combined
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 75g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED Deck Mount Port & Starboard Pair offers an efficient and reliable solution for navigation lighting on yachts and powerboats. Designed with compact dimensions, these LED lamps are ideal for space-constrained installations while delivering high visibility. Featuring a power consumption of less than 2 watts combined, they significantly reduce energy use compared to traditional bulb-based navigation lamps, making them an energy-efficient choice for marine vessels.
Hella Marine’s advanced LED technology eliminates filaments, making the NaviLED lamps resistant to shocks and vibrations commonly encountered at sea. This ensures long-term durability and safety without the need for bulb replacements or maintenance. The lamps are fully sealed, with an IP67 rating, protecting against water ingress and harsh environmental conditions. Constructed from UV-resistant, impact-resistant acrylic lenses and high-impact housings, they are built to withstand the rigors of marine use.
The NaviLED lamps operate on a multivolt system (8-28V DC), providing reliable illumination even during voltage fluctuations or low battery scenarios. Integrated electronic protections guard against voltage spikes and reverse polarity, enhancing reliability. The lamps emit a clear, highly visible light capable of reaching a minimum distance of 2 nautical miles, ensuring safety and compliance with maritime regulations. Pre-wired with 20 inches of marine-grade twin core cable, they are ready for straightforward installation. Approved by IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ, these lamps meet rigorous industry standards for safety and performance, making them an excellent choice for professional and recreational vessels alike.

Features:

• Power Efficient: Uses less than 2W combined, significantly reducing power consumption compared to traditional lamps

• Durable Construction: UV resistant, impact-resistant acrylic lens with high-impact shroud for long-lasting performance

• Shock and Vibration Proof: No filaments, making them highly resistant to shocks and vibrations typical in marine environments

• Fully Sealed & Waterproof: IP67 rated, ensures protection against water ingress and harsh weather conditions

• Multivolt Compatibility: Operates reliably on 8-28V DC with spike and reverse polarity protection

• High Visibility: Delivers 2 nautical miles of visibility with precise optics for safe navigation

• Pre-Wired & Ready to Install: Comes with 20 inches of marine-grade twin core cable for easy setup

• Certified Safety & Performance: Complies with IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ standards
