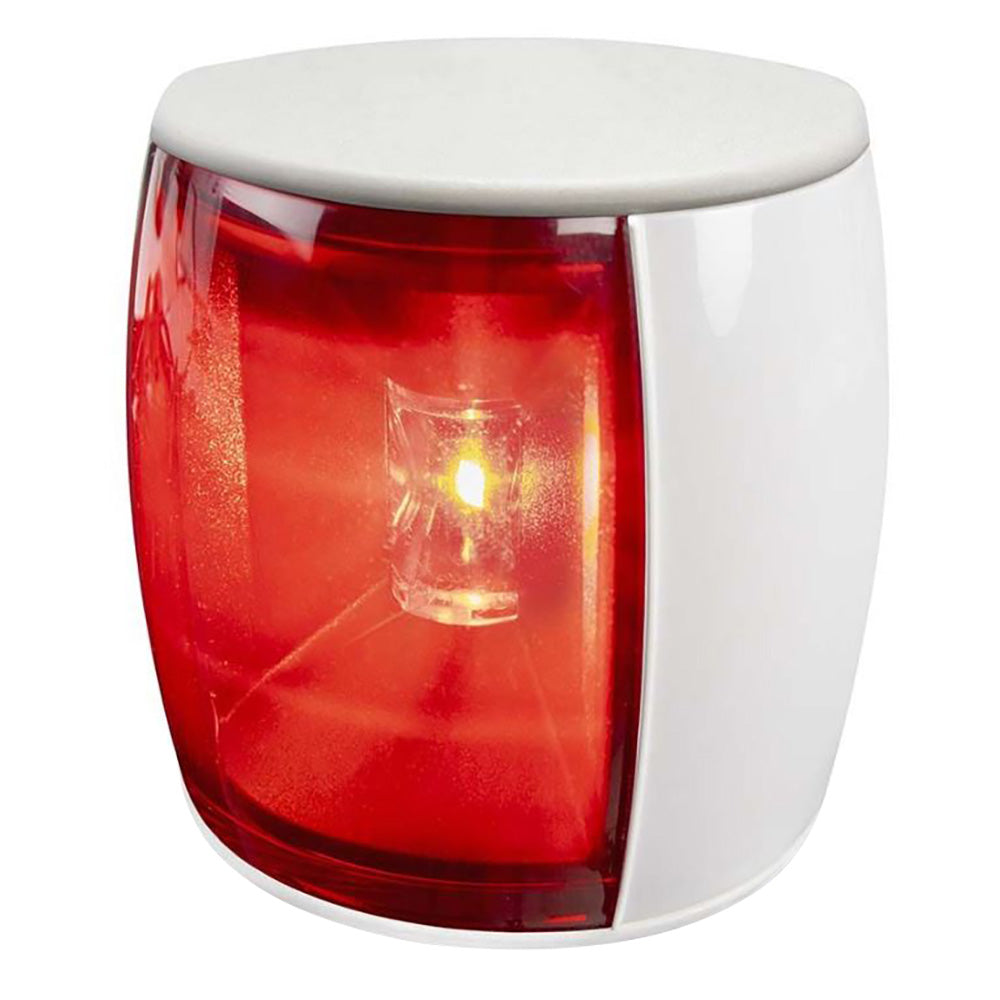

Hella Marine NaviLED PRO Port Navigation Lamp - 2 Nautical Miles - White Shroud

NaviLED PRO Port Navigation Lamp - 2nm - White Shroud

NaviLED PRO Port, Starboard, Masthead and Stern lamps cover vessel requirements up to 50m.

Hella marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation and other electrical equipment on board.

Hella marine lamps are rated at IP67 and completely sealed. UV from the sun, corrosive salt air and constant vibration: these lamps are impervious to the marine environment.

Ultra low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32VDC.

Made in New Zealand and fully supported by Hella marines 5 year warranty, for complete peace of mind

Features:

• 2 NM Visibility
• IMO COL REG 72
• USCG
• ABYC C-5 Compliant
• Maritime NZ
• LED
• 12/24V Multivolt
• IP67 Completely Sealed
• UV Resistant
• 5-Year Warranty

Specifications:

• Material Description: High-impact and UV-resistant acrylic
• Minimum Visible Distance: 3 nautical miles (yachts and powerboats)
• Cable: 2.5 meters of tinned marine cable
• Operating Voltage: Multivolt 933V DC for 12 / 24V DC applications
• Voltage Protection: Spike protected to +500 volts (reverse polarity protected to -500 volts)
• Power Consumption: <2W (0.17A@12V / 0.09A@ 24V DC)
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250g (including cable)
• Compliance: IMO Col Reg 72, USCG, ABYC C-5, RCM, Maritime NZ

The Hella Marine NaviLED PRO Port Navigation Lamp is designed to meet the rigorous standards of maritime navigation lighting, providing reliable visibility up to 2 nautical miles for vessels up to 50 meters in length. Crafted with high-impact and UV-resistant acrylic, this lamp withstands the harsh marine environment, including salt air, UV exposure, and constant vibration, ensuring long-term durability. Fully sealed with an IP67 rating, it is impervious to dust and water, making it suitable for the most demanding conditions on the water. The lamp features an efficient LED light source that consumes less than 2 watts, delivering precise light intensity across a wide voltage range from 9V to 32V DC. Its multivolt capability ensures compatibility with various power systems, and spike and reverse polarity protection further enhance reliability during operation.

Made in New Zealand, the NaviLED PRO Port Navigation Lamp complies with international maritime standards including IMO COL REG 72, USCG, ABYC C-5, and Maritime NZ. It includes a 2.5-meter tinned marine cable for easy installation and offers a weight of approximately 0.25 pounds for lightweight handling. The lamp's design incorporates features that prevent electrical interference with onboard radios and navigation equipment, supporting safe and accurate navigation at night. Backed by Hella Marine’s 5-year warranty, this navigation lamp provides peace of mind along with high performance, making it an essential component for commercial and recreational vessels alike.

Features:

• Visibility up to 2 nautical miles for effective night navigation

• Complies with IMO COL REG 72, USCG, ABYC C-5, and Maritime NZ standards

• IP67 completely sealed and UV resistant for durability in marine environments

• High-impact, UV-resistant acrylic construction for long-term use

• Multivolt operation from 9V to 32V DC with spike and reverse polarity protection

• Low power consumption at less than 2W for energy efficiency

• Includes 2.5 meters of tinned marine cable for installation

• Lightweight design at approximately 0.25 pounds

• Designed to prevent electrical interference with onboard communication and navigation systems

• Backed by a 5-year warranty for reliable performance
