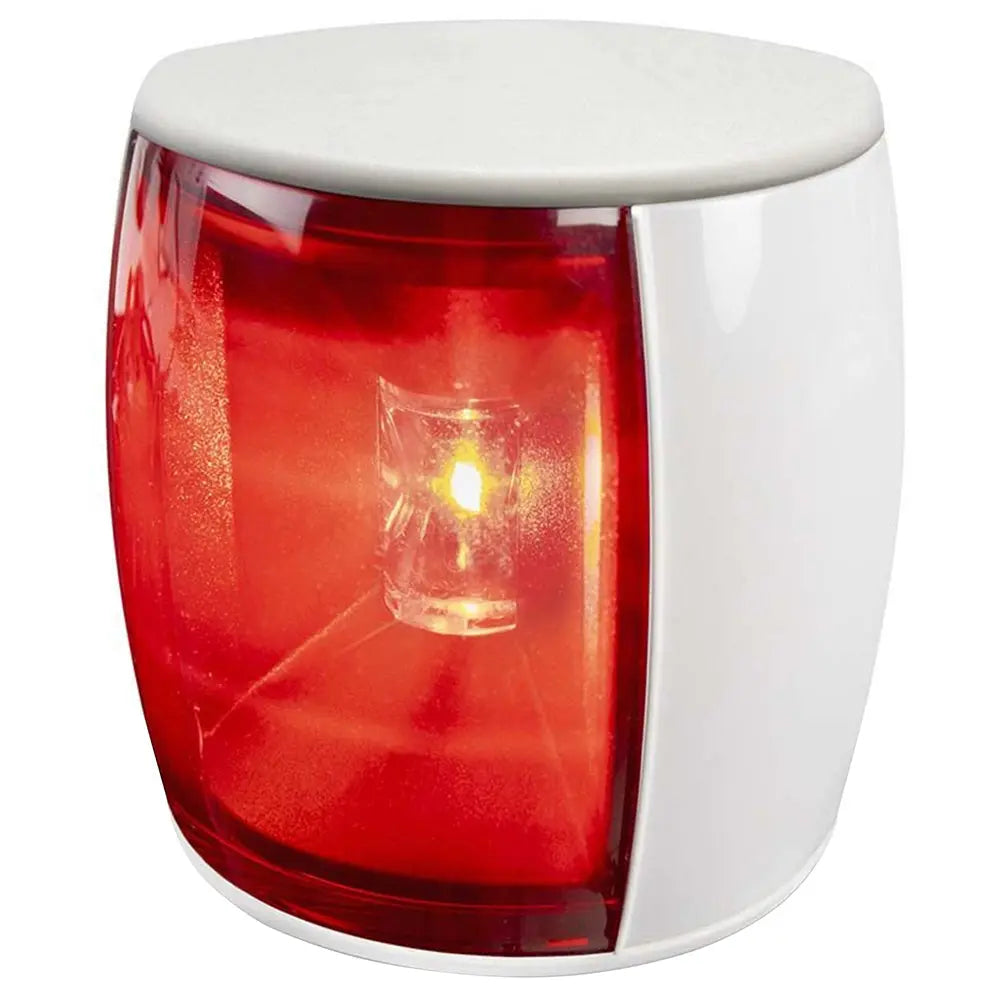

Hella Marine NaviLED PRO Port Navigation Lamp with White Shroud and Red Lens - 3 Nautical Miles Visibility

NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NM

This NaviLED PRO port lamp covers vessel requirements over 50m. NaviLEDPRO lamps are proven worldwide on commercial, military, and recreational vessels.

Ultra-Low Current Draw

This port lamp consumes less than 3.2W combined.

No bulbs, No Maintenance, Ultra Long Service Life

Hella marine LED technology has no filaments to break, making NaviLEDPRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.

Multivolt 9-33V DC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Fully Sealed for Life. IP 67 Certified

Each NaviLEDPRO lamp is a completely sealed unit. High-impact housings ensure durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid lenses to offer superior strength in extreme conditions.

Pre-wired with 2.5M of Twin-Core Marine Cable

High-quality cable assemblies for time-saving, completely sealed installations.

Specifications:

• Lamp Type: Port navigation
• Lens Color: Red
• Housing Color: White
• Material Description: High impact resistant acrylic lens
• Minimum Visible Distance: 3 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 2.5M of twin-core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
• Power Consumption: Less than 3.2W combined.
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED PRO port navigation lamp is designed for vessels over 50 meters, providing reliable and compliant navigation lighting in demanding marine environments. Featuring a durable white shroud and a high-visibility red lens, this lamp ensures clear identification of port sides during navigation. Built with advanced LED technology, it offers a minimum visible distance of 3 nautical miles, making it suitable for both commercial and recreational vessels. Its robust construction and high-impact acrylic lens deliver exceptional durability against waves, impacts, and harsh weather conditions. The fully sealed IP67-rated housing guarantees a lifetime of maintenance-free operation, resistant to water ingress and environmental stressors. Pre-wired with a 2.5-meter twin-core marine cable, installation is straightforward, saving time and ensuring a secure connection. Operating at multivolt 9-33V DC, the NaviLED PRO is spike and reverse polarity protected, maintaining consistent illumination even under voltage fluctuations. Its ultra-low power consumption of less than 3.2W makes it energy-efficient for extended use. Approved by IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ, this navigation lamp meets stringent international safety standards. Ideal for vessels requiring dependable, long-lasting navigation lighting, the Hella Marine NaviLED PRO combines advanced technology with rugged durability to enhance maritime safety and compliance.

Features:

• Designed for vessels over 50 meters, providing clear visibility over 3 nautical miles

• Durable white housing with red lens for effective port side signaling

• Advanced LED technology offers ultra-low current draw of less than 3.2W

• No bulbs, no maintenance required, with an ultra-long service life

• Shock and vibration-proof construction with high-impact acrylic lens

• Fully sealed IP67-rated housing ensures waterproof and dustproof protection

• Pre-wired with 2.5 meters of twin-core marine cable for quick installation

• Multivolt operation from 9V to 33V DC with spike and reverse polarity protection

• Certified by IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ for safety and compliance
