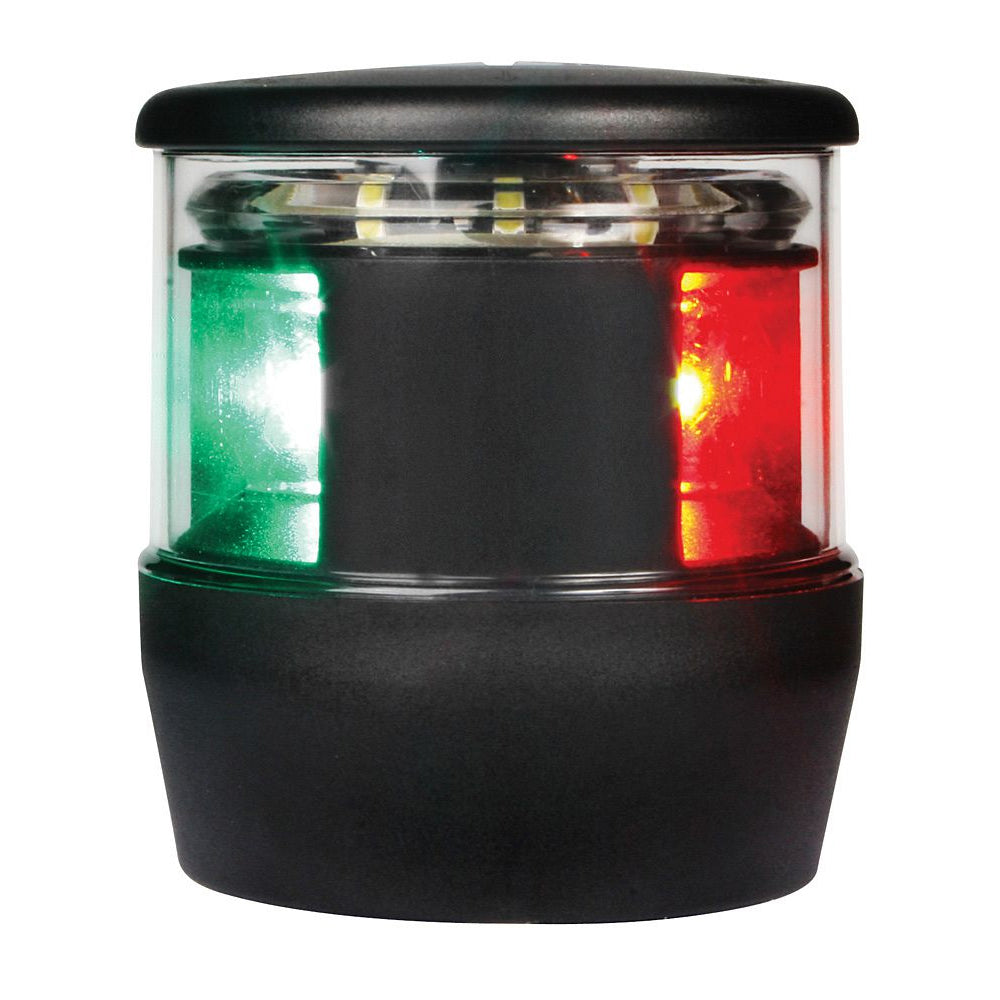

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2 nautical miles

NaviLED TRIO Tri Color Navigation Lamp - 2nm

LED Tri Color with Anchor navigation lamp.

Advanced materials and state of the art technology for reliability, efficiency and safety at sea.

Ultra low current draw. Power saving on board.

Port, Starboard and Stern draws less than 3.5W

Fully sealed for life. IP 67 Certified.

Completely sealed, impervious to saltwater and contaminants

Safe and highly visible.

Hella marine lens and optics technology ensures ultra precise horizontal and vertical cut-off angles, clearly indicating a vessels movement and heading

Ultra durable materials. Ultra long service life.

Advanced heavy duty Grilamid lens and housing, plus proven Hella marine LED technology combines to provide outstanding resistance to vibration, impact and shock loads. Relentless test programs have helped lift product reliability to new standards for ongoing performance and safety in the most demanding conditions.

Unique installation and removal system.

The NaviLEDTrio installs on a unique 316 stainless steel mounting shaft for a secure attachment and reliable electrical connections.

Specifications:

• Material Description: UV resistant, high impact nylon
• Lens Material: UV resistant, ultra heavy duty Grilamid lens
• Mounting Shaft: 316 stainless steel
• Minimum Visible Distance: 2 Nautical Miles (Yacht)
• Cable: Pre-wired with 400mm of triple core marine cable
• Operating Voltage: Multivolt 9-33V DC (early version 8-28V DC)
• Voltage Protection: Spike protected to +500 volts Reverse polarity protected to -700 volts
• Power Consumption: Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 400g (including cable)
• Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED TRIO Tri Color Navigation Lamp offers reliable and efficient navigation lighting designed for demanding maritime environments. Featuring advanced LED technology, this tri-color lamp provides port, starboard, and stern navigation signals with a power consumption of less than 3.5W per color, ensuring energy efficiency and reduced power draw on board. Its fully sealed IP67 design makes it impervious to saltwater, dust, and other contaminants, ensuring long-lasting performance in harsh marine conditions. Crafted from UV-resistant, high-impact nylon and heavy-duty Grilamid lens material, the NaviLED TRIO is built for durability, resisting vibration, shocks, and impacts, making it ideal for yachts and commercial vessels alike.

Features:

• LED tri-color navigation lamp with 2 nautical miles visibility

• Ultra-low power consumption: Less than 3.5W per color

• Fully sealed IP67 waterproof and dustproof design

• Constructed from UV-resistant, high-impact nylon and Grilamid lens

• Mounting on a secure 316 stainless steel shaft for easy installation

• Pre-wired with 400mm marine-grade triple-core cable

• Multivolt operation from 9 to 33V DC with spike and reverse polarity protection

• Advanced lens and optics technology for precise navigation signals

• Certified by international safety and maritime standards
