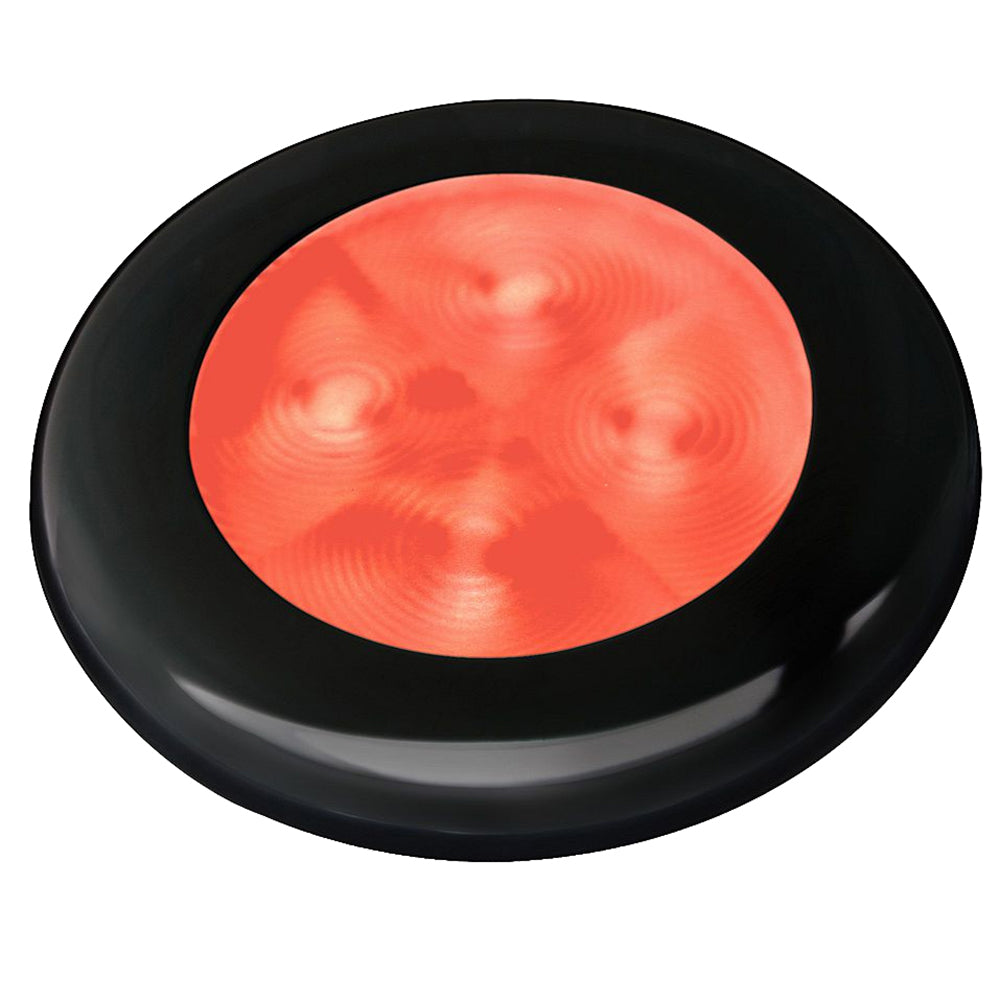

Hella Marine Slim Line LED Courtesy Lamp - Red LED with Black Bezel - 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Red LED - Black Plastic Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

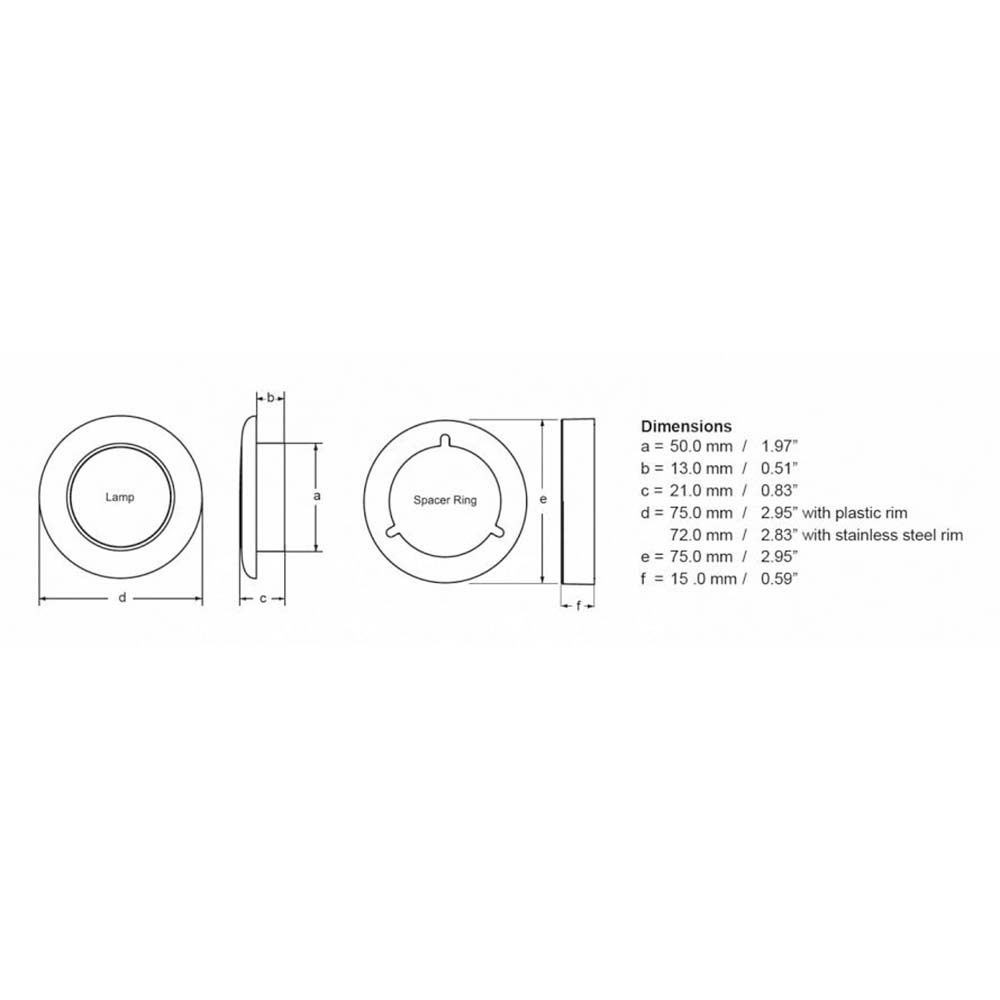

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic. 316 stainless steel
• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)

The Hella Marine Slim Line LED Courtesy Lamp offers a sleek, energy-efficient lighting solution for both interior and exterior applications. Designed with advanced lens technology, this lamp provides an even and soft light spread that is over three times brighter than standard white LED courtesy lamps, reducing eye strain and glare. Its UV-resistant impact acrylic lens and UV-resistant plastic rim ensure durability in harsh marine environments, while the stainless steel and black plastic bezels enhance its aesthetic appeal and corrosion resistance.
Each lamp is fully sealed with an IP67 rating, making it highly resistant to water, dust, shock, impact, and vibrations—ideal for demanding marine conditions. The low power consumption of less than 0.5W and minimal heat emission allow safe installation in lightweight materials without the risk of heat damage. The included surface mounting ring, stainless steel screws, and compatible dimmer option make installation versatile and customizable to your needs.
With a pre-wired 4-inch marine cable and operating voltage options of 12V or 24V DC, this courtesy lamp seamlessly integrates into various electrical systems. Its compact weight and robust construction make it suitable for a wide range of marine vessels, offering reliable illumination while conserving energy. Whether used for accent lighting or functional illumination, the Hella Marine Slim Line LED Courtesy Lamp provides a dependable, bright, and durable lighting solution for marine environments.

Features:

• Bright LED illumination: Over three times brighter than standard soft white and warm white courtesy lamps

• Advanced lens technology: Provides cool, even, and glare-free soft light

• Low power consumption: Less than 0.5W, ideal for energy-efficient marine lighting

• Durable construction: UV resistant impact acrylic lens and sealed IP67 rating for water and dust resistance

• Corrosion resistant: UV resistant plastic rim and stainless steel bezel with stainless steel mounting screws

• Versatile installation: Suitable for interior and exterior use with included surface mounting ring

• Pre-wired for easy setup: 4-inch marine cable included with operating voltage options of 12V or 24V DC

• Impact and vibration resistant: Designed to withstand harsh marine conditions

• Optional dimming: Compatible with Hella Marine Dimmer 5XA 998 572-001
