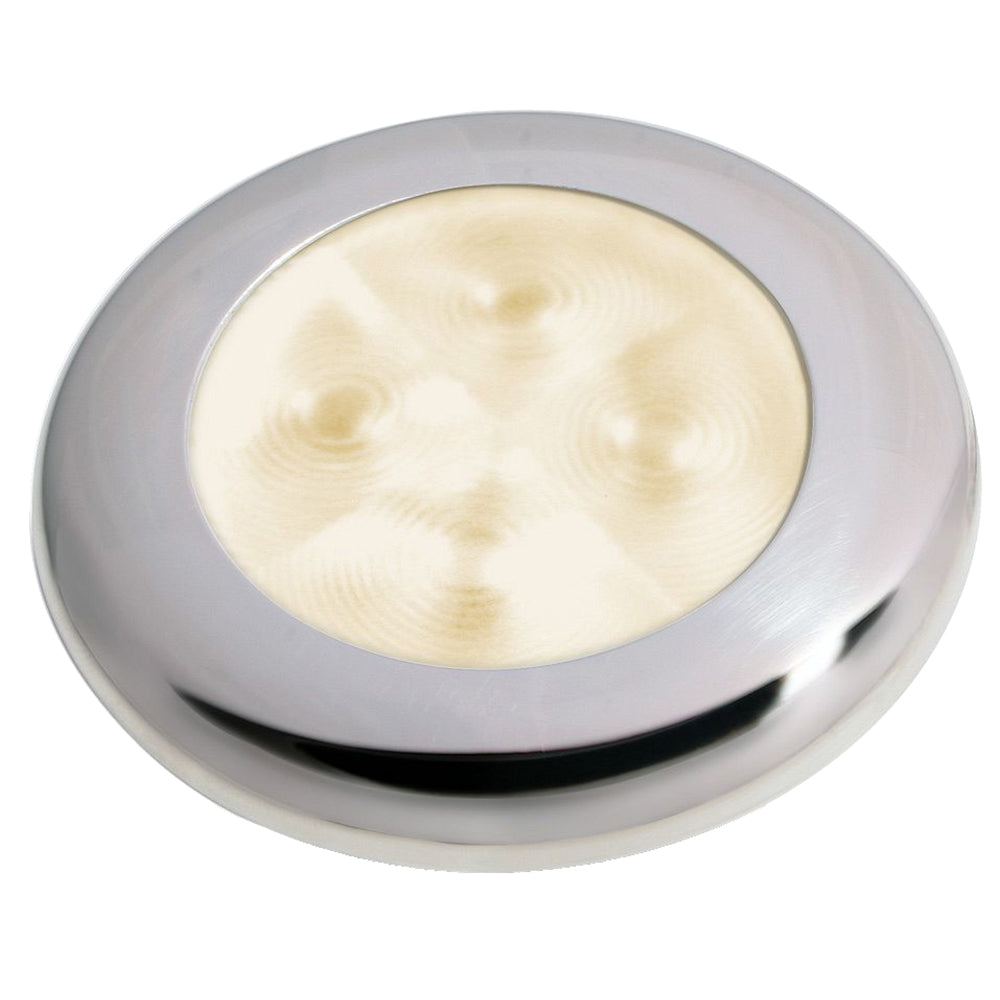

Hella Marine Slim Line LED Courtesy Lamp with Warm White Light - Stainless Steel Bezel, 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Warm White LED - Stainless Steel Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

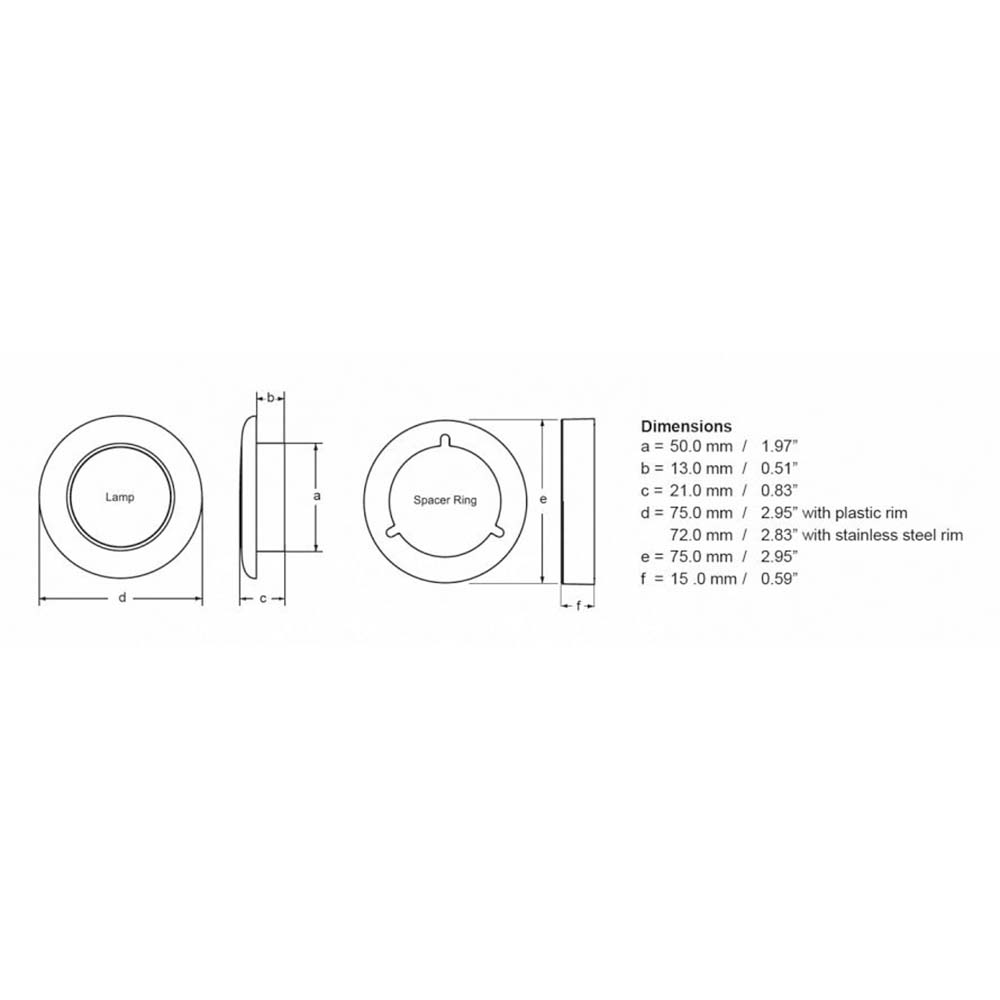

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic. 316 stainless steel
• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)

The Hella Marine Slim Line LED courtesy lamp offers a sleek and energy-efficient lighting solution designed for both interior and exterior marine applications. Featuring an attractive warm white LED illumination, this lamp is over three times brighter than standard soft light white LED courtesy lamps, providing excellent visibility without harsh glare or eye strain. Its advanced lens technology ensures a cool, even spread of light, making it suitable for demanding environments where safety and clarity are paramount. The lamp consumes less than 0.5W of power, significantly reducing energy consumption and heat output, which minimizes risk of damage when installed in lightweight or sensitive materials. Its robust construction includes a UV-resistant impact acrylic lens and a sealed, IP67-rated housing that is highly resistant to shock, impact, and vibration—ideal for marine conditions.

The Hella Marine courtesy lamp is designed for easy installation with a surface mounting ring, stainless steel screws, and options for white or black rims with corresponding spacers. Its low current draw allows for flexible wiring and dimming capabilities when used with the Hella Marine Dimmer 5XA 998 572-001. The lamp is pre-wired with 4.7 inches of marine-grade cable, supporting both 12V and 24V DC systems. Weighing just 1.1 ounces, this durable and reliable LED courtesy lamp enhances the safety and aesthetics of any vessel while offering long-lasting, maintenance-free operation.

Features:

• Enhanced brightness: Over three times brighter than standard soft white LED courtesy lamps

• Warm white LED: Provides a soft, inviting glow suitable for various marine applications

• Advanced lens technology: Ensures uniform, glare-free light distribution

• Low power consumption: Uses less than 0.5W, reducing energy costs and heat generation

• Sealed and durable: IP67 rated, resistant to shock, impact, vibration, and environmental elements

• Flexible installation: Includes surface mounting ring with stainless steel screws and spacers

• Pre-wired: Comes with 4.7 inches of marine-grade cable for easy wiring

• Multi-voltage compatibility: Operates on 12V or 24V DC systems

• Dimmable: Compatible with Hella Marine Dimmer 5XA for adjustable lighting levels

• Corrosion resistant: Features UV-resistant acrylic lens and stainless steel bezel for long-term marine use
