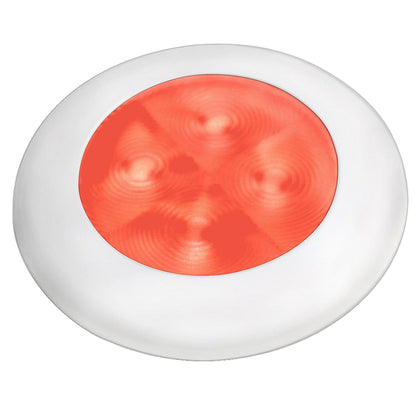

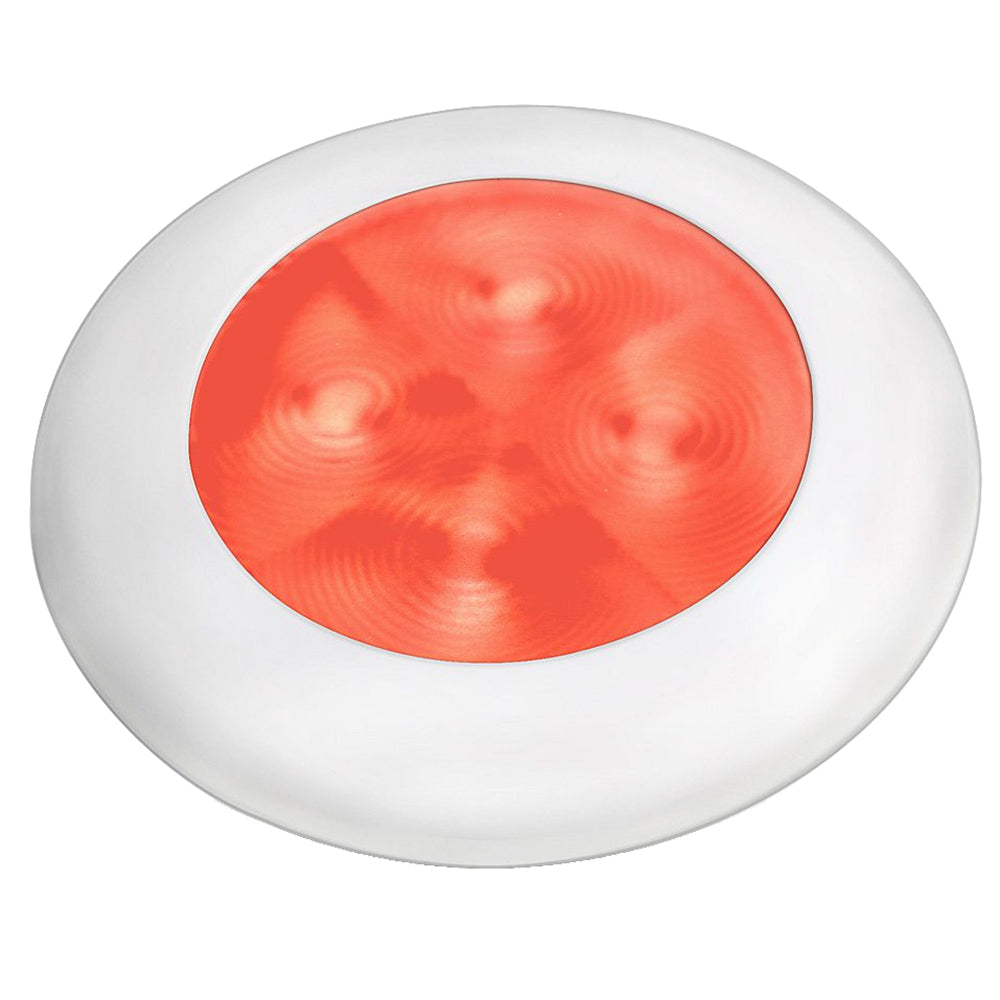

Hella Marine Slim Line LED Enhanced Brightness Round Courtesy Lamp - Red LED, White Plastic Bezel, 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Red LED - White Plastic Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic. 316 stainless steel
• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)

The Hella Marine Slim Line LED Courtesy Lamp offers a sleek and energy-efficient lighting solution for both interior and exterior applications on boats and marine vessels. Designed with advanced lens technology, this round LED lamp provides a cool, even, and glare-free illumination that is over three times brighter than standard soft white LED courtesy lamps. Its bright red LED enhances visibility while consuming less than 0.5W of power, making it a safe choice for installation in lightweight materials where heat from traditional bulbs could cause damage. The lamp's sealed construction ensures it is highly resistant to shock, impact, and vibration, making it ideal for the demanding marine environment. Its durable UV-resistant impact acrylic lens and UV-resistant plastic rim with optional stainless steel bezel ensure longevity and resistance to harsh conditions. The lamp includes a surface mounting ring with stainless steel screws and features pre-wired marine cable connections for straightforward installation. Compatible with 12V DC and 24V DC systems, this courtesy lamp can be dimmed using the Hella Marine Dimmer 5XA 998 572-001, allowing for customizable lighting levels. The IP67 rated design guarantees complete sealing against dust and water ingress, ensuring reliable operation even in wet environments. Whether used for cabin lighting, deck illumination, or emergency signaling, this versatile LED courtesy lamp combines durability, brightness, and energy efficiency in a compact and stylish package.

Features:

• Advanced lens technology provides a cool, even, and glare-free light spread

• Over 3 times brighter than standard white LED courtesy lamps

• Consumes less than 0.5W of power, ensuring energy efficiency and low heat emission

• Sealed IP67 design offers complete protection against dust and water

• Built with UV-resistant impact acrylic lens and UV-resistant plastic rim for durability

• Includes stainless steel mounting screws and surface mounting ring

• Pre-wired with 4-inch marine cable for easy installation

• Compatible with 12V DC and 24V DC electrical systems

• Can be dimmed with compatible Hella Marine Dimmer 5XA 998 572-001

• Shock, impact, and vibration resistant for reliable marine operation
