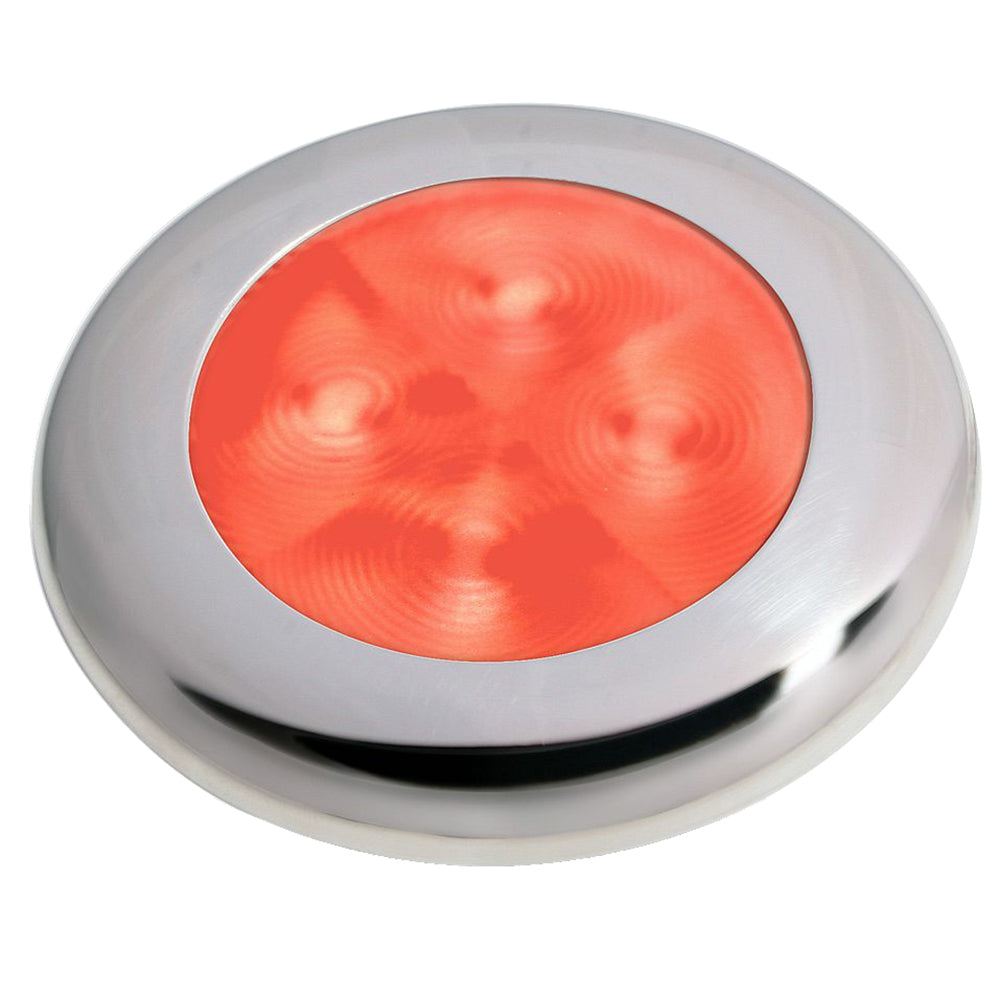

Hella Marine Slim Line LED Enhanced Brightness Round Courtesy Lamp - Red LED with Stainless Steel Bezel - 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Red LED - Stainless Steel Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic. 316 stainless steel
• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)

The Hella Marine Slim Line LED Courtesy Lamp offers a sleek and energy-efficient lighting solution designed for both interior and exterior marine applications. Featuring a vibrant red LED, this lamp provides over three times the brightness of standard soft white or warm white courtesy lamps, ensuring clear visibility in various conditions. Its advanced lens technology ensures a uniform, glare-free light that reduces eye strain, making it ideal for navigation, deck lighting, or interior ambiance. Constructed with a UV-resistant impact acrylic lens and a durable stainless steel bezel, the lamp is built to withstand harsh marine environments, being completely sealed and resistant to shock, impact, and vibrations. Its low power consumption—less than 0.5W—is safe for lightweight materials and helps conserve battery life during extended use. The lamp includes a surface mounting ring with stainless steel screws, and available variants feature either a white or black rim with matching spacers, enabling versatile installation options. Designed for quick wiring with pre-attached marine cable, it supports 12V or 24V DC systems, making it adaptable across a wide range of vessels. The IP67 rating ensures that the lamp is fully sealed against water ingress, providing reliable operation in demanding conditions. Weighing only 50 grams, this courtesy lamp combines safety, efficiency, and durability in a compact form factor, making it an excellent choice for professional marine lighting installations.

Features:

• Vibrant red LED illumination with enhanced brightness for superior visibility

• Advanced lens technology provides a soft, glare-free light spread

• Energy-efficient design consumes less than 0.5W at 12V and 24V

• Durable construction with UV-resistant impact acrylic lens and stainless steel bezel

• Sealed IP67 rating offers complete water and dust protection

• Shock, impact, and vibration resistant for demanding marine environments

• Includes surface mounting ring and stainless steel mounting screws

• Supports 12V DC and 24V DC power systems with pre-wired marine cable

• Compact and lightweight design for easy installation and minimal structural impact

• Compatible with dimming systems via Hella Marine Dimmer 5XA
