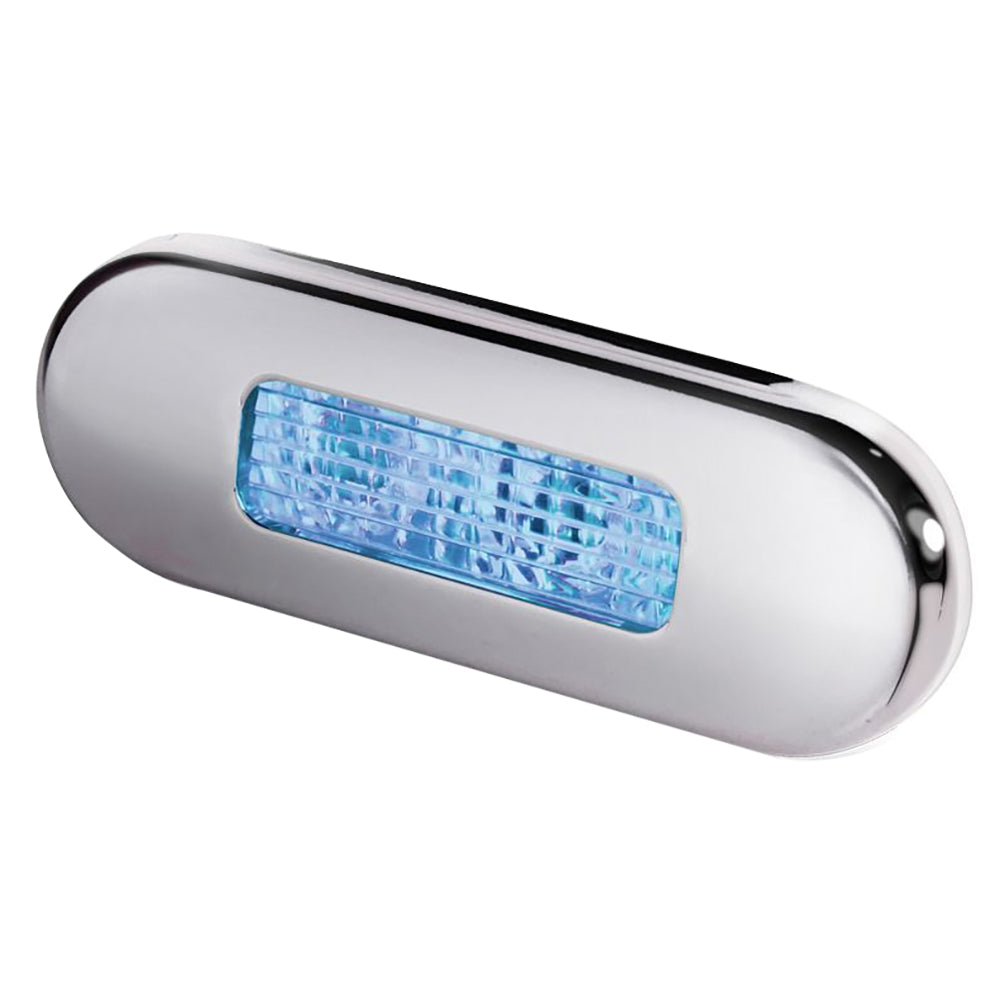

Hella Marine Surface Mount Oblong Blue LED Courtesy Lamp with Stainless Steel Bezel

Surface Mount Oblong LED Courtesy Lamp - Blue LED - Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30 safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

• Lens Material: UV and enhanced impact resistant Grilamid
• Rim Material: 316 stainless steel
• Cable: Pre-wired with 120mm of marine cable
• Operating Voltage: Multivolt 12 / 24V DC
• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 35g (including cable)
• Approvals: CE

The Hella Marine Surface Mount Oblong Blue LED Courtesy Lamp combines durable construction with effective illumination for both interior and exterior vessel applications. Designed with a sleek stainless steel bezel, this lamp provides a clean, modern appearance while offering reliable performance in wet or dry environments. Its UV and impact-resistant Grilamid lens ensures long-lasting clarity and resilience against harsh marine conditions. The lamp's compact design makes it suitable for various mounting locations without compromising space or aesthetics. Ideal for courtesy lighting or step illumination, it delivers a focused light beam that enhances safety and visibility onboard.

This LED courtesy lamp is engineered with specific optics to ensure downward light projection, which effectively illuminates deck areas and stair treads without causing glare or eye discomfort. The integrated pre-wired marine cable simplifies installation, featuring 120mm of wiring compatible with 12V or 24V DC systems. With a power consumption of just 0.5W, it offers energy-efficient operation while maintaining bright, consistent illumination. The completely sealed IP67 rating guarantees protection against water ingress, making it suitable for marine environments exposed to moisture and splashes. Each unit includes stainless steel mounting screws and black and white plastic end caps for versatile finishing options.

The Hella Marine Surface Mount Oblong Blue LED Courtesy Lamp has been CE approved, affirming its compliance with international safety and quality standards. Its lightweight design, weighing approximately 1.2 ounces including the cable, makes it easy to handle and install. Whether used for deck courtesy lighting or step illumination, this LED lamp provides a dependable, stylish, and maintenance-free lighting solution that enhances safety and aesthetics aboard any vessel.

Features:

• UV and impact-resistant Grilamid lens for durability and clarity

• Polished 316 stainless steel bezel for corrosion resistance and aesthetic appeal

• Pre-wired with 4.7 inches of marine cable for easy installation

• Operates on 12V or 24V DC power supplies with low power consumption of 0.5W

• IP67 rated for complete waterproof and dustproof protection

• Engineered optics for downward illumination to safely light deck and step surfaces

• Includes stainless steel mounting screws and plastic end caps for versatile finishing

• Compact and lightweight design ensures unobtrusive installation

• CE certified, meeting international safety standards
