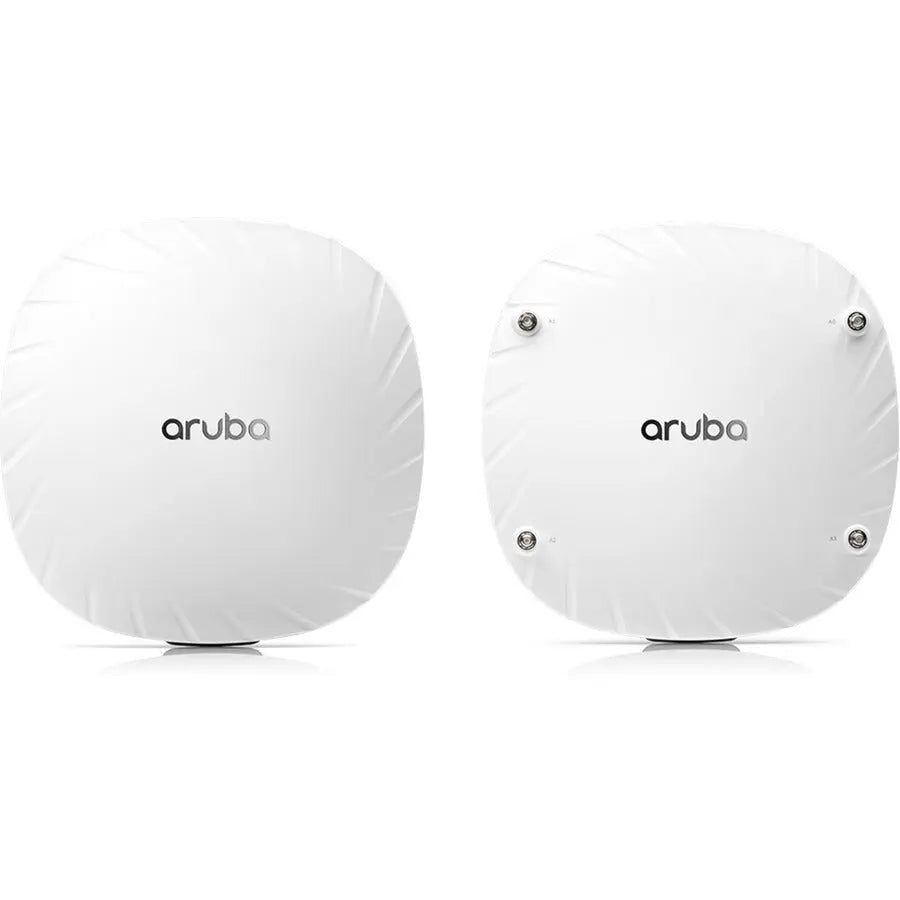

Hewlett Packard Enterprise AP-535 Wireless Access Point with 802.11ax Technology

HPE AP-535 IEEE 802.11ac 3.55 Gbit/s Wireless Access Point

The Hewlett Packard Enterprise AP-535 Wireless Access Point is designed to meet the demands of high-density wireless environments such as universities, retail locations, hotels, and modern workplaces. Equipped with advanced 802.11ax (Wi-Fi 6) technology, the AP-535 delivers exceptional data rates and supports a large number of connected devices simultaneously. With maximum speeds of up to 2.4Gbps on the 5GHz band and 1,150Mbps on the 2.4GHz band, it provides an aggregate peak data rate of 3.55Gbps, ensuring fast and reliable wireless connectivity for bandwidth-intensive applications. Its dual 4x4 MIMO radios with four spatial streams enhance throughput and capacity, making it ideal for environments with many mobile and IoT devices. The AP-535 supports all mandatory and several optional 802.11ax features, including up to 37 OFDMA resource units, which enable efficient multi-user communication and reduced latency for devices with short data frames or low data requirements. Its support for MU-MIMO further increases network capacity by allowing multiple devices to transmit simultaneously, improving overall performance. The device incorporates Aruba ClientMatch technology, which automatically detects and groups compatible devices, optimizing their connection to enhance user experience. Additionally, the AP-535 offers state-of-the-art security with WPA3 encryption and Aruba’s Enhanced open security protocol to safeguard wireless communications. The device includes Aruba Intelligent Power Monitoring, allowing operation even when PoE power is limited, and supports Bluetooth 5 and Zigbee radios for IoT applications and location services, providing versatile and cost-effective connectivity solutions. The rail-mountable form factor and lifetime warranty make it suitable for discreet installation in various environments, ensuring long-term reliable operation. Overall, the HPE AP-535 is a high-performance, secure, and scalable wireless access point capable of supporting dense device environments and delivering a seamless wireless experience.

Features:

• State of the art security with WPA3 and Enhanced open

• Aruba Intelligent Power Monitoring (IPM) enables operation with limited PoE power

• Universal IoT connectivity supporting Bluetooth 5 and Zigbee radios for location and IoT applications

• Ideal for high-density environments such as higher education, K-12 schools, retail branches, hotels, and digital workplaces

• Supports up to 1,024 associated client devices per radio for high device density

• Maximum data rates of 2.4Gbps in the 5GHz band and 1,150Mbps in the 2.4GHz band, with a combined peak of 3.55Gbps

• Supports all mandatory and several optional 802.11ax features, including up to 37 OFDMA Resource Units

• Dual-radio (dual 4x4 MIMO) 802.11ax access point with uplink and downlink OFDMA and Multi-User MIMO

• AI-powered features for wireless RF management and client connectivity optimization
