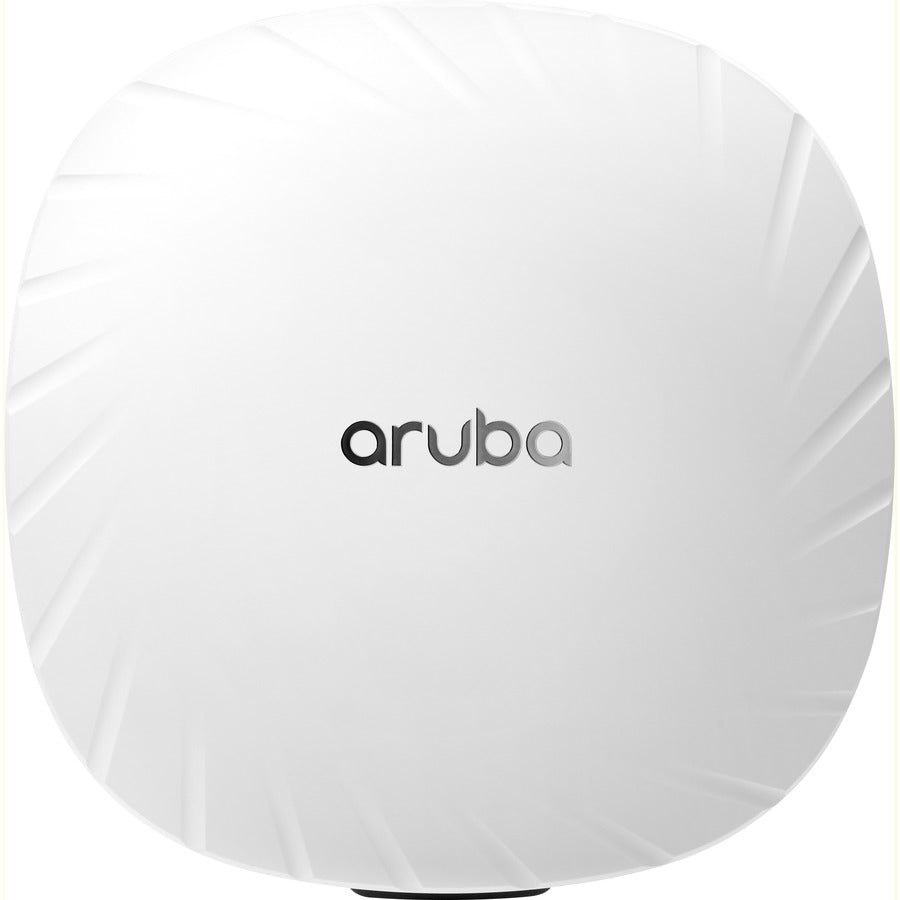

HPE AP-555 Wireless Access Point with 802.11ax Technology for High-Density Environments

HPE AP-555 802.11ax 5.95 Gbit/s Wireless Access Point

The Hewlett Packard Enterprise AP-555 Wireless Access Point is designed to meet the demands of high-density wireless environments such as universities, large public venues, and expanding enterprise networks. Equipped with advanced 802.11ax (Wi-Fi 6) technology, this access point delivers exceptional throughput and efficiency, supporting both current and future wireless connectivity needs.

Its support for all mandatory and several optional 802.11ax features ensures optimal performance. This includes 8x8 MIMO with up to eight spatial streams in the 5GHz band, 4x4 MIMO in the 2.4GHz band, and channel bandwidths up to 160MHz. These capabilities enable maximum data rates of 4.8Gbps on the 5GHz band and 1,150Mbps on the 2.4GHz band, resulting in an aggregate peak data rate of nearly 6Gbps. The AP can support up to 1,024 client devices per radio, making it ideal for environments where device density is high and seamless connectivity is critical.

Enhanced performance features such as Orthogonal Frequency Division Multiple Access (OFDMA) and Multi-User MIMO (MU-MIMO) improve network capacity and reduce latency by allowing multiple devices to transmit simultaneously across the network. Optional tri-radio mode, with two 5GHz radios and one 2.4GHz radio, further extends capacity by supporting multiple concurrent streams. The device also incorporates Aruba ClientMatch technology, which intelligently groups devices based on characteristics to optimize connection quality and overall network efficiency.

Designed with security and power efficiency in mind, the AP-555 supports WPA3 and Enhanced open security protocols, ensuring robust protection for enterprise data. Aruba's Intelligent Power Monitoring (IPM) allows the access point to operate effectively even when PoE power is limited, reducing infrastructure costs. The access point's compatibility with Aruba's Smart PoE simplifies deployment by enabling existing network switching hardware to power the device.

Furthermore, the AP-555 supports universal IoT connectivity with integrated Bluetooth 5 and Zigbee radios, facilitating location services and IoT device integration. Its rail-mountable form factor ensures flexible installation options, while its lifetime warranty offers peace of mind. With its combination of high throughput, dense environment support, and intelligent management features, the Hewlett Packard Enterprise AP-555 is a robust solution for modern wireless networks seeking scalability, security, and high performance.

Features:

• High-density performance suitable for universities, large venues, and enterprise environments

• State-of-the-art security with WPA3 and Enhanced open protocols

• Aruba Intelligent Power Monitoring (IPM) enables operation with limited PoE power

• Universal IoT connectivity including Bluetooth 5 and Zigbee radios for location and IoT applications

• Supports all mandatory and several optional 802.11ax features with 37 OFDMA RUs and up to 1,024 devices per radio

• Maximum data rates of 4.8Gbps on the 5GHz band and 1,150Mbps on the 2.4GHz band, with a total peak of approximately 6Gbps

• Aruba's Smart PoE technology allows use of existing PoE infrastructure for power

• Optional tri-radio mode with two 5GHz and one 2.4GHz radio, all supporting 4x4 MIMO

• Dual-radio configuration with 8x8 and 4x4 MIMO, supporting uplink and downlink OFDMA and MU-MIMO

• AI-powered RF and client connectivity optimization for enhanced performance
