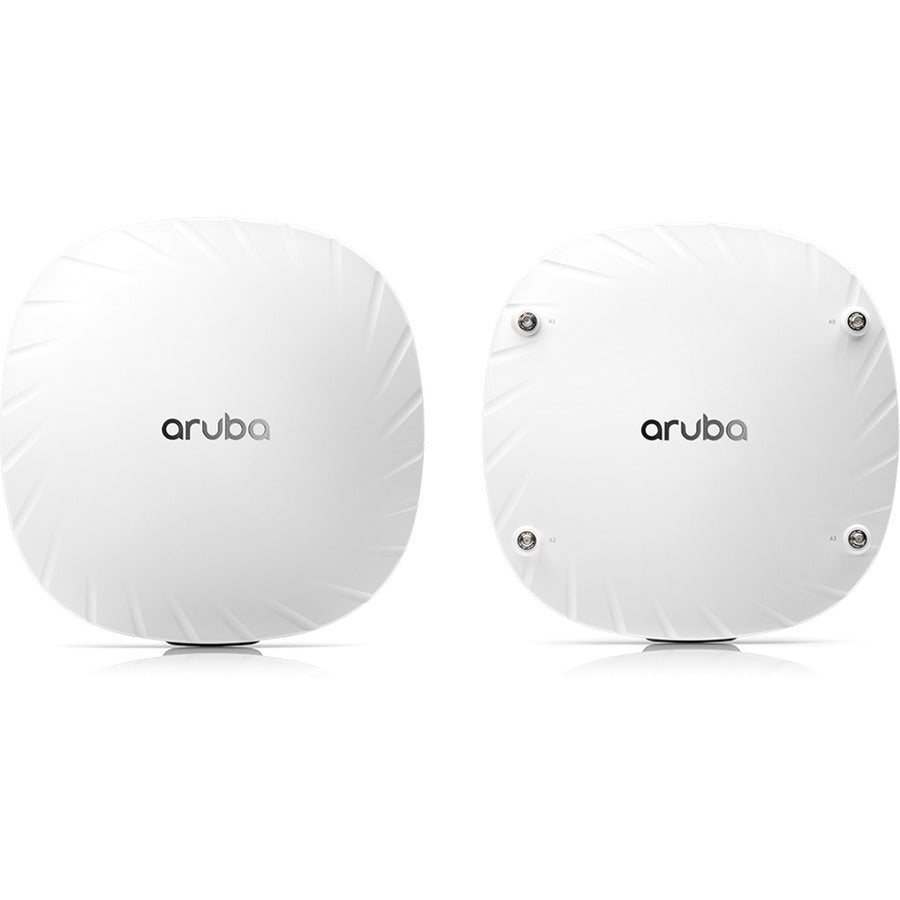

HPE Aruba AP-535 530 Series 802.11ax Wireless Access Point, JZ347A

HPE AP-535 IEEE 802.11ac 3.55 Gbit/s Wireless Access Point - TAA Compliant

The HPE Aruba AP-535 530 Series Wireless Access Point, part number JZ347A, delivers high-performance wireless connectivity for dense enterprise environments. Designed for higher education, K-12 schools, retail branches, hotels, and digital workplaces, this dual-radio access point supports Wi-Fi 6 capabilities that improve network capacity, efficiency, and performance for growing numbers of mobile, IoT, and wireless client devices.

The AP-535 uses dual 4x4 MIMO radios with up to four spatial streams on both the 5GHz and 2.4GHz bands. It supports maximum data rates of 2.4Gbps on 5GHz and 1,150Mbps on 2.4GHz, providing an aggregate peak data rate of up to 3.55Gbps. Wi-Fi 6 features include uplink and downlink OFDMA, uplink and downlink MU-MIMO, channel bandwidths up to 160MHz on 5GHz, 1024-QAM modulation, and up to 37 OFDMA resource units for efficient simultaneous client service.

Aruba ClientMatch technology automatically identifies client characteristics and directs devices to the most suitable access point and radio, helping optimize wireless performance and capacity. AI-powered radio-frequency and client connectivity optimization further supports consistent service in demanding deployments. The AP-535 also offers universal IoT connectivity through integrated Bluetooth 5 and Zigbee radios for location services and IoT applications. Intelligent Power Monitoring helps the access point continue operating when available PoE power is limited, while WPA3 and Enhanced Open provide modern wireless security options. The rail-mountable HPE Aruba AP-535 is TAA compliant and includes a limited lifetime warranty.

Features:

• WPA3 and Enhanced Open security support for modern wireless protection
• Aruba Intelligent Power Monitoring helps maintain operation when PoE power is limited
• Bluetooth 5 and Zigbee radios provide universal IoT and location connectivity
• Supports up to 1,024 associated client devices per radio
• Designed for high-density environments including education, retail, hospitality, and digital workplaces
• Provides up to 2.4Gbps on 5GHz and 1,150Mbps on 2.4GHz, with an aggregate peak rate of 3.55Gbps
• Supports mandatory and optional 802.11ax features, including up to 37 OFDMA resource units
• Dual-radio 4x4 MIMO design with uplink and downlink OFDMA and MU-MIMO
• AI-powered wireless RF and client connectivity optimization
• Rail-mountable form factor with TAA compliance and limited lifetime warranty
