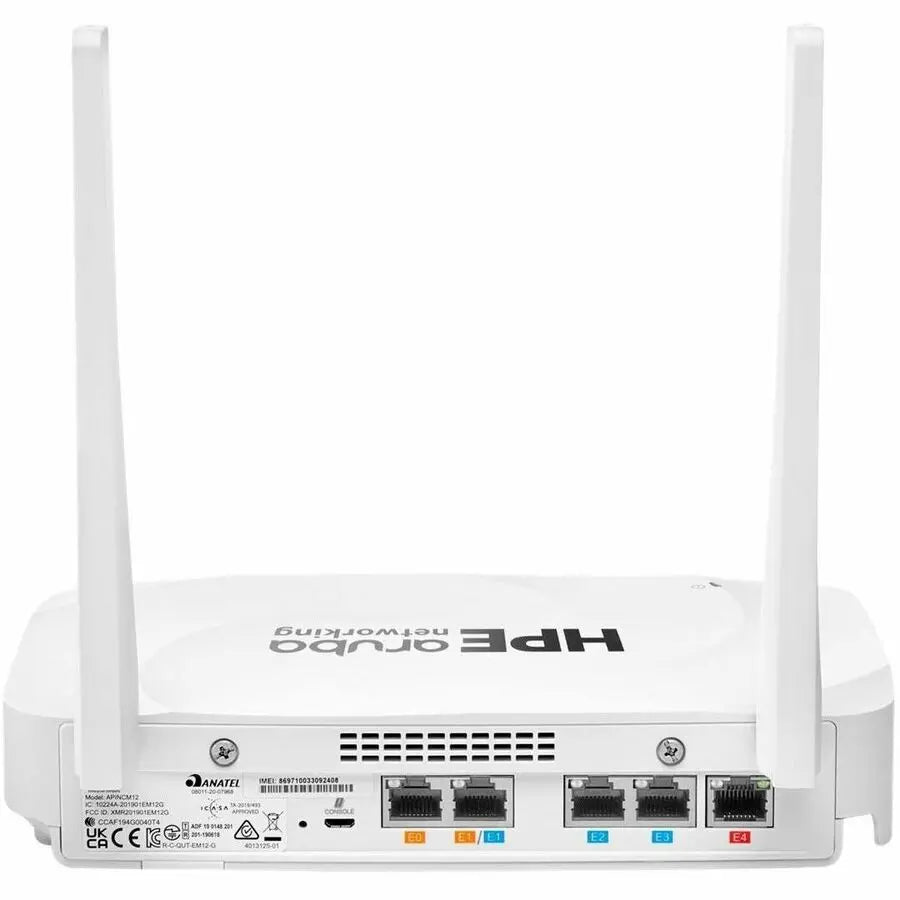

HPE Aruba AP-605CM12 Wireless Module - Wi-Fi 6E Access Point for Remote and Small Branch Deployments

The HPE Aruba AP-605CM12 Wireless Module is a high-performance access point designed for small branches, remote offices, and microbranch environments. Featuring Wi-Fi 6E technology, this device delivers up to 3.6 Gbps combined aggregate data rate across 5 GHz and 6 GHz bands, enabling faster, more reliable wireless connections for bandwidth-intensive applications and latency-sensitive services. The inclusion of 6 GHz support extends network capacity with wider channels, significantly improving performance in environments with multiple connected devices. Two 2x2 MIMO radios facilitate efficient multi-user MIMO operations, enhancing overall network throughput and user experience.

The device supports advanced Wi-Fi 6E features such as OFDMA, bidirectional multi-user MIMO, and target wait time (TWT), which optimize network efficiency and multi-user performance. For connectivity versatility, the AP-605CM12 includes a 2.5 Gbps Ethernet port for high-speed wired connections, a dedicated 1 Gbps uplink port, and three downlink ports, providing flexible setup options. The integrated Bluetooth 5 and 802.15.4 radio support IoT connectivity via Zigbee and Bluetooth Low Energy (BLE), enabling seamless integration of smart devices and sensors. An optional high-speed LTE CAT 12 cellular module ensures primary or backup cellular connectivity, supporting mission-critical operations and remote deployment scenarios.

Managed effortlessly through cloud-native HPE Aruba Networking Central, this access point simplifies deployment and ongoing management. Features such as Zero Touch Provisioning allow for quick setup without on-site technical support, while SD-WAN capabilities extend the WAN to distributed sites with policy-based routing, multiple tunnels, and WAN health monitoring. The device includes GPS and precise timing features for accurate location tracking, facilitating asset management and security. Security is enhanced through Dynamic Segmentation, WPA3 encryption, protected credentials storage, and user/IoT policy enforcement firewalls, all designed to safeguard network traffic and device integrity. The Trusted Platform Module (TPM) provides protected storage for credentials and keys, further reinforcing device security. The compact design, lightweight construction, and included accessories such as a desk stand and power adapter make installation straightforward, supporting flexible deployment in diverse environments. The AP-605CM12 Wireless Module combines high performance, security, and ease of management to meet the needs of modern wireless networks.

Features:

• Wi-Fi 6E support with up to 3.6 Gbps combined data rate for high-bandwidth applications

• Dual 2x2 MIMO radios for efficient multi-user MIMO performance

• Extended Wi-Fi 6E features including OFDMA, bidirectional MU-MIMO, and TWT for improved efficiency

• Wired connectivity with a 2.5 Gbps Ethernet port, 1 Gbps uplink, and three downlink ports

• Integrated Bluetooth 5 and Zigbee radio for IoT device support

• Optional high-speed LTE CAT 12 cellular module for primary or backup connectivity

• Cloud-based management via HPE Aruba Networking Central with Zero Touch Provisioning

• Advanced security features including Dynamic Segmentation, WPA3, and TPM for credential protection

• Supports SD-WAN routing, policy management, and WAN health monitoring for remote deployments

• Lightweight design with included desk stand and power accessories for easy installation
