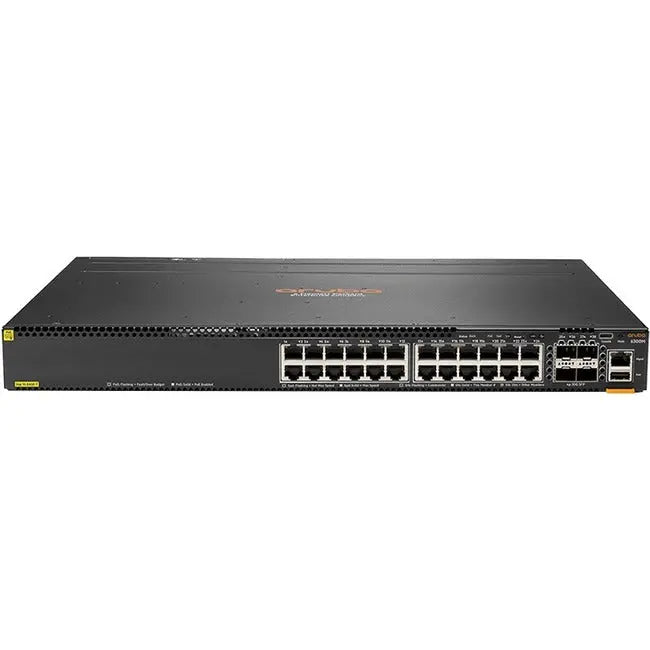

HPE Aruba CX 6300M 24-Port 1GbE PoE and 4-Port SFP56 Switch Model JL662A

HPE 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch

The HPE Aruba CX 6300M Switch Series offers a versatile and high-performance solution for enterprise network access, aggregation, and core infrastructure. Designed with advanced hardware and software, this rack-mountable switch provides reliable connectivity with support for high-speed uplinks and optional PoE capabilities. Its modular design allows for redundancy and customization, ensuring continuous operation in demanding environments. The onboard Aruba Network Analytics Engine facilitates intelligent monitoring, troubleshooting, and network insights, enabling IT teams to maintain optimal network performance and security. Built to support IoT, mobile, and cloud applications, the 6300M series is an ideal foundation for modern enterprise networks.

Equipped with Aruba Dynamic Segmentation, the switch enforces consistent security policies across both wired and wireless networks, simplifying management and enhancing security for users and IoT devices. Support for Aruba NetEdit allows for automated configuration and verification, streamlining deployment and reducing errors. The switch features built-in high-speed 10GbE, 25GbE, and 50GbE uplinks, providing ample bandwidth for high-density environments. Its compact 1U form factor with full density support and PoE up to 60W makes it suitable for space-constrained data centers and campus deployments. The system boasts a switching capacity of 880 Gbps, throughput of 660 MPPS, and a stacking bandwidth of up to 200 Gbps, ensuring high throughput and scalability.

Designed for advanced enterprise needs, the HPE Aruba CX 6300M also supports Layer 3 routing protocols such as BGP, EVPN, VXLAN, VRF, and OSPF, along with robust security and Quality of Service (QoS) features. Its environmentally friendly design complies with WEEE standards, and the package includes a 2-post rack kit for straightforward installation. With a lifetime warranty, this switch provides a reliable backbone for enterprise networks seeking high performance, security, and ease of management.

Features:

• Aruba Dynamic Segmentation enables secure and simple access for users and IoT devices

• Aruba NetEdit support for automated configuration and verification

• One touch deployment with the Aruba CX Mobile App

• Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine

• Built-in high speed 10GbE, 25GbE, and 50GbE uplinks

• Compact 1U form factor with full density HPE Smart Rate multi-gigabit Ethernet (1/2.5/5GbE), 60W PoE, and SFP+ models

• High performance with 880 Gbps switching capacity, 660 MPPS throughput, and up to 200 Gbps stacking bandwidth

• Stackable Layer 3 switches supporting BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
