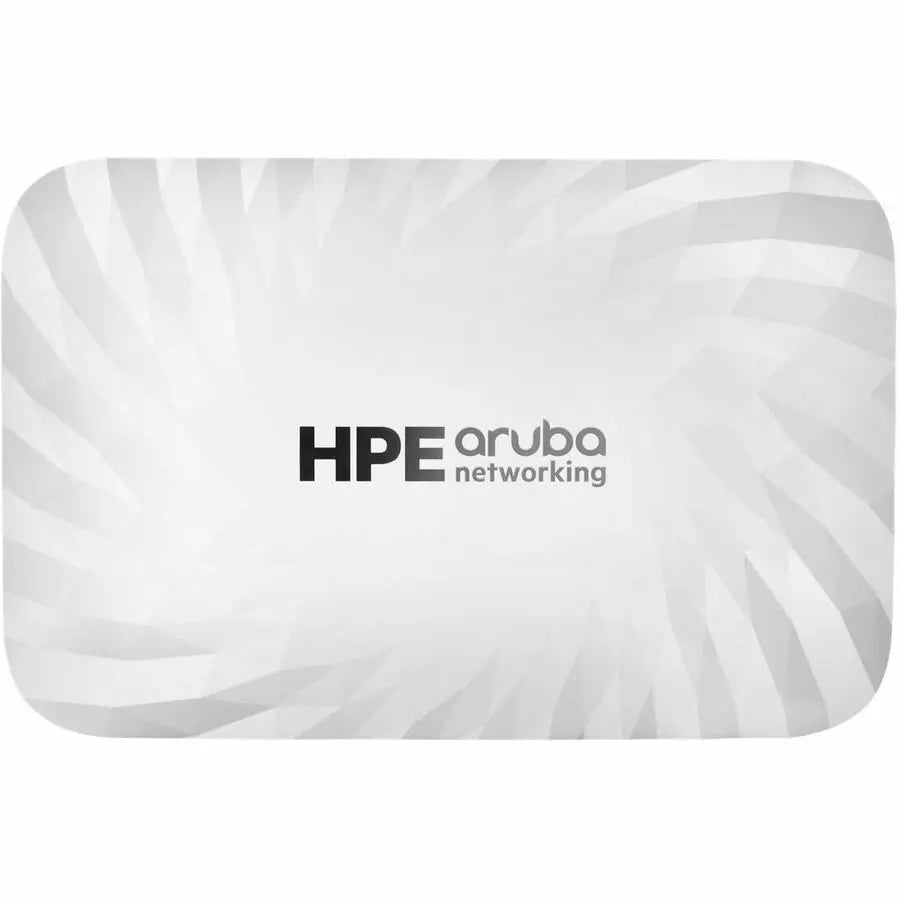

HPE Aruba Networking AP-763 Outdoor Wireless Access Point with Wi-Fi 7 and Industrial IoT Support

Aruba AP-763 Tri Band Wi-Fi 7 IEEE 802.11a/b/g/n/ac/ax/be/az/mc 5.80 Gbit/s Wireless Access Point - Indoor/Outdoor - Yes

The HPE Aruba Networking AP-763 Part Number S4K09A is a high-performance outdoor wireless access point designed to deliver fast, reliable Wi-Fi 7 connectivity across challenging environments. Its compact, rail-mountable form factor makes it suitable for deployment in outdoor, industrial, and hazardous locations, providing secure and robust network access for large outdoor venues, industrial sites, and warehouses. Built with durability in mind, this access point features an IP66/IP67 rating and surge protection, ensuring reliable operation even under extreme weather conditions and exposure to airborne contaminants. Its rugged design is ideal for outdoor installations where environmental resilience is critical, including environments with high or low temperatures and moisture exposure. The AP-763 supports multi-gigabit speeds with a maximum aggregate data rate of up to 5.8 Gbps on the 6 GHz band, utilizing Wi-Fi 7's multilink operation (MLO) for enhanced capacity and lower latency. With tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz, it provides flexible deployment options with dynamic antennas that can be configured as omni-directional or directional through software, facilitating optimized coverage. The device is equipped with integrated Bluetooth and Zigbee radios, making it IoT-ready for diverse applications such as asset tracking, environmental monitoring, and industrial automation. Fast wired connectivity is supported via a 5GbE port, enabling seamless integration into existing network infrastructure. The AP-763 supports low power indoor and standard power operations, with embedded GPS for precise location services, and is certified for hazardous locations (Class 1 Division 2 and ATEX Zone 2), making it suitable for environments requiring stringent safety standards. Its AI-powered dynamic power save mode helps reduce energy consumption, contributing to sustainable operation. Overall, the HPE Aruba AP-763 outdoor access point is an advanced solution for high-demand outdoor wireless networks, combining high throughput, environmental durability, and IoT integration in a single, reliable platform.

Features:

• Wi-Fi 7 (802.11be) brings multilink operation (MLO) for channel aggregation, 4K QAM for higher throughput and lower latency, and the 6 GHz band for more than double the available capacity.

• Dual radio, tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz for 5.8 Gbps (6 GHz 4x4 160 MHz) Gbps peak aggregate data rate.

• Flexible radio delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz) or up to 5.8 Gbps using 6 GHz (4x4) with 160 MHz.

• Flexible deployment with dynamic antennas (integrated omni and directional, software provisioned).

• Industrial IoT-ready platform with integrated Bluetooth and 802.15.4/Zigbee radios and fast wired connectivity with a 5GbE port.

• Low Power Indoor (LPI) power and Standard Power (SP) device operation, with embedded GPS receiver for location services and standard power support.

• Certified for hazardous environments including Class 1 Division 2 and ATEX Zone 2 (AP-765EX model).

• Connectorized model supports external antennas for extended coverage.

• AI-powered dynamic power save mode helps reduce energy consumption and optimize power usage.
