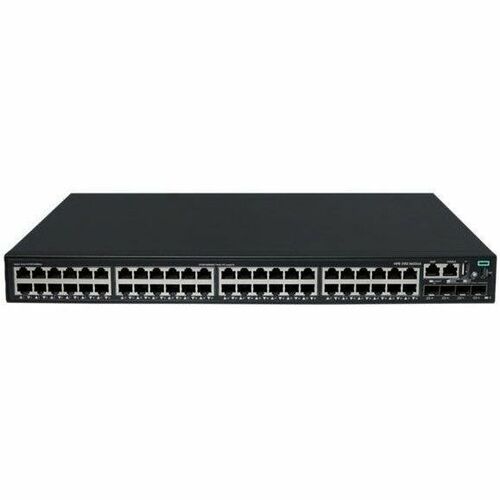

HPE CW 2150 48-Port Gigabit PoE+ Managed Switch with 4-Port 1G/10G SFP+ Uplinks, 770W, S6X54A#ABA

HPE CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W Switch

The HPE Networking CW 2150 48-Port PoE+ Switch, part number S6X54A#ABA, is a fully managed, rack-mountable Layer 3 Ethernet switch designed for small and midsize businesses, branch offices, and growing enterprise networks. Part of the HPE Networking CW 2150 Series and Comware product line, this switch combines reliable Gigabit connectivity, advanced management, and high-capacity Power over Ethernet Plus for deploying wired infrastructure, wireless access points, IP phones, surveillance cameras, and other powered devices.

Enterprise-class switching and connectivity

• Provides 48 Gigabit Ethernet ports for connecting a broad range of network devices over standard twisted-pair cabling
• Includes four 1G/10G SFP+ uplinks for high-speed fiber or direct-attach network connections
• Delivers up to 176 Gbps of nonblocking switching bandwidth and up to 131 Mpps of forwarding performance
• Supports Layer 3 routing, IPv6, RIP, and OSPF to help organize and scale network traffic
• Enables up to nine-switch IRF stacking for simplified management, link redundancy, and resilient availability

Powerful PoE+ and efficient management

The HPE CW 2150 S6X54A#ABA provides up to 770 watts of Class 4 PoE+ power for compatible devices and supports advanced features such as Fast PoE for rapid power delivery after startup and Perpetual PoE to help maintain end-device power during a power-source reboot. Quality of Service features help prioritize business-critical applications, while IEEE 802.3az Energy Efficient Ethernet can reduce power consumption during periods of lower traffic. A built-in 6 kV service-port surge protection feature helps improve reliability in demanding installation environments.

Network administrators can manage the switch through a Web GUI, command-line interface, Smart Management Center, HPE Intelligent Management Center, SNMP, or REST APIs. The integrated power supply and rack-mountable form factor support organized equipment-room deployment. With RoHS compliance, lifetime limited warranty coverage, and dependable HPE Networking design, the CW 2150 switch provides a scalable foundation for secure, high-performance wired networks.

Features:

• 48 Gigabit Ethernet ports support larger wired network deployments
• Four 1G/10G SFP+ uplinks provide flexible high-speed connectivity
• Up to 176 Gbps of nonblocking switching bandwidth supports demanding network traffic
• Up to 131 Mpps forwarding performance helps maintain efficient packet processing
• Layer 3 routing with IPv6, RIP, and OSPF supports scalable traffic management
• Up to nine-switch IRF stacking enables centralized management and network resiliency
• Up to 770 watts of Class 4 PoE+ power supports compatible network devices
• Fast PoE and Perpetual PoE help improve device availability during startup and power events
• Web GUI, CLI, SmartMC, IMC, SNMP, and REST API management options support flexible administration
• Rack-mountable design supports installation in standard equipment racks
• IEEE 802.3az Energy Efficient Ethernet helps reduce power consumption
• Built-in 6 kV service-port surge protection helps enhance deployment reliability
• RoHS compliant and backed by a lifetime limited warranty
