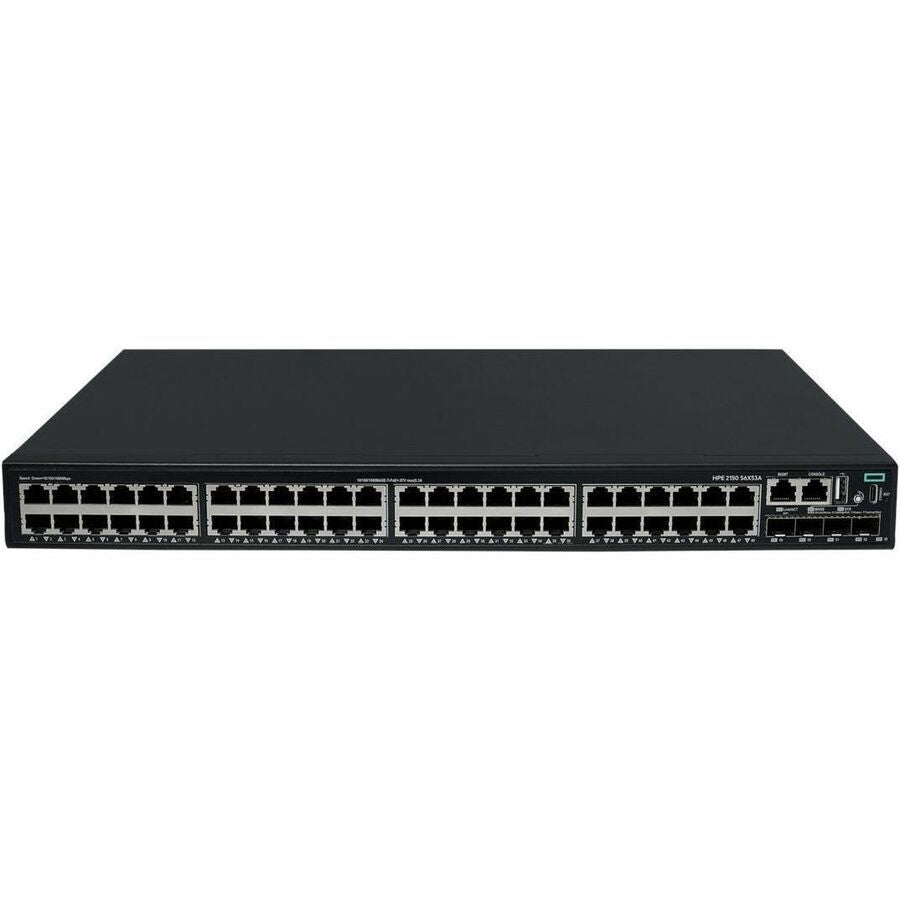

HPE Networking CW 2150 48-Port PoE+ Managed Layer 3 Switch, S6X53A#ABA

HPE CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 390W Switch

The HPE Networking CW 2150 48-Port PoE+ Switch, part number S6X53A#ABA, delivers reliable, enterprise-class connectivity for small and medium-sized businesses, branch offices, and growing workgroups. This fully managed Layer 3 Ethernet switch provides 48 Gigabit ports with PoE+ support, four 1G/10G SFP+ uplinks, and a 390W Class 4 PoE budget for powering compatible access points, phones, cameras, and other network devices over standard twisted-pair cabling.

Performance and flexible connectivity

Designed for demanding wired networks, the HPE CW 2150 supports up to 176 Gbps of nonblocking bandwidth and up to 131 Mpps of forwarding performance. Four 1G/10G SFP+ uplinks provide high-speed connections to servers, aggregation switches, and other network infrastructure, while cascade and stack connectivity help extend network capacity. Up to nine units can be combined through Intelligent Resilient Framework (IRF) stacking to improve availability, simplify management, and support link redundancy.

Secure, manageable Layer 3 networking

Advanced Quality of Service, IPv6, RIP, and OSPF support enable efficient traffic handling and dependable routing across structured networks. Administrators can configure and monitor the switch through a Web GUI, command-line interface, Smart Management Center, HPE Intelligent Management Center, SNMP, or REST APIs. Built-in 6 kV service-port surge protection helps reduce risk in challenging environments, while IEEE 802.3az Energy Efficient Ethernet helps reduce power consumption during periods of lower network activity.

Power over Ethernet and dependable operation

The 390W Class 4 PoE+ capability supplies power and data through a single Ethernet cable, helping simplify deployments and reduce the need for separate power infrastructure. Fast PoE enables connected devices to receive power within seconds of system startup. An AC power source supports consistent operation, and the switch is backed by HPE's limited lifetime warranty. The HPE Networking CW 2150 combines scalable performance, centralized management, strong security features, and practical PoE capability for modern business networks.

Features:

• 48 Gigabit Ethernet ports support wired connectivity for larger workgroups and business networks
• 390W Class 4 PoE+ budget powers compatible access points, phones, cameras, and other devices
• Four 1G/10G SFP+ uplinks provide flexible high-speed connections to servers and network infrastructure
• Up to 176 Gbps of nonblocking bandwidth supports efficient data transmission across the network
• Up to 131 Mpps forwarding performance helps maintain responsive network traffic handling
• Layer 3 switching with RIP, OSPF, IPv6, and advanced QoS supports structured traffic management
• IRF stacking supports up to nine units for network expansion, resilience, and simplified administration
• Web GUI, CLI, SmartMC, IMC, SNMP, and REST API management options support flexible administration
• IEEE 802.3az Energy Efficient Ethernet helps reduce power use during periods of low traffic
• 6 kV service-port surge protection helps safeguard connectivity in demanding operating environments
