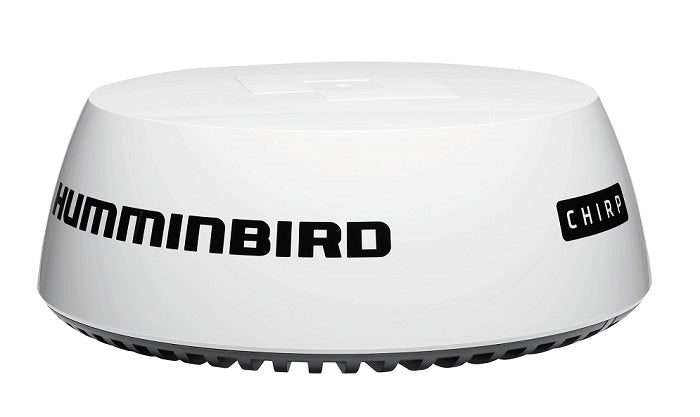

Humminbird HB2124 CHIRP Radar Dome with Cable

Humminbird HB2124 CHIRP Radar Dome with Cable

Humminbird HB2124 CHIRP Radar with 10m Cables

Model: 750013-1

Introducing the next generation of marine radar: new CHIRP Radar, featuring CHIRP Pulse Compression. Setting a new standard for compact solid state radar, this technology delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions, and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definition. Available for select Humminbird models with networking capabilities.

Along with excellent short-range detection (18-ft minimum range), CHIRP Pulse Compression ensures more energy reaches each target for superior imaging at long ranges up to 24 nautical miles. CHIRP Pulse Compression identifies small or weak targets, even while positioned close to strong returns.

Thanks to solid state technology, Humminbird radar is safe, reliable and lightweight. At 12.3 lbs, the radar unit weighs 50% less than traditional magnetron radars and offers safe emissions with a low power radar transmitter. It's also ready to use in seconds, without a lengthy warm-up period.

See things more clearly with Humminbird CHIRP Radar. Shorelines, buoys, other boats and weather-watch it all take shape on your display for maximum safety and a competitive edge. Available for all networking models, advanced target separation displays targets with unsurpassed resolution and quality.

Compatible with as of 06/23/2021: All APEX Series, All SOLIX Series, all HELIX 15 Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 MSI GPS G3N, HELIX 7 MDI GPS G3N, HELIX 7 CHIRP GPS G3N, HELIX 7 CHIRP SI GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP GPS G2N), all ONIX Series, all ION Series

Specifications

Antenna Diameter
21" Dome

Antenna type
Patch array

Peak power output
20 watts

Transmit frequency
9354 to 9446 MHz

Beamwidth (nominal)
4.9° Horizontal and 20° Vertical

Input voltage
12 or 24vDC

Networking
Ethernet

Max. Range scale
1/16 to 24 nautical miles

Power consumption
17 watts transmit, 7 watts standby

Duplexer
Circulator

Pulse widths (3dB)
40 ns to 14.7 µs

CHIRP lengths
400 ns to 20 µs

CHIRP bandwidth
Up to 32 MHz

IF bandwidth
26 MHz

Noise
less than 4 dB

Piolarization
Horizontal

Waterproofing
IPX6

What's in the Box:

• 21" Radome


• 10m Data Cable


• 10m Power Cable


• Mounting Hardware
