Humminbird HB2124 CHIRP Radar for Select HELIX and ONIX Models

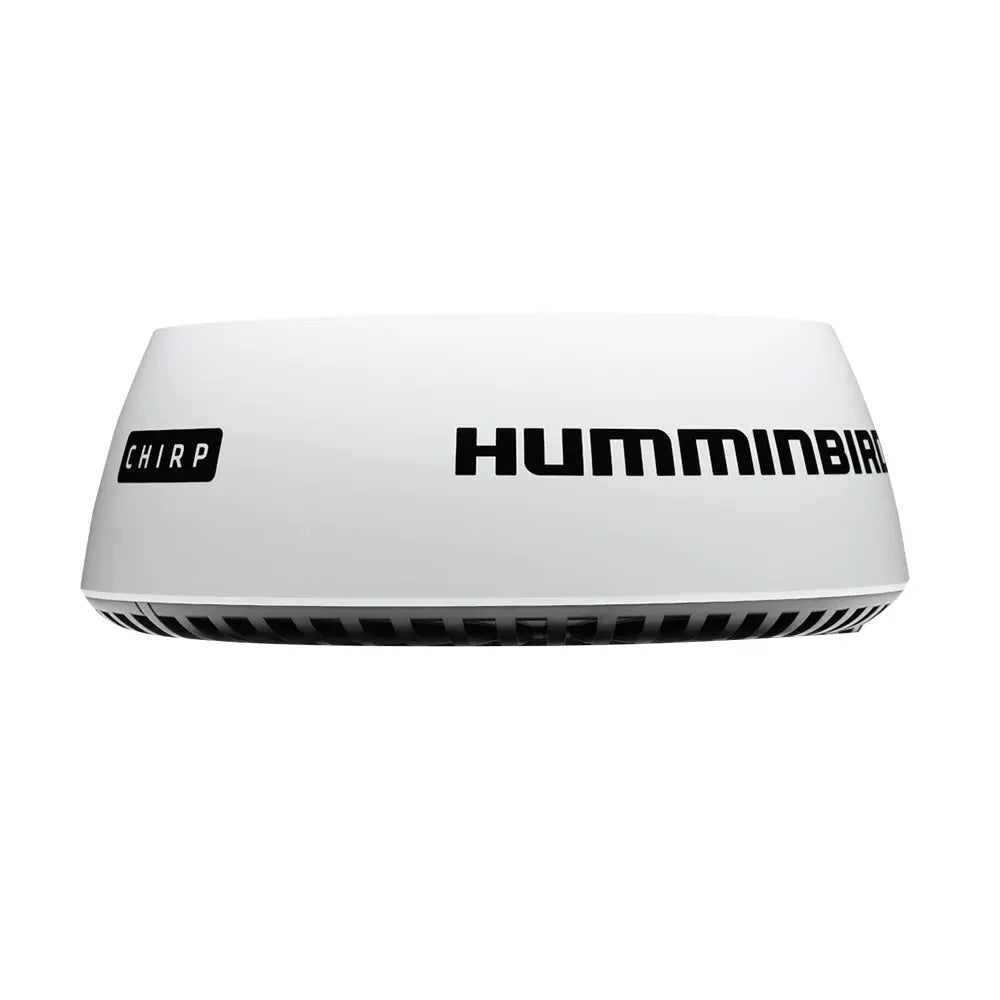

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9 Horizontal and 20 Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7s

• CHIRP Lengths - 400 ns to 20s

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

The Humminbird HB2124 CHIRP Radar is a compact, high-performance radar system designed for marine navigation and fishing applications. Compatible with select HELIX and all ONIX networked models, this radar features advanced CHIRP pulse compression technology, which provides superior imaging across both long and short ranges. Its 21-inch enclosed dome patch array antenna delivers sharp, detailed RADAR images, enhancing situational awareness in low-visibility conditions. Whether tracking weather patterns, vessels, or identifying floating obstacles and bird activity, the HB2124 offers clarity and precision to improve safety and efficiency on the water.

Features:

• Antenna dimension: 21-inch enclosed dome for compact and durable design

• Antenna type: Patch array for focused and reliable signal transmission

• Peak power output: 20W for strong signal strength and detection range

• Transmit frequency: 9354 to 9446 MHz, optimized for marine environments

• Beam width: 4.9° horizontal and 20° vertical for precise targeting

• Input voltage: 12 or 24 VDC, with a range from 10.8 to 31.2 volts

• Networking: Ethernet connectivity for seamless integration with compatible devices

• Maximum range scale: from 1/16 to 24 nautical miles for versatile coverage

• Power consumption: 17W in transmit mode, 7W standby, 2W sleep mode for efficient operation

• Duplexer: Circulator for effective signal management

• Pulse widths @ 3 dB: 40 nanoseconds to 14.7 seconds for adjustable detection sensitivity

• CHIRP lengths: 400 nanoseconds to 20 seconds for detailed imaging

• CHIRP bandwidth: Up to 32 MHz for high-resolution signals

• IF bandwidth: 26 MHz for clear signal processing

• Noise level: Less than 4 dB for minimal interference

• Polarization: Horizontal for consistent signal transmission

• Waterproofing: IPX6 rated for resistance against water jets and splashes

• Weight: Approximately 12.3 pounds for easy installation and handling

• Compatibility: Designed for use with Humminbird HELIX and ONIX series
