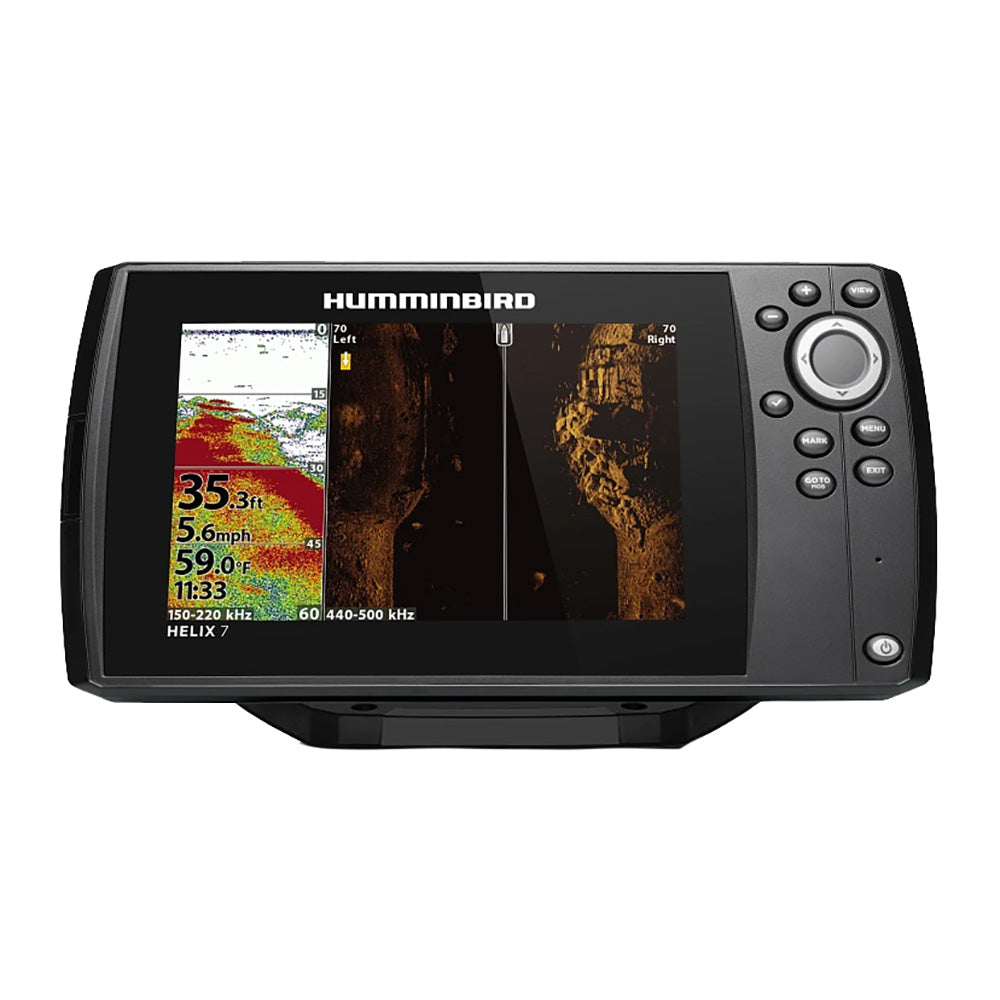

HELIX 7 GPS CHIRP SI G4
The HELIX 7 SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.
Features:
- Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
- CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
- Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
- Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
- 1-Year Limited Warranty
Specifications:
- Display Size - Diagonal: 7"
- Display Pixel Matrix: 1024H x 600V
- Transducer Included: XNT 9 HW SI T
- Compatible With: Minn Kota US2 Sonar, AIS, AutoPilot
- Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping
- Memory Card Slot: Single Micro SD
- Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
- Sonar-Coverage: 20, 42, 60 (2) 86 @ -10dB
- Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
- Live Sonar-Coverage: 20 degrees x 120 degrees
- CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
- Sonar-Frequencies Supported: 50/83/200/455 kHz
- Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer)
- CHIRP - Imaging Frequencies Supported: 455 kHz (420-520 kHz)
- Depth-Down Imaging: 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 800 ft (455 kHz)
- Interface: Keypad Control
- Power Draw: 800 mA
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 4000 Watts
- Power Output RMS: 500 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included

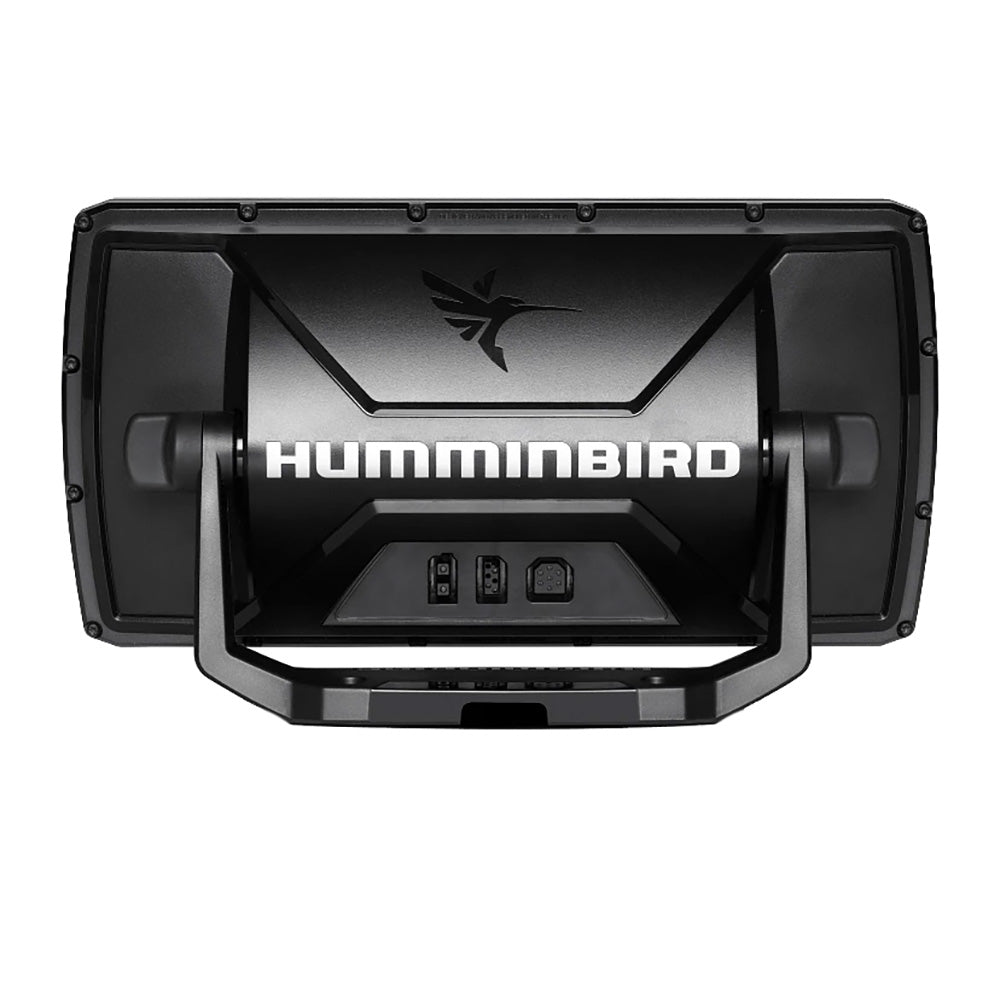

- Mount-Standard: Gimbal
- Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- CoastMaster Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum+ Compatibility: Yes
- Platinum Compatibility: Yes
- AIS Compatibility: Optional
- Autopilot Compatibility: Yes
- Heading Sensor GPS Compatibility: Yes
- Target Separation: 2.5"
- Interference Rejection: 6 Modes
- Noise Rejection: 10 Steps
- Upgradable Software: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Display Colors Grayscale: 16-Bit
- Display Type: Color TFT
- Speed: Included
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
- Warranty: One-Year Warranty
The Humminbird HELIX 7 GPS CHIRP SI G4 offers anglers a comprehensive fish-finding and navigation solution with its advanced features and high-definition 7-inch display. Equipped with CHIRP Side Imaging, CHIRP Down Imaging, and Dual Spectrum CHIRP Sonar, this device delivers exceptional clarity and detail beneath your boat, making it easier to locate fish and underwater structures. The high-resolution display provides a clear, split-screen view with multiple pre-loaded options, ensuring you never miss a detail during your fishing trips. Its intuitive keypad control offers quick access to functions, allowing reliable operation in any weather conditions. The combination of high-quality sonar processing and user-friendly controls makes the HELIX 7 an essential tool for serious anglers seeking precision and confidence on the water.
Internal GPS and Humminbird Basemap enhance your navigation capabilities by providing detailed underwater terrain and points of interest, including marinas, hazards, contours, and depth markers. With coverage of over 10,000 lakes and coastal areas across the continental U.S., you can plan your fishing spots and navigate with confidence. The device also supports premium charts from Humminbird’s LakeMaster, CoastMaster, and compatible Navionics charts, providing flexibility for various fishing environments.
AutoChart Live allows you to create real-time maps of your favorite fishing spots, capturing depth contours, bottom hardness, and vegetation data as you drive your boat. With eight hours of built-in recording and compatibility with AutoChart Zero Line SD cards, you can generate detailed maps for future trips. The package includes a control head, transom-mount transducer, power cable, gimbal mounting bracket, and hardware for easy installation. With a one-year limited warranty, the Humminbird HELIX 7 GPS CHIRP SI G4 is a reliable and versatile tool that combines advanced sonar, navigation, and mapping features to improve your fishing experience.
Designed for durability and ease of use, this fish finder is compatible with Minn Kota US2 Sonar, AIS, and AutoPilot systems, making it suitable for a variety of boating setups. Its powerful 500-watt RMS power output and peak-to-peak power of 4,000 watts ensure strong sonar signals for clear imaging. The device supports multiple sonar frequencies, allowing you to customize your search for fish and structures. Its sleek color TFT display features 16-bit grayscale colors for vivid imaging, while the keypad control offers straightforward operation. This comprehensive fish finder is ideal for anglers who demand precision, connectivity, and advanced mapping capabilities in a compact, easy-to-install package.
Features:
- Keypad control: Master HELIX at the touch of a button with softkey menu system
- CHIRP Down Imaging: Clear view beneath your boat by filtering noise and clutter
- Dual Spectrum CHIRP sonar: Provides wide and narrow modes for detailed searching
- Internal GPS and Humminbird Basemap: Detailed underwater terrain and points of interest
- AutoChart Live: Create real-time maps with depth, hardness, and vegetation data
- Premium chart compatibility: Supports LakeMaster, CoastMaster, Navionics Gold/HotMaps, and Platinum+
- Color TFT display: 7-inch high-definition screen with vivid color imaging
- Powerful sonar: 500 Watts RMS, 4,000 Watts peak-to-peak, with multiple frequencies supported
- Includes transducer, control head, mounting hardware, and power cable
- Supports additional systems: Minn Kota US2 Sonar, AIS, AutoPilot, and Heading Sensors
- Memory card slot: Single Micro SD for expanded mapping and data storage
- Waypoints, routes, and tracks: Store up to 2,750 points with detailed navigation features
- Built-in temperature sensor with alarm and graph for environmental monitoring
- Durable gimbal mounting system with optional in-dash mounting kit
