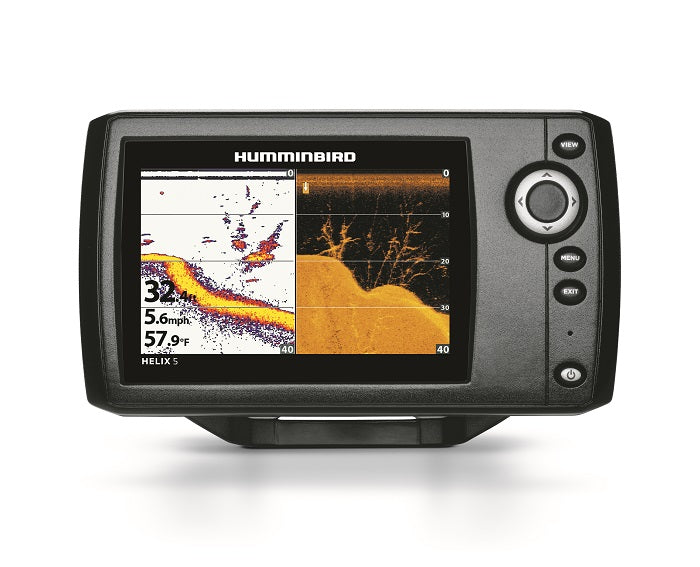

Humminbird HELIX5 DI 5in WVGA Color Fishfinder G2

Humminbird HELIX5 DI 5in WVGA Color Fishfinder G2

Humminbird HELIX 5 DI G2 Fishfinder

• Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
• SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
• Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Display size
5 in

Display resolution
800 x 480

Display type
Color TFT

Display colors grayscale
16-bit

Standard sonar
Down Imaging/DualBeam PLUS

Standard sonar coverage
16°, 28°, 45° & 75° @ -10db

Standard sonar frequency
455/800/200/455 kHz

target separation
2.5 in

Power output RMS
500 watts

power output peak to Peak
4000 watts

Depth capability
350 ft (DI) & 600 ft (2D)

Temperature
Built-in transducer

Speed
Optional

Backlight
LED

PC Connect
Optional

Switchfire sonar
Yes

Split screen zoom
Yes

Split Screen Bottom Lock:
Yes

Large digit view
Yes

Card reader
No

Input Voltage
10.8-20 VDC

Input Draw
650mA

Dimensions
Gimbal Mount:7.55"W x 4.64"H x 3.3"D
Indash Mount:7.55"W x 4.28"D x 1.13"D

What's in the Box:

• Helix 5 DI G2
• Bracket
• Powercord
• XNT 9 DI T
• Documentation
