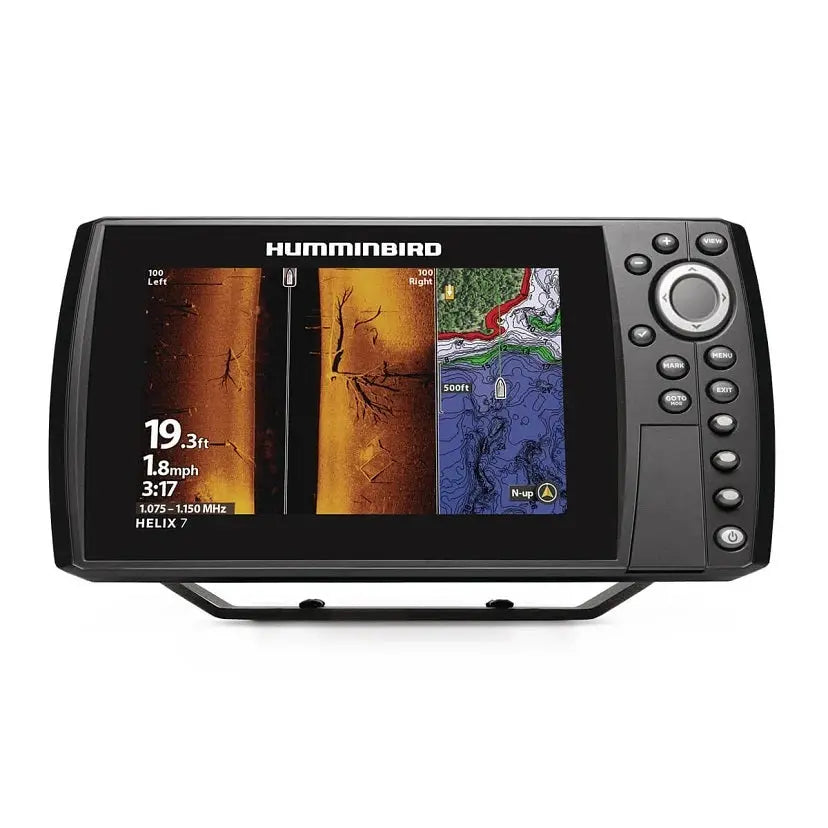

Humminbird HELIX7 CHIRP MSI GPS G4N

Humminbird HELIX7 CHIRP MSI GPS G4N

Humminbird HELIX 7 G4N CHIRP MEGA SI GPS

Model: 411940-1

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.


• MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more detail than standard Side Imaging sonar.


• MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.


• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.


• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.


• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster products, as well as your choice of compatible Navionics® charts.


• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.


• One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.


• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.


• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.


• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

The HELIX 7 CHIRP MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Specifications

Display Size - Diagonal
7"

Display Pixel Matrix
1024H x 600V

Sonar-Standard
Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging

Sonar-Coverage
20°, 42°, 60° & (2) 86° @ -10dB

Sonar-Optional
53 kHz, 50/Low Airmar CHIRP

CHIRP - Frequencies Supported
83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

Sonar-Frequencies Supported
50/83/200/455/800 kHz & 1.2 MHz

Depth-Sonar
1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

CHIRP - Imaging-Frequencies Supported
455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz)

Depth-Down Imaging
400 ft (455 kHz), 75 ft (MEGA)

Range-Side Imaging (Side-To-Side)
800 ft (455 kHz), 250 ft (MEGA)

Interface
Keypad Control

Features
Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, Side Imaging, MEGA Imaging, MEGA Live Imaging, Bluetooth, Networking, Wi-Fi

Memory Card Slot
Dual Micro SD

Compatible With
AIS, AutoPilot, Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, MEGA Live, One-Boat Network, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar

Power Draw
800 mA

Power Input
10.8-20 VDC

Power Output Peak-to-Peak
4000 Watts

Power Output RMS
500 Watts

Screen Snap Shot
Included

Sonar Recording
Included

Mount-Standard
Gimbal

Mount-Standard Size
10.54" W x 5.8" H x 3.68" D

Mount-Optional Size
10.54" W x 5.44" H x 1.13" D

Transducer Mount Location
Transom

Transom
Included

GPS Trackplotting
Included

LakeMaster Compatibility
Yes

Coast Master Compatibility
Yes

Navionics Gold/HotMaps Compatibility
Yes

Navionics Platinum + Compatibility
Yes

Platinum Compatibility
Yes

Heading Sensor GPS Compatibility
Yes

Upgradable Software
Yes

View Preset Keys
Yes

X-Press Menu System
Yes

Custom Digital Readout
Yes

Custom View Selections
No

Display Colors Grayscale
16-Bit

Speed
Included

Temperature
Built In

Temperature Alarm
Yes

Temperature Graph
Yes

HDMI Compatible
No

MEGA Live Compatibility
Yes

What's in the Box:

• Control head


• Transom-mount transducer XNT 9 HW MSI 150 T


• Power cable


• Gimbal mounting bracket


• Mounting hardware.
