Humminbird Mega 360 Imaging Ultrex 2 System

Humminbird Mega 360 Imaging Ultrex 2 System

• Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N.


• Compatible with all APEX models and all SOLIX G2 and G3 models.


• For use only on Minn Kota's Ultrex bow-mount trolling motor.


• The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.


• Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.


• Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.


• Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.


• Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.


• View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings


• MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.


• Once connected to a compatible HELIX G3N unit with MEGA Imaging+ or SOLIX G2 unit, MEGA 360 Imaging view can be shared with All SOLIX models, and all HELIX G2N and G3N models when connected via an Ethernet network.

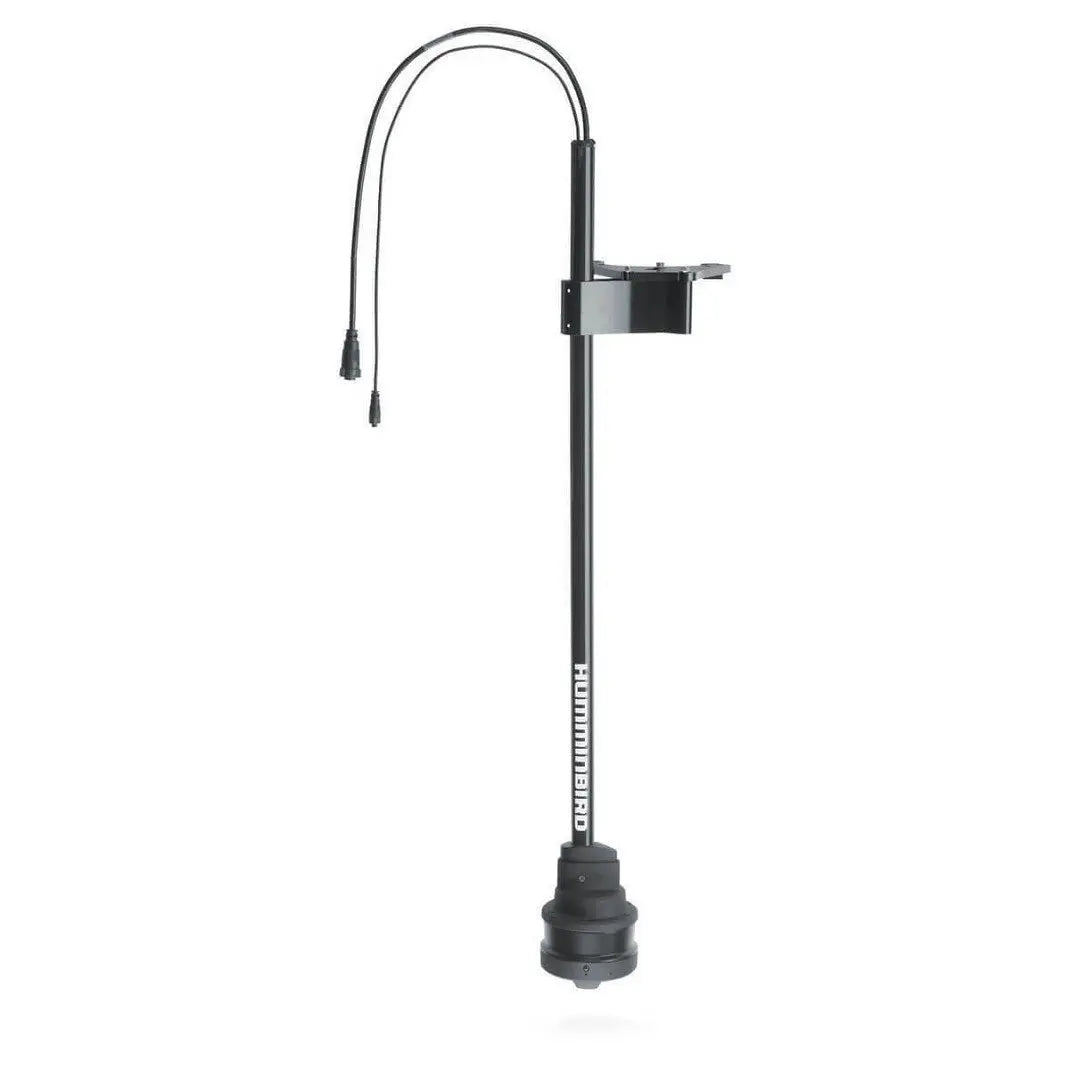

• What's Included: Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable, with 10' SOLIX transducer cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and an easy to mount MEGA 360 Imaging - Ultrex mounting bracket. (Minn Kota Ultrex trolling motor sold separately)

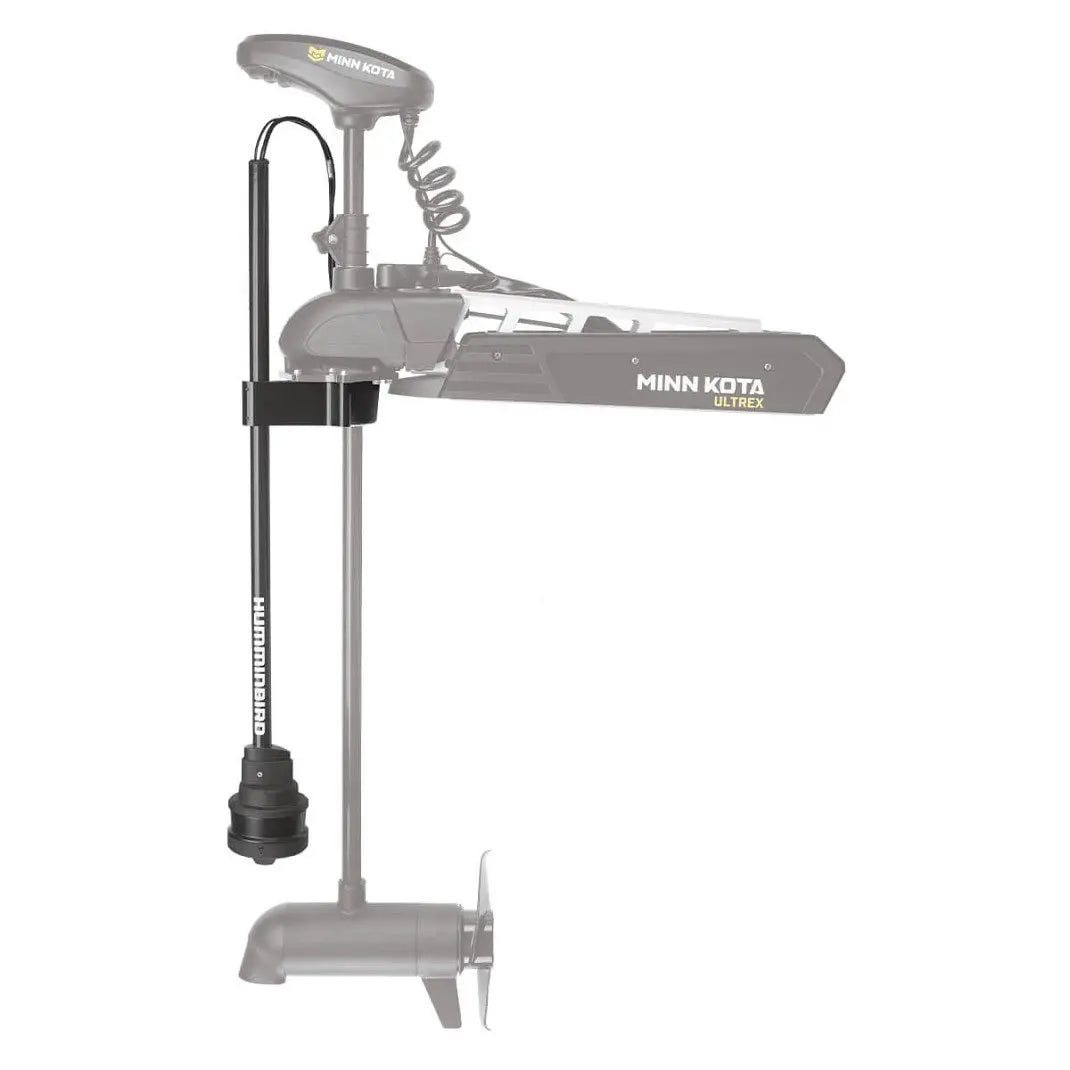

The MEGA 360 Imaging - Ultrex transducer provides a 360-degree, detail-rich view around your boat. Designed to mount to the Minn Kota® Ultrex, this transducer provides uninterrupted use of your Ultrex motor while using MEGA 360 Imaging, even while in Spot-Lock. So keep fishing in wind, waves and nasty weather, and we'll still deliver the MEGA Imaging all around you for versatility in your fishing.

Transducer shaft length
39 inches

Weight
12 Lbs

Mounting Bracket material
Anodized Aluminum

Warranty
2-Year Limited Warranty
