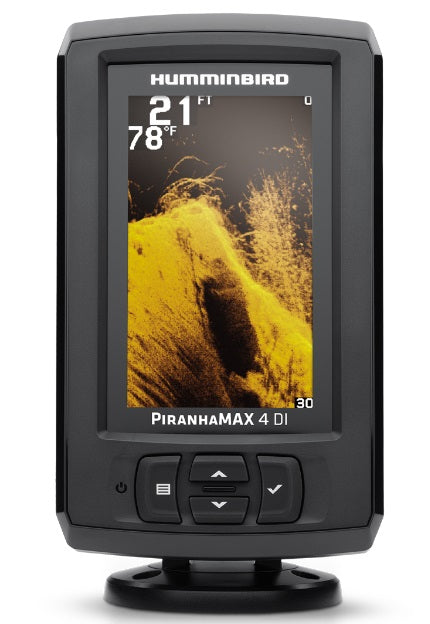

Humminbird Piranhamax 4 DI

Humminbird Piranhamax 4 DI

Humminbird Piranhamax 4DI

• Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.

The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Down Imaging sonar.

Display Size
4.3 in

Display pixel matrix
480 x 272

Display type
Color TFT

Display colors grayscale
256 Colors

Standard sonar
Down Imaging/Dual Beam

Standard sonar coverage
28°, 16° & 75° @ -10db

Standard sonar frequency
200/455/455 kHz

Target separation
2.5 in

Power output RMS
300 watts

Power output peak to peak
2400 watts

Depth capability
600 ft

Temperature
Built-in transducer

Speed
No

Backlight
Yes

Input Voltage
10.8-20 VDC

Input Draw
180 mA

Dimensions
Gimbal Mount:3.914"W x 7.335"H x 3.621"D
In Dash Unit Size2:3.914"W x 6.770"H x 2.600"D

What's in the Box:

• Piranhamax 4DI
• XNT 9 DI T
• Bracket
• Powercord
• Documentation
