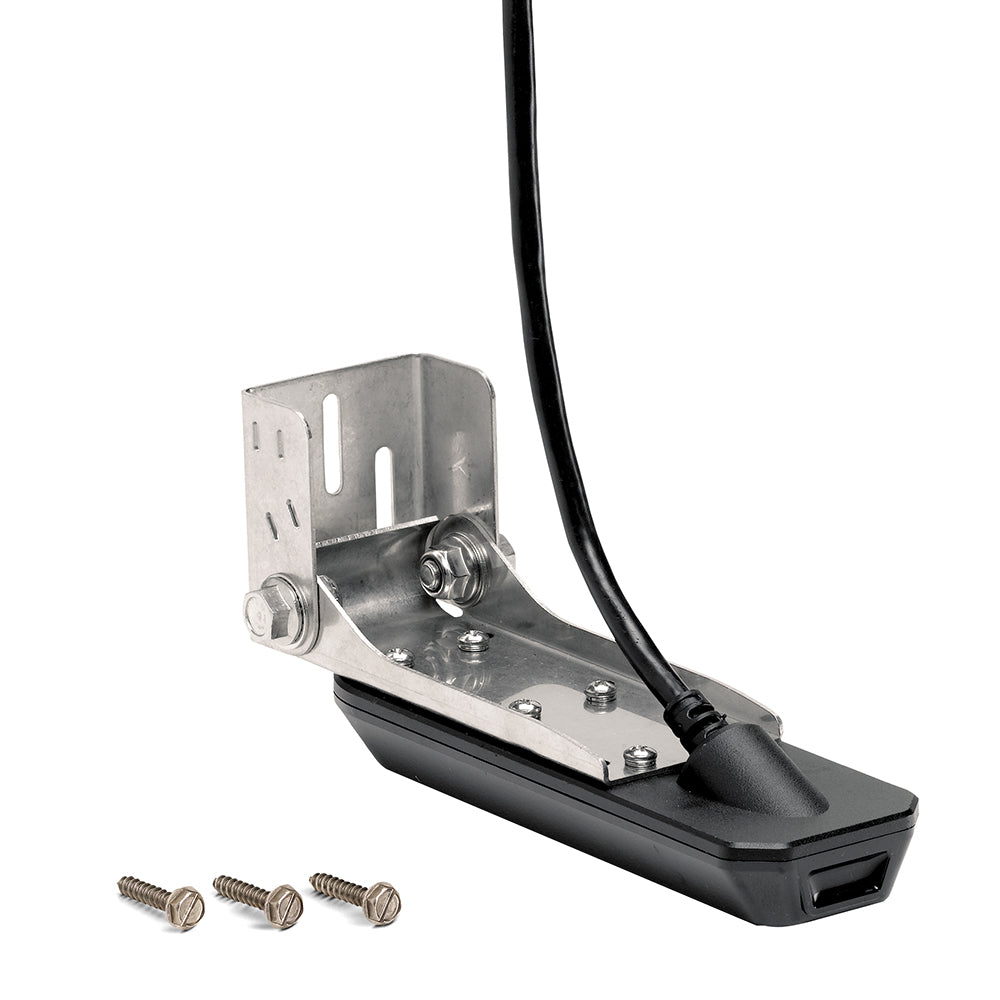

Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX MEGA DI

XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX MEGA DI

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20 cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Humminbird XM-14-HW-MDI-T MEGA DI+ dual spectrum CHIRP transom mount transducer is designed to enhance your sonar capabilities with advanced imaging features. Compatible with SOLIX 10, 12, and 15 CHIRP MEGA DI+ GPS G2 models, this transducer offers superior down imaging and 2D sonar performance. Its rugged composite construction and all-metal bracket ensure durability in harsh marine environments. The built-in temperature sensor provides real-time water temperature data, adding valuable context to your sonar readings, and the included 20-foot cable simplifies installation.
The transducer supports MEGA Imaging+ at frequencies of 440-500 kHz (455 kHz) and 790-850 kHz (800 kHz), delivering crystal-clear images of the underwater environment with maximum depths of around 400 to 440 feet depending on the frequency. Its dual spectrum CHIRP technology covers a frequency range of 150-220 kHz in full mode, with narrow and wide modes available at 180-240 kHz and 140-200 kHz respectively, reaching depths of up to 1200 feet. This versatility allows anglers and boaters to customize their sonar settings for different fishing conditions and depths.
Whether you are seeking detailed fish arches, structure, or bottom contours, this transducer provides high-resolution imaging that improves target separation and clarity. Its compatibility with Humminbird's SOLIX series makes it an ideal upgrade for serious anglers looking to maximize their fishfinding capabilities. The transducer's robust design, combined with precise frequency support and temperature measurement, ensures reliable performance across various water conditions, making it a valuable addition to your marine electronics setup.

Features:

• Compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA DI+ GPS G2 models

• Dual Spectrum CHIRP Frequencies: 150-220 kHz (full), 180-240 kHz (narrow), 140-200 kHz (wide)

• Dual Spectrum CHIRP Max Depth: 1200 feet

• MEGA Down Imaging Frequencies: 455 kHz (440-500 kHz, up to 400 ft), 800 kHz (790-850 kHz, up to 125 ft), MEGA DI+ (1075-1150 kHz, up to 200 ft)

• Built-in temperature sensor for water temperature monitoring

• Rugged composite and all-metal bracket design for durability

• Includes 20-foot cable for flexible installation
