Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Transducer with Temp for SOLIX

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX

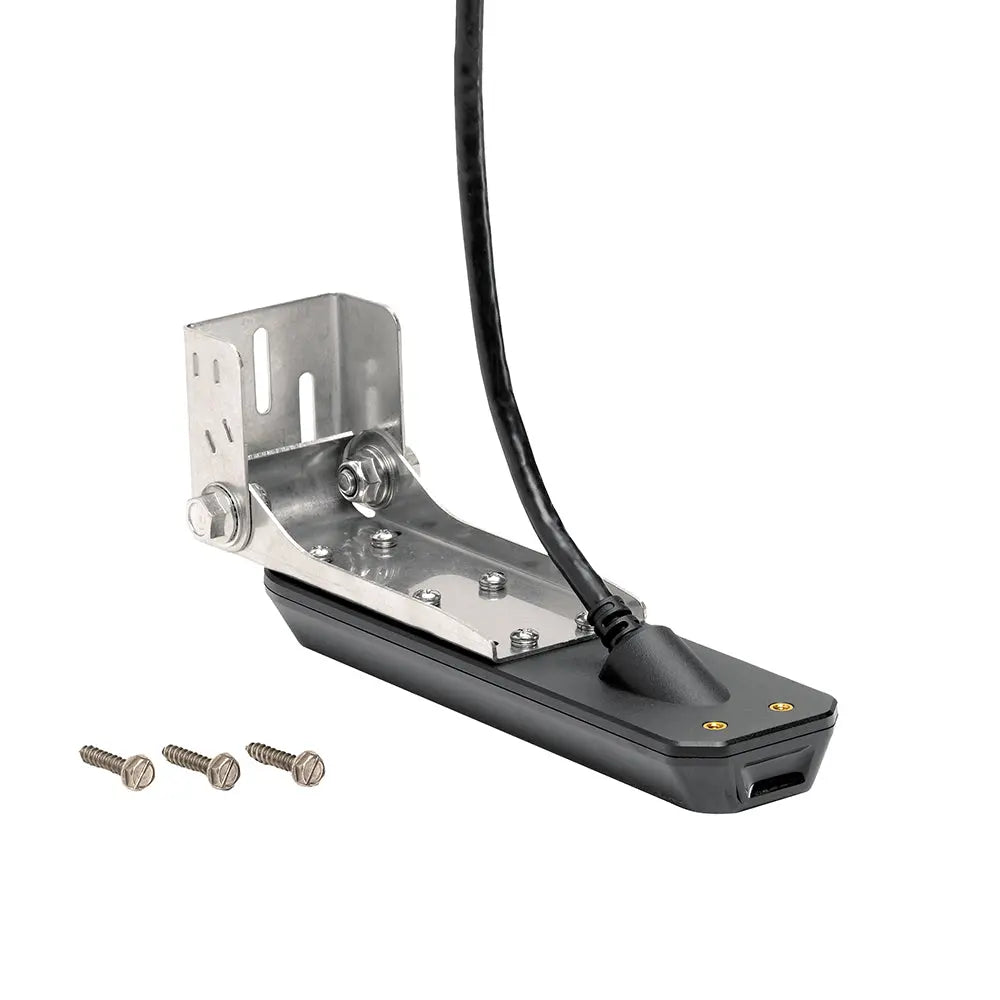

MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20 cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

The Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ dual spectrum CHIRP transducer is designed for use with compatible SOLIX series fish finders, including the SOLIX 10, 12, and 15 CHIRP MEGA SI+ models. This transducer provides high-resolution side and down imaging, supporting MEGA Imaging+ at 455kHz and 800kHz frequencies, along with dual spectrum CHIRP for versatile sonar performance. Its rugged composite construction and all-metal bracket ensure durability in harsh marine environments, while the included 20-foot cable offers flexible installation options. The built-in temperature sensor provides real-time water temperature data, enhancing your fishing experience by helping you identify optimal conditions for fish activity.

Features:

• Compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2 series fish finders

• Supports Dual Spectrum CHIRP frequencies: full range 150-220 kHz, narrow 180-240 kHz, wide 140-200 kHz

• Maximum depth capability of 1,200 feet (365 meters) for wide-ranging sonar coverage

• MEGA Side Imaging frequencies with maximum ranges: 455kHz (440-500 kHz, up to 800 feet / 244 meters), 800kHz (790-850 kHz, up to 250 feet / 76 meters), MEGA SI+ (1075-1150 kHz, up to 400 feet / 122 meters)

• MEGA Down Imaging frequencies with maximum depths: 455kHz (up to 400 feet / 122 meters), 800kHz (up to 250 feet / 76 meters), MEGA DI+ (1075-1150 kHz, up to 200 feet / 61 meters)
