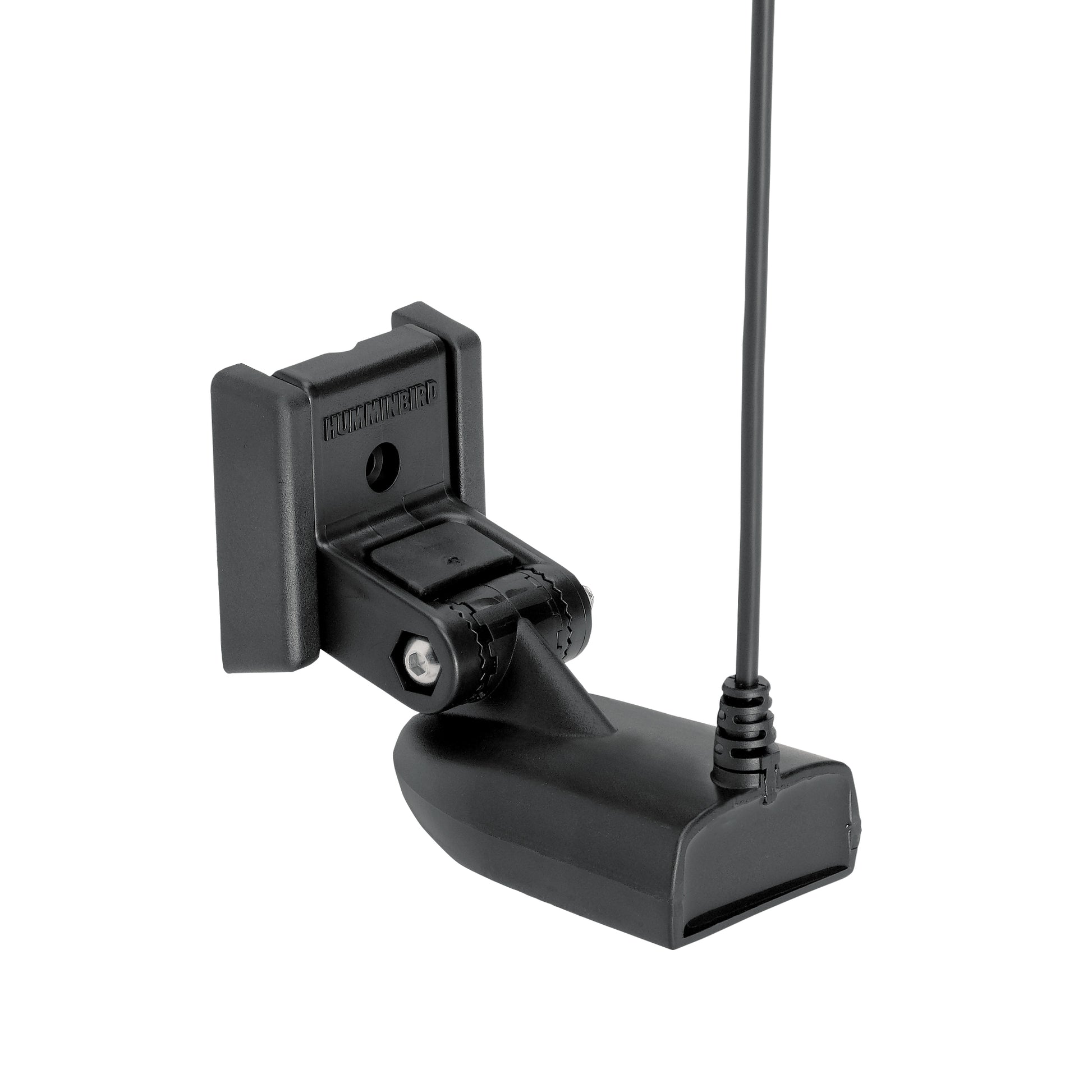

Humminbird XNT-9-HW-MSI-150-T Transom Mount with Temp

Humminbird XNT-9-HW-MSI-150-T Transom Mount with Temp

Humminbird XNT 9 HW MSI 150 T - HELIX 7/8 MEGA SI, DI, Dual Spectrum CHIRP w/Temp Transom Transducer

• This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA SI GPS G3, HELIX 7 CHIRP MEGA SI GPS G3N


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m)


• Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m)

MEGA Side Imaging Transom Mount Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable.

Mount Type
Transom

Sonar Type
MEGA Imaging, Dual Spectrum

Current Models
HELIX 7, HELIX 8
