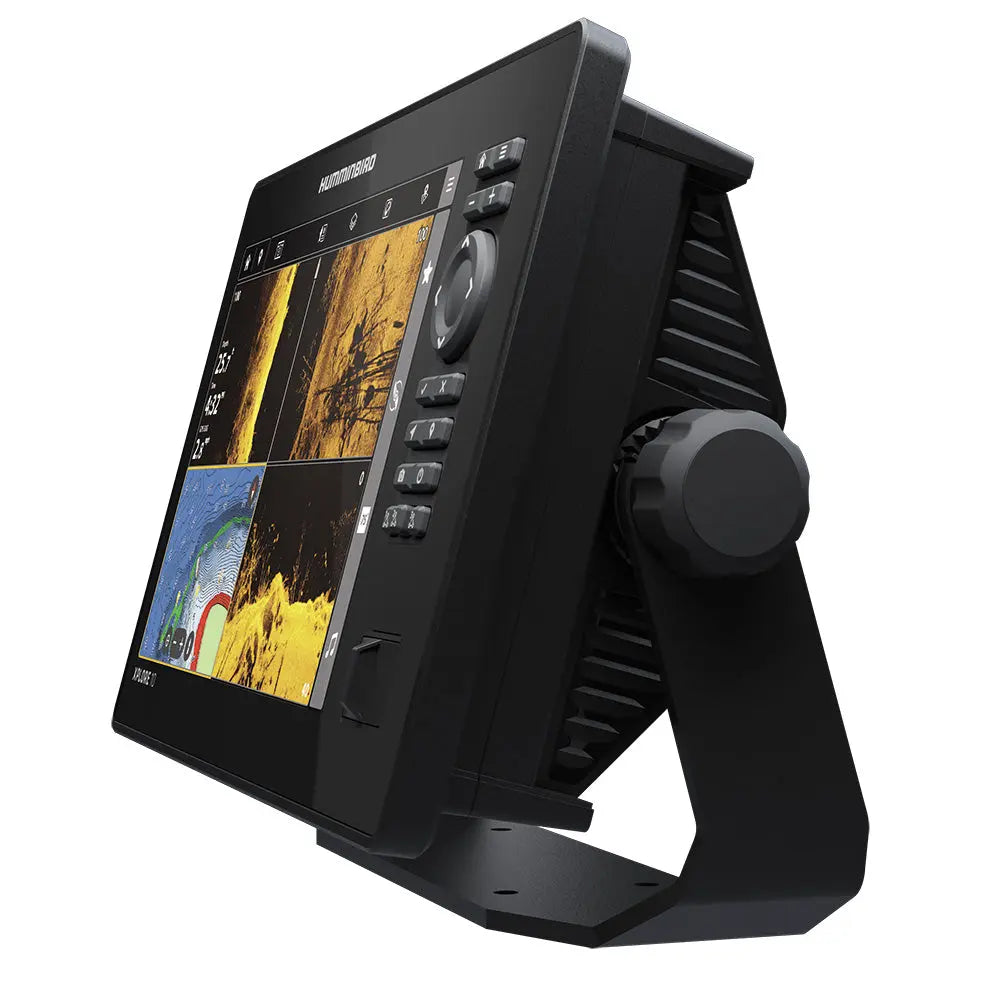

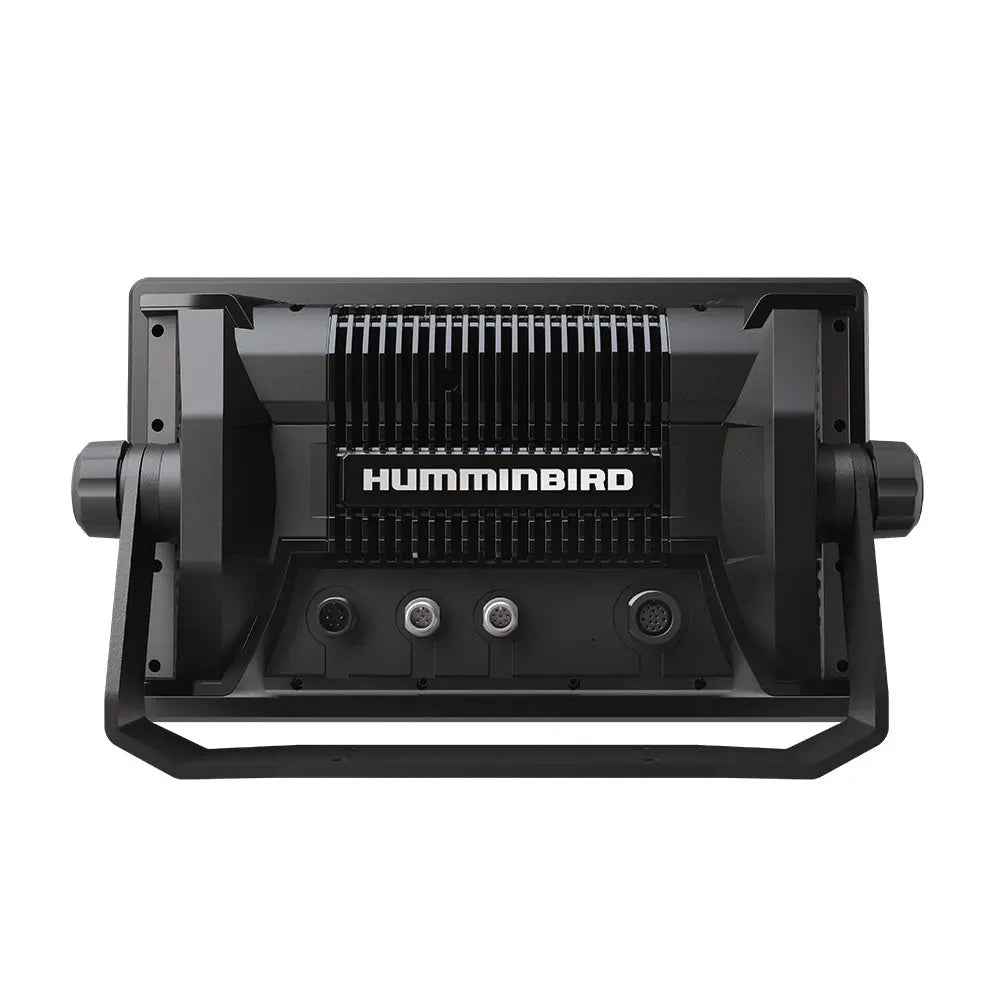

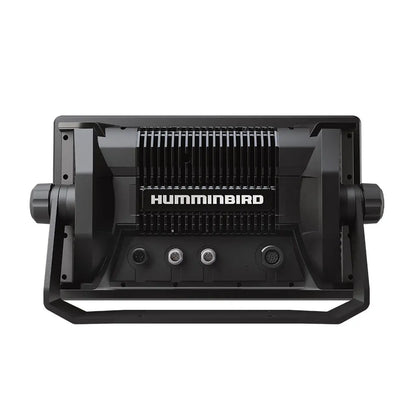

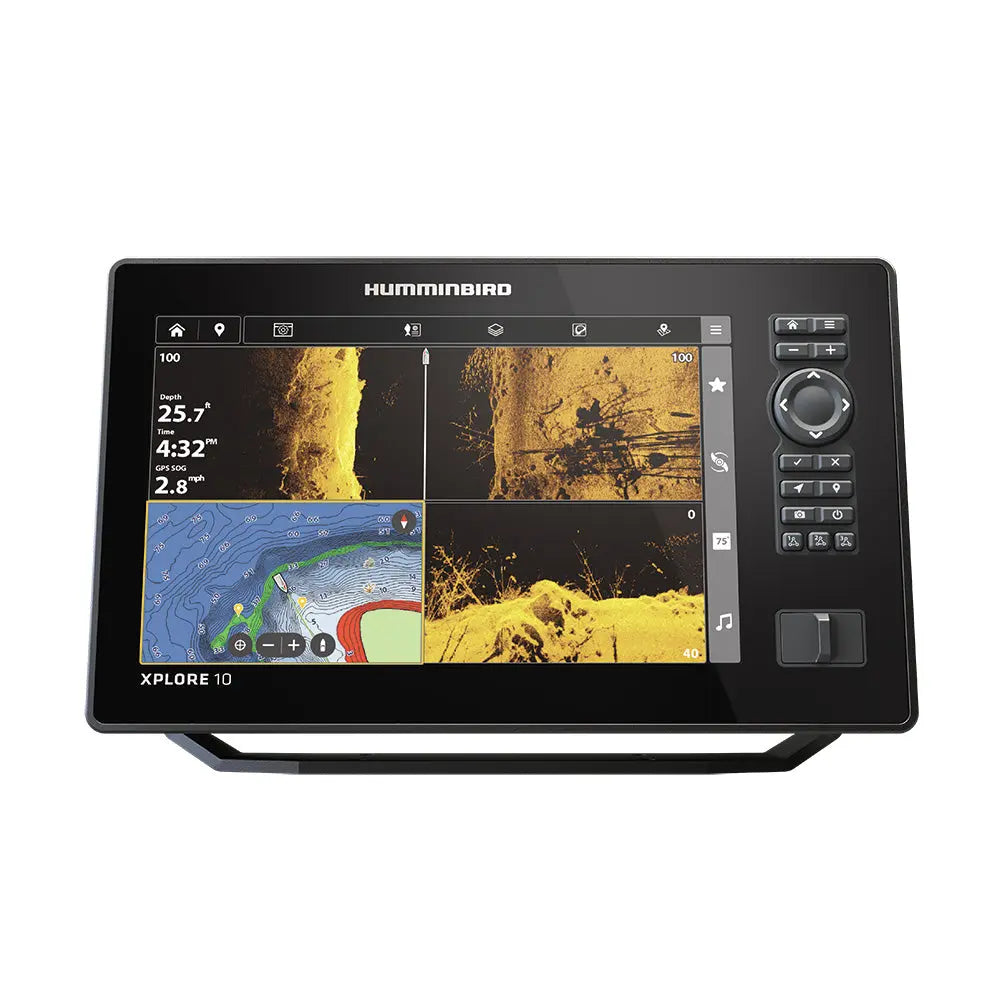

Humminbird XPLORE 10 CMSI+ Fish Finder with 10-Inch Full-HD Display and MEGA Imaging+

XPLORE 10 CMSI+

THE XPLORE 10 CMSI+ features a 10 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 10 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snap Shot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 12.098 in W x 7.702 in H x 3.891 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 12.098 in W x 7.702 in H x 3.891 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

The Humminbird XPLORE 10 CMSI+ offers anglers an advanced fishing experience with its vibrant 10-inch Full-HD color TFT display, providing sharp visuals and intuitive touchscreen control. Its high-resolution screen allows for detailed sonar and mapping images, ensuring you never miss critical underwater details. The device supports both touchscreen and keypad operation, giving you flexibility in how you control your fish finder during your outings. With its sleek design and robust features, the XPLORE 10 CMSI+ is built to enhance navigation and fishing efficiency on the water.

Equipped with industry-leading sonar technology, the XPLORE 10 CMSI+ features Dual Spectrum CHIRP Sonar, MEGA Side Imaging+, and MEGA Down Imaging+ capabilities. The Dual Spectrum CHIRP offers two search modes—Wide for broad coverage and Narrow for detailed target analysis—powered by a Low-Q CHIRP transducer that provides exceptional target separation and fish clarity. The MEGA Side Imaging+ allows you to scan up to 200 feet on either side of your boat with 20% more detail and 60% more range than previous models, revealing underwater structures and fish-holding areas with crystal clarity. Similarly, MEGA Down Imaging+ provides detailed views down to 200 feet beneath your boat, improving your ability to identify fish and underwater features.

The device includes a built-in internal GPS with Humminbird Basemap, offering detailed underwater terrain, points of interest, buoys, hazards, and marinas across over 10,000 lakes and coastal areas in the United States and Canada. Optional premium charts from Humminbird's LakeMaster and CoastMaster collections expand your navigation and fishing possibilities. The AutoChart Live feature enables real-time mapping of your favorite spots, allowing you to record depth contours, bottom hardness, and vegetation data as you fish. Connectivity options include Wi-Fi, Bluetooth, Ethernet, and NMEA 2000, facilitating seamless integration with Minn Kota, Cannon, and other compatible marine electronics, all within the One-Boat Network ecosystem. Wireless control of accessories such as shallow water anchors and downriggers, along with software updates and smartphone notifications, make this fish finder a versatile tool for modern anglers.

Constructed for durability and performance, the Humminbird XPLORE 10 CMSI+ includes essential accessories like a transducer, mounting bracket, power adapter, control head, and unit cover. Its robust design supports multiple mounting options, including in-dash and gimbal mounts, to suit various boat configurations. With a 2-year warranty, this advanced fish finder is an excellent choice for serious anglers seeking detailed imagery, comprehensive mapping, and seamless connectivity for a complete fishing and navigation solution.

Features:

• Full-HD 10-inch color TFT display with touch and keypad control for easy operation

• Dual Spectrum CHIRP Sonar with Wide and Narrow modes for detailed fish detection

• MEGA Side Imaging+ with 200-foot range and 20% more detail for side scanning

• MEGA Down Imaging+ providing clear images up to 200 feet below the boat

• Industry-leading sonar suite including MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP

• Built-in internal GPS with Humminbird Basemap and over 10,000 lakes coverage

• Support for premium charts including LakeMaster, CoastMaster, and Navionics options

• AutoChart Live for real-time mapping of fishing spots

• Wi-Fi, Bluetooth, Ethernet, and NMEA 2000 networking for seamless connectivity

• Compatibility with Minn Kota and Cannon accessories via One-Boat Network

• Wireless control of shallow water anchors and downriggers

• Includes transducer, control head, mounting bracket, power adapter, and unit cover

• Durable design with multiple mounting options for versatile installation

• 2-year limited warranty for peace of mind
