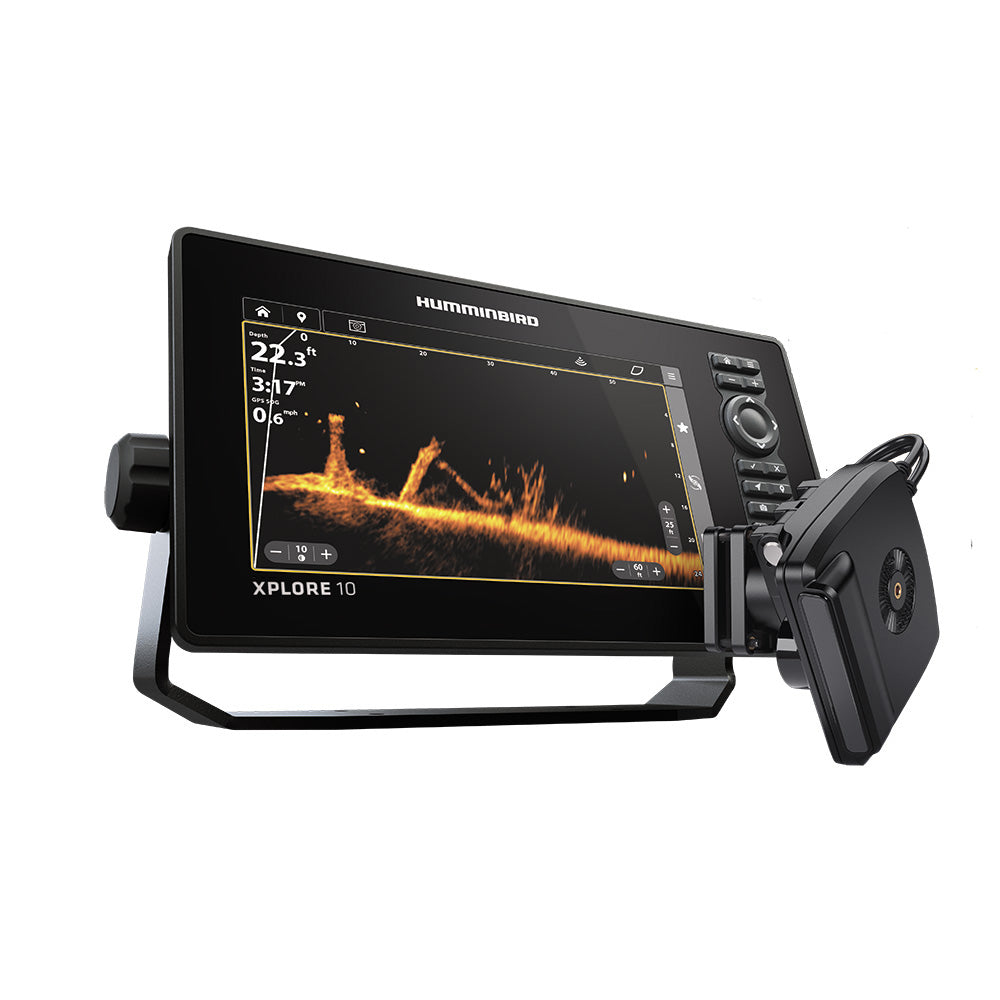

Humminbird XPLORE 10 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

XPLORE 10 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

THE XPLORE 10 CMSI+ features a 10 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 10 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Mega Live 2

• MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head
• Power adapter
• Unit cover
• Mounting bracket
• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Interface: Touch Screen, Keypad Control
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Screen Snapshot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 12.098 in W x 7.702 in H x 3.891 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 12.098 in W x 7.702 in H x 3.891 in D
• Transducer Mount Location: Transom
• GPS Chartplotting: Included
• GPS Receiver: Internal
• GPS Trackplotting: Not Supported
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• 360 Imaging Compatibility: Yes
• MEGA Live Compatibility: Yes
• Humminbird Basemap: Included
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility: Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes
• NMEA2000: Included
• Target Separation: 2.5 in
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• HDMI Compatible: No
• Warranty: Two-Year Warranty

The Humminbird XPLORE 10 CMSI+ Mega Live 2 Bundle offers anglers advanced imaging and navigation features in a compact, easy-to-use package. Its 10-inch Full-HD color TFT display provides crystal-clear visuals with a responsive Cross Touch interface, allowing seamless control of sonar and mapping functions. The high-resolution screen ensures you can interpret sonar and chart data effortlessly, whether using the touchscreen or keypad. This model includes the powerful MEGA Side Imaging+ and MEGA Down Imaging+ sonar technologies, providing detailed views out to 200 feet on either side and below your boat. These features reveal underwater structures, fish, and terrain with 20% more detail and 60% greater depth capability compared to previous MEGA Imaging models, enhancing your ability to locate fish accurately in various conditions. The Dual Spectrum CHIRP Sonar complements these imaging technologies by offering detailed fish arches and bottom structure visualization, with Wide and Narrow modes to optimize coverage or focus on specific targets, supporting frequencies up to 200 kHz for versatile searching. The bundle features the innovative MEGA Live 2 transducer, mounted on your trolling motor shaft, which provides real-time, forward, down, and landscape views with unmatched clarity, making it easier to track fish movement and structure in real-time. It is compatible with Minn Kota trolling motors and integrates seamlessly with Humminbird’s One-Boat Network, enabling synchronized operation with Minn Kota i-Pilot Link, CHIRP Radar, and more, for a comprehensive on-water system. The internal GPS coupled with Humminbird Basemap and optional premium charts from LakeMaster and CoastMaster give precise underwater terrain and navigational data, covering over 10,000 lakes and coastal regions in North America. The device supports AutoChart Live for creating real-time maps of your fishing spots, recording depth contours, bottom hardness, and vegetation, with up to 8 hours of onboard recording. Ethernet networking and Bluetooth connectivity allow for multi-device integration, wireless updates, and control over compatible accessories like shallow water anchors and downriggers. Built-in NMEA 2000 support expands connectivity options, providing access to boat performance and environmental data. The bundle includes the control head, power adapter, unit cover, mounting bracket, and transducer, ensuring ready-to-fish setup out of the box. With a two-year limited warranty, the Humminbird XPLORE 10 CMSI+ Mega Live 2 Bundle is a comprehensive solution for serious anglers seeking high-definition imaging, precise navigation, and advanced networking capabilities in a reliable, portable package.

Features:

• Full-HD display with 1280 x 720 resolution for sharp visuals

• Cross Touch interface for intuitive control via touchscreen or keypad

• Mega Live 2 live sonar transducer with forward, down, and landscape views

• MEGA Side Imaging+ provides crystal-clear images out to 200 feet on each side

• MEGA Down Imaging+ offers detailed views up to 200 feet below the boat

• Dual Spectrum CHIRP Sonar with Wide and Narrow modes for detailed searching

• Built-in internal GPS with Humminbird Basemap and optional premium charts

• AutoChart Live for creating real-time fishing maps with depth, vegetation, and bottom hardness

• Supports One-Boat Network for seamless integration with Minn Kota, Cannon, and other accessories

• Ethernet and Bluetooth connectivity for device networking and wireless control

• NMEA 2000 compatible for accessing boat performance and environmental data

• Includes control head, power adapter, transducer, mounting bracket, and cover

• Two-year limited warranty for peace of mind
