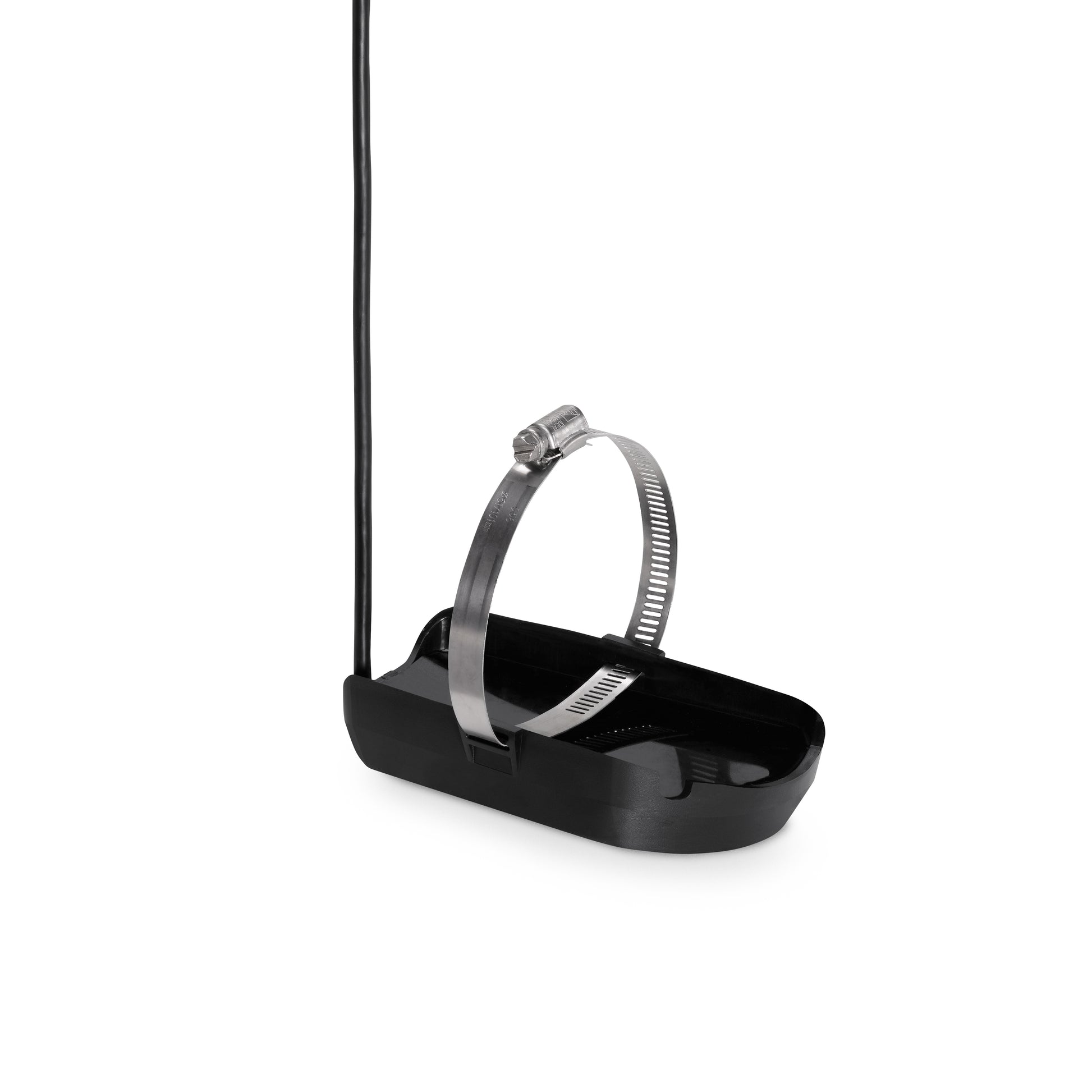

Humminbird XTM-9-HW-MDI-75-T Transducer W/Temp

Humminbird XTM-9-HW-MDI-75-T Transducer W/Temp

Humminbird XTM 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

• This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)

MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Mount Type
Trolling Motor

Sonar Type
MEGA Imaging, Dual Spectrum

Current Models
HELIX 7, HELIX 8
