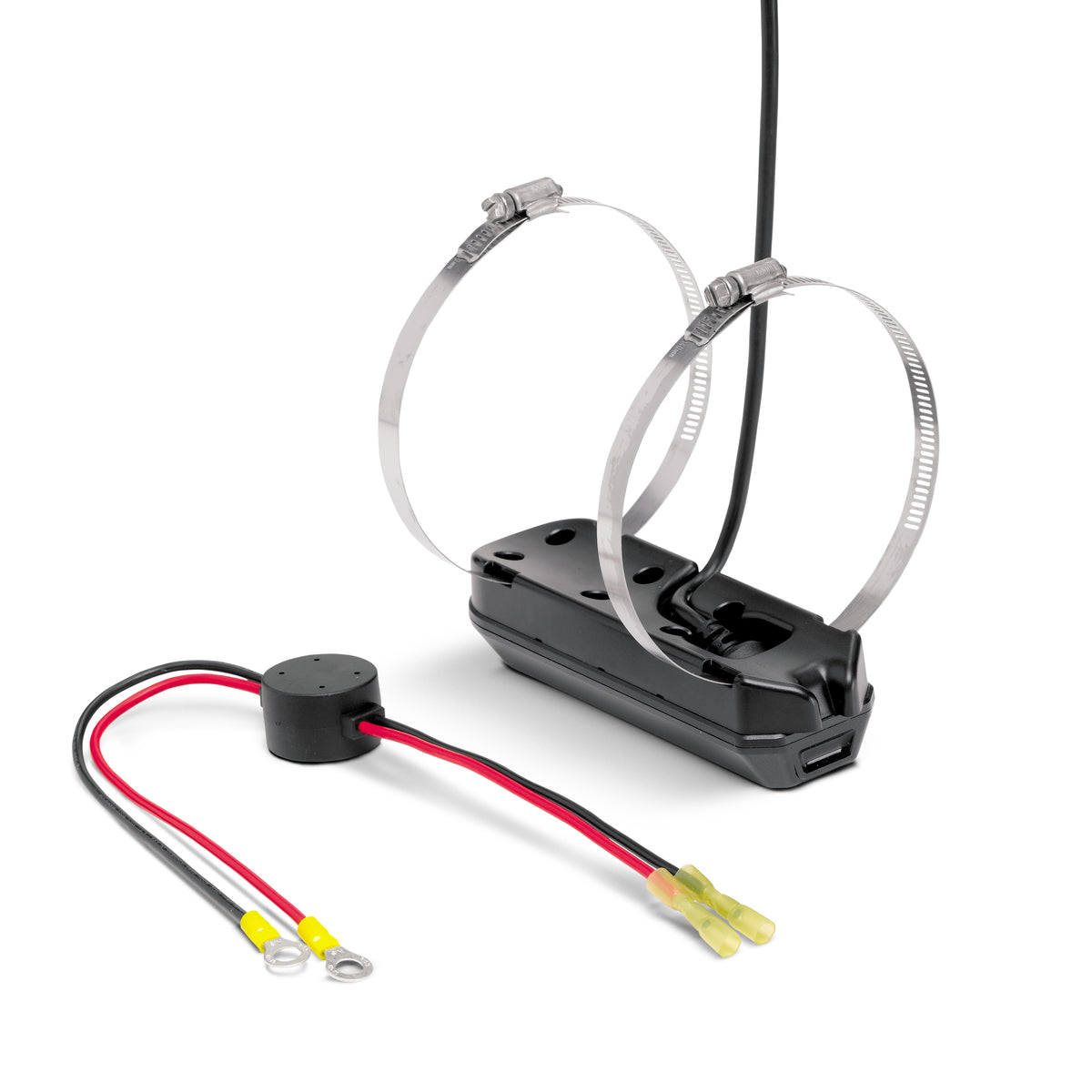

Humminbird XTM-9-HW-MDI-T Transducer W/Temp

Humminbird XTM-9-HW-MDI-T Transducer W/Temp

Humminbird XTM-9-HW-MDI-T

• This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP G3N Series, MEGA DI and MEGA SI+, HELIX 9 CHIRP G3N Series MEGA DI and MEGA SI+, HELIX 10 CHIRP G3N Series MEGA DI and MEGA SI+, HELIX 12 CHIRP G3N Series MEGA DI and MEGA SI+.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

MEGA Down Imaging+ Trolling Motor Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, trolling motor mounting hardware and 20’ cable.

Mount Type
Trolling Motor

Sonar Type
MEGA Imaging, Dual Spectrum

Current Models
HELIX 8, HELIX 9, HELIX 10, HELIX 12
