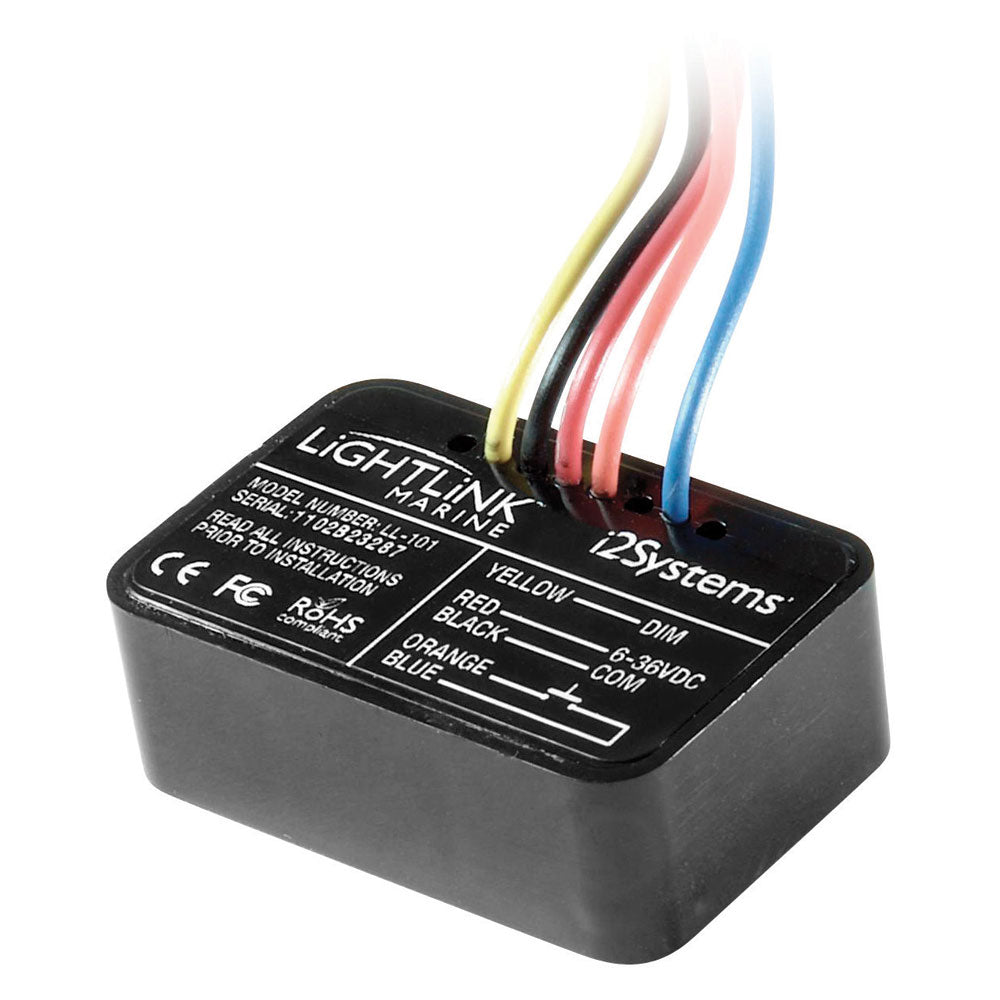

i2Systems LightLink LL-101 Marine Dimming Module for Seamless Lighting Control

LightLink LL-101 Marine Dimming Module
Part #: LL-101

Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.

Specifications:

• Input Voltage: 6-36 Volt DC

• Dimensions: Width: 1.5" x Height: 0.5" x Depth: 1.0"

Features:

• Compatible with i2Systems Apeiron, Ember and Profile lights

• Dimming control via a momentary switch or contact

• Small size, encapsulated, fits into most switch boxes

The LL-101 means that no matter what level you have the lights at when you turn them off, they will resume at full brightness when turned back on.

The LightLink LL-101 is capable of dimming and controlling up to
(20) i2Systems Fixtures, including:

• Apeiron A1110

• Apeiron A2162

• Ember E1150

• Profile P1100

(20') i2Systems

• S-Line S1200

The i2Systems LightLink LL-101 Marine Dimming Module offers a compact and reliable solution for marine lighting systems. Designed to operate with input voltages ranging from 6 to 36 volts DC, this module seamlessly integrates with compatible i2Systems fixtures such as Apeiron, Ember, Profile, and S-Line models. Its small size allows it to fit into most switch boxes, making installation straightforward without sacrificing space or aesthetics.

Operating the LL-101 is intuitive; by pressing and holding a momentary switch, users can initiate a smooth dimming cycle that adjusts lighting intensity from full brightness down to approximately 5%. When the switch is briefly pressed and released, the lights toggle on or off, resuming at the last brightness level when turned back on. This functionality ensures easy and precise control, perfect for marine environments where lighting needs may vary frequently.

The module is capable of controlling up to twenty i2Systems fixtures, including popular models like the Apeiron A1110 and A2162, Ember E1150, Profile P1100, and S-Line S1200. This scalability makes it ideal for both small and larger marine lighting setups, providing consistent performance and reliable dimming functionality. Its encapsulated design protects internal components from environmental factors, ensuring durability and longevity in marine conditions.

Whether enhancing ambiance or providing functional lighting, the LightLink LL-101 offers a straightforward and efficient solution for marine lighting control. Its compatibility with a range of fixtures and simple operation make it an essential component for marine applications where space, reliability, and ease of use are paramount.

Features:

• Compatible with i2Systems Apeiron, Ember, Profile, and S-Line fixtures

• Dimming control via a momentary switch or contact

• Smooth dimming from 100% to approximately 5% with hold operation

• Quick on/off toggle with last brightness recall

• Compact size fits into most switch boxes

• Capable of controlling up to 20 fixtures
