SKU:114525
IC-M803 SSB Radio (requires tuner)
The IC-M803 is a long-range digital communication radio for any cruiser. Reach both marine and ham frequencies with the Class E DSC MF/HF certification. It is packed with features to keep users safe, such as a distress call button, audio replay, GPS, and more. The intuitive interface of the color TFT display and the similarity of the user interface of the M605 allow for easy operation between the two radios. The IC-M803 also includes an advanced RF direct simple sampling system that improves receiver sensitivity and higher quality audio.
Features:
Users will like the large 4.3 wide viewing angle color TFT display. Clearly see the high-resolution display icons on the LCD screen from numerous positions with the nearly 180-degree wide viewing angle, which provides various installation placement possibilities. The night mode display offers readability in low-light conditions.
Intuitive User Interface
Smoothly operate and sail with the IC-M803s large main dial and keys to access functions such as accessing MMSI numbers, vessel numbers, and channels with the full alphanumeric keypad. Assign one of the software key functions to the microphones programmable button for quick access. Additionally, the head unit offers programmable keys for customizable access.
Emergency Distress Button
The IC-M803s big and easily identifiable emergency distress button is encased in a spring-loaded cover. Once pressed, a digital distress signal is sent with GPS coordinates and calls for help to other ships or coast stations. The GPS receiver offers GPS, GLONASS, SBAS, position data, speed, and UTC data when using the supplied GPS antenna. Position data may be output from the NMEA 0183 port for use with other devices.
Dedicated DSC Scanning
The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. If you are in process with a DSC call and receive another call, the IC-M803 can switch between calls with the Multiple Task Mode function. 100 MMSI numbers (75 individual/25 group) for DSC calls can be stored with a 10-character name.
Two Minute Memory Instant Replay Memory
The Instant Replay Function allows users to replay up to two minutes of previous conversations or calls. The function constantly loops and records over older audio.
Additional Features:
*Consult with an HF email provider for details
Icom IC-M803 SSB Marine Radio (requires tuner)

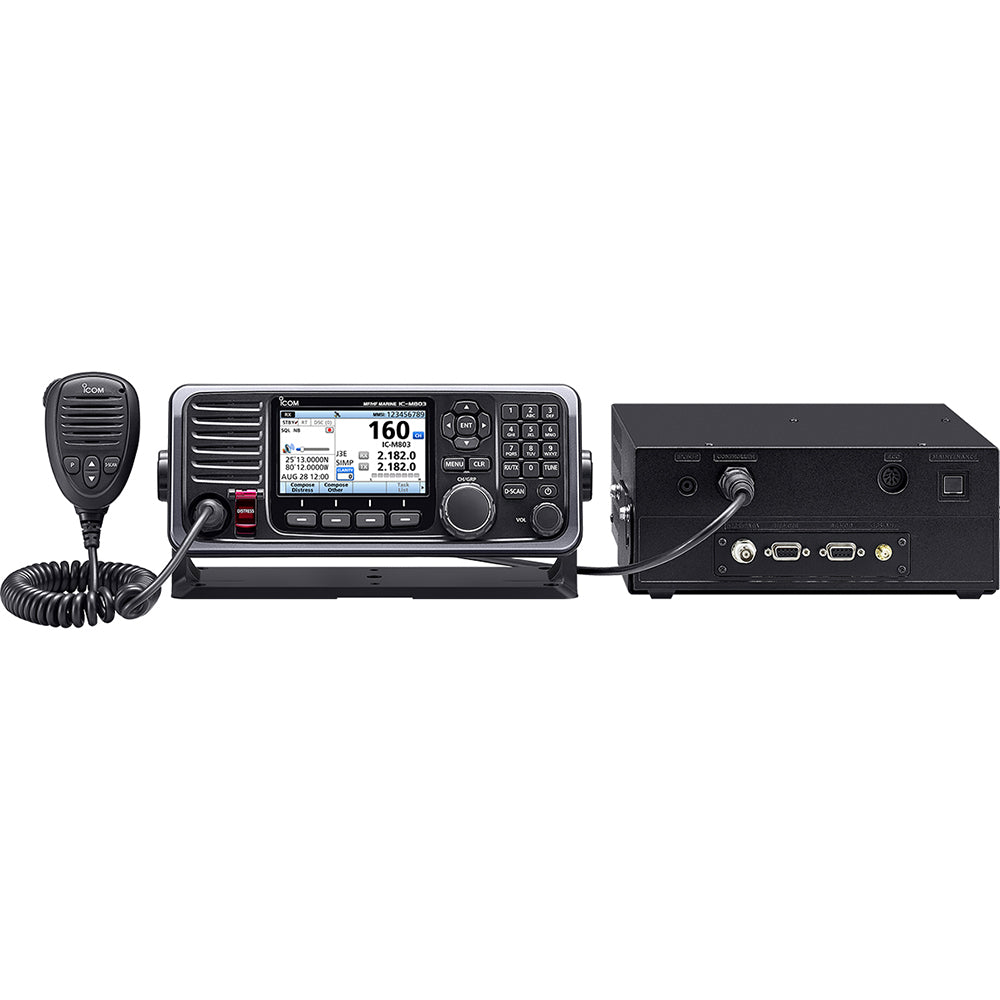

The Icom IC-M803 M803 21 USA is a long-range digital MF/HF communication radio designed for cruising vessels that need dependable communication across extended distances. With Class E DSC certification, the radio supports marine and amateur radio frequencies from 0.5 to 29.99 MHz. Its advanced RF direct-sampling receiver improves sensitivity and delivers clear, high-quality audio for reliable operation in demanding marine environments. The 150-watt transmitter provides strong communication performance, while the built-in GPS receiver supplies position, speed, UTC, GPS, GLONASS, and SBAS data when used with the supplied GPS antenna.
The radio features a large 4.3-inch color TFT display with a nearly 180-degree viewing angle, making channel information, icons, and operating functions easy to see from different helm and installation positions. Night mode improves readability in low-light conditions. A large main dial, dedicated function keys, full alphanumeric keypad, programmable microphone button, and customizable head-unit keys provide intuitive access to MMSI numbers, vessel information, channels, and other commonly used functions. The controller is rated IPX7 for water resistance.
Safety-focused functions include a clearly identified emergency distress button protected by a spring-loaded cover. When activated, it transmits a digital distress call with GPS coordinates to other vessels or coast stations. A dedicated DSC watch-keeping receiver continuously scans the six distress channels, while Multiple Task Mode allows the IC-M803 to manage another incoming DSC call during an active call. The radio stores up to 100 MMSI entries, including individual and group contacts, with names of up to 10 characters. Instant Replay memory continuously records incoming audio and can replay up to two minutes of recent conversations.
Additional capabilities include NMEA 0183 Version 4.10 data input and output at selectable speeds from 4,800 to 38,400 bps, along with HF email operation that memorizes frequency, mode, and bandwidth settings. The IC-M803 is an effective communications solution for offshore cruising, emergency readiness, and long-range marine radio operation. Consult an HF email provider for service details, and pair the radio with a compatible tuner for operation.
Features:
