Icom M330G White VHF With GPS

Explore the Features of the Icom M330G White VHF

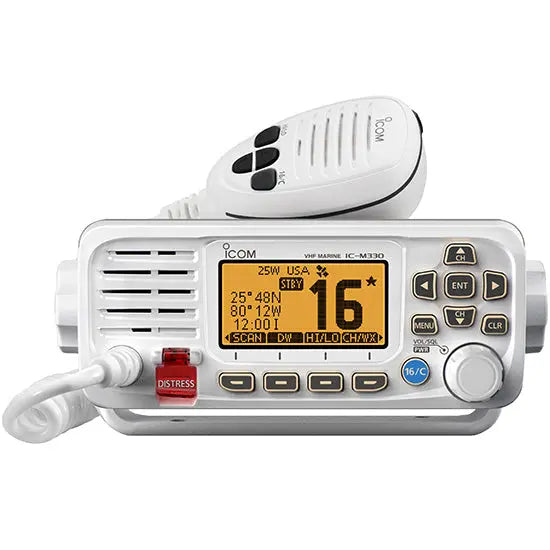

Icom M330G White VHF With GPS

Icom M330G White 25 Watt VHF With GPS

Model: IC-M330G WHITE

• AquaQuakeTM draining function
• Built-in Class D DSC with a CH70 dedicated receiver
• Common NMEA interface for external GPS/NAV connection
• Tag scan and favorite channel functions
• Dual/tri-watch function for monitoring CH16 and/or call channel
• Priority scan function
• Display and keypad backlighting
• Weather channel with weather alert
• 3-digit or 4-digit channel display selectable

The M330 series gives you the same performance and feature set as the M324 series, but now within a smaller package to fit in tight spaces. Priced at a great value the M330 series still includes the exclusive AquaQuakeTM draining feature, 25 watts of power, IPX7 Waterproof rating, scan/select scan and Icom's exclusive user interface for ease of use.

The M330's small size makes it easy to install into vessels with limited space. The dot-matrix display is clear and easy to read. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

The M330G includes a built-in GPS receiver, but still allows for an optional external GPS antenna for enclosed helm installations. A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. Hook up an external GPS antenna, which helps for an easier DSC installation. Use the acquired position information for DSC calls.

Specifications

Usable channelsUSA, CAN, INT, WX channels

Current drain (at 13.8V DC)
Tx 25W output - 5A

Rx AF max. - 1A

Operating temperature range
-20 degC to +60 degC; -4 degF to +140 degF

Output power (at 13.8V DC)
25W/1W

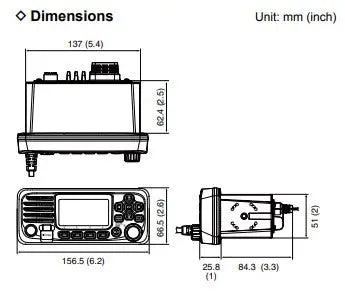

Dimensions
6.2 x 2.6 x 4.3 in

What's in the Box:

• M330G White
• Microphone
• Power Cable
• Mounting Bracket kit
• GPS antenna (5 m; 16.4 ft cable)

Durable and User-Friendly Design

The Icom M330G White VHF radio is designed for reliability and ease of use even in harsh marine environments. Its sturdy construction ensures resistance against water, dust, and shocks, making it ideal for outdoor and maritime applications. The ergonomic layout and clear display allow for easy operation, even under stressful situations. The white casing improves visibility, helping users locate the device quickly on deck. This unit is perfect for boaters needing a dependable communication tool that won't fail when it matters most.

Integrated GPS for Enhanced Safety

One of the key features of the Icom M330G White VHF is its built-in GPS capability. This integration allows the radio to transmit accurate position information during an emergency, improving safety and response time. The GPS feature helps users navigate more effectively and send distress signals with location data, a vital function for rescue operations at sea. This combination of VHF communication and GPS ensures comprehensive and reliable maritime safety coverage.

Advanced Communication Capabilities

Equipped with multiple marine communication channels, the Icom M330G White VHF supports clear and reliable voice transmission. It includes DSC (Digital Selective Calling) functionality for automated distress calling and individual or group communication. The radio also has noise-cancelling features that enhance audio clarity even in noisy environments, ensuring messages are heard loud and clear. With excellent range and signal strength, the Icom M330G provides superior coverage for marine communication needs.
