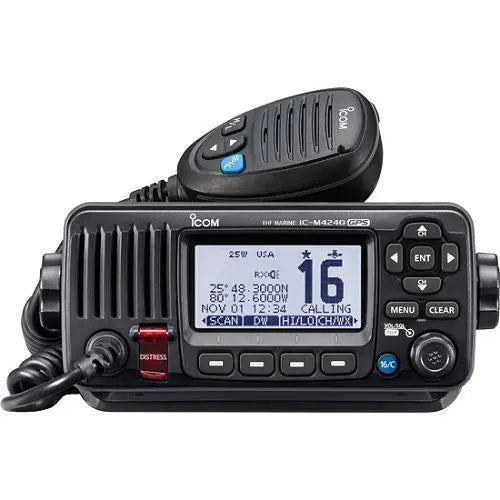

Icom M424G Black VHF Radio Class D DSC Built-in GPS

Explore the Features and Benefits of the Icom M424G VHF Radio

Icom M424G Black VHF Radio Class D DSC Built-in GPS

Icom M424G Black VHF Radio Built in Class D DSC and GPS

Model: M424G Black

• Simple remote control speaker-microphone, HM-205B/SW
• NMEA 0183 connectivity
• MarineCommanderTM compatible
• AquaQuakeTM draining function
• IPX7 submersible protection (1m depth for 30 minutes)
• Weather channels with alert function
• Dual/tri-watch function
• Priority and normal scan

Intuitive User Interface and White Backlit LCD and Keypad

Incorporating Icom's common Marine Family User Interface designed for simple, intuitive operation. A rotary selector and directional keypad provide quick and easy access to the intended functions. The high contrast white backlit LCD and laser-cut keypad match well with modern boat designs.

Active noise cancelling

The built-in active noise cancelling provides superb performance. It reduces background noise up to 90% in the received signal and 30% in the transmits signal.

10W Loud Audio, Public Address and Foghorn

The IC-M424G has a built-in 10W amplifier that increases the audio output to an external PA speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, the foghorn can also be emitted from the external PA speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built-in GPS Receiver

The built-in GPS receiver shows your current position, date/time and can be used for DSC calls. The GPS data source is selectable from internal and external GPS.

Optional White Backlit COMMANDMICTM HM-195GB/GW

The optional white backlit COMMANDMIC makes it convenient for using the IC-M424G from a separate cabin or tower. All functions of the IC-M424G can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M424G.

AIS Target Call with MA-510TR

When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Specifications

Frequency RangeTx - 156.025-157.425 MHz

Rx - 156.050-163.275 MHz

Ch70 - 156.525 MHz

Usable Channels
USA, CAN, INT, WX channels

Operating Temperature Range
-20 degC to +60 degC; -4 degF to +140 degF

Antenna Impedance
50 (SO-239)

NMEA in/Out Formats
RMC, GGA, GNS, GLL, DSC, DSE

Transmitter

Output Power @ 13.Vdc
25W, 1W

Max frequency Deviation
5 kHz

Frequency Tolerance
10ppm (-20 degC to +60 degC)

Spurious emissions
Less than -70dBc (High)

Less than -56dBc (Low)

Receiver
Sensitivity

Main
-13dB typ. (12dB SINAD)

CH70
-5dB emf typ. (1% BER)

Squelch Sensitivity
Less than -10dB

Audio output power
(at 10% distortion, 4 load)
4.5W typical

Input Voltage
13.8V DC nominal (11.7-15.9V DC)

Input Draw
up to 5.5Amps

Dimensions
7.09 x 3.23 x 4.72 in

What's in the Box:

• M424G Black
• Bracket and Knobs
• Powercord
• Hand Microphone HM205

Advanced Communication with Icom M424G

The Icom M424G sets a new standard in marine communication by combining reliable VHF radio functionality with advanced safety features. This black VHF radio supports Class D Digital Selective Calling (DSC), allowing quick and easy distress signaling and direct contact with other vessels or coast stations. Its robust design ensures clear audio communication even in harsh marine environments, making it an essential device for boaters seeking enhanced safety and efficient communication at sea.

Built-in GPS for Accurate Navigation

One of the key advantages of the Icom M424G is its integrated GPS receiver, which provides real-time location data without the need for external devices. This built-in GPS enhances situational awareness by displaying your vessel’s position, speed, and course directly on the radio's screen. Combining VHF communication with GPS functionality helps streamline navigation and emergency response, giving users greater confidence and control while navigating coastal waters or open seas.

User-Friendly Design and Practical Features

The Icom M424G is designed with user convenience in mind, featuring a clear LCD display and intuitive controls that allow easy operation even for beginners. Its compact yet durable form factor fits seamlessly into any vessel setup. Additional practical features include channel scanning, weather alerts, and dual-watch capability, which enable users to monitor multiple channels simultaneously. This radio offers boaters a comprehensive communication tool that balances advanced technology with straightforward usability.
