SKU:ICOM60541USA

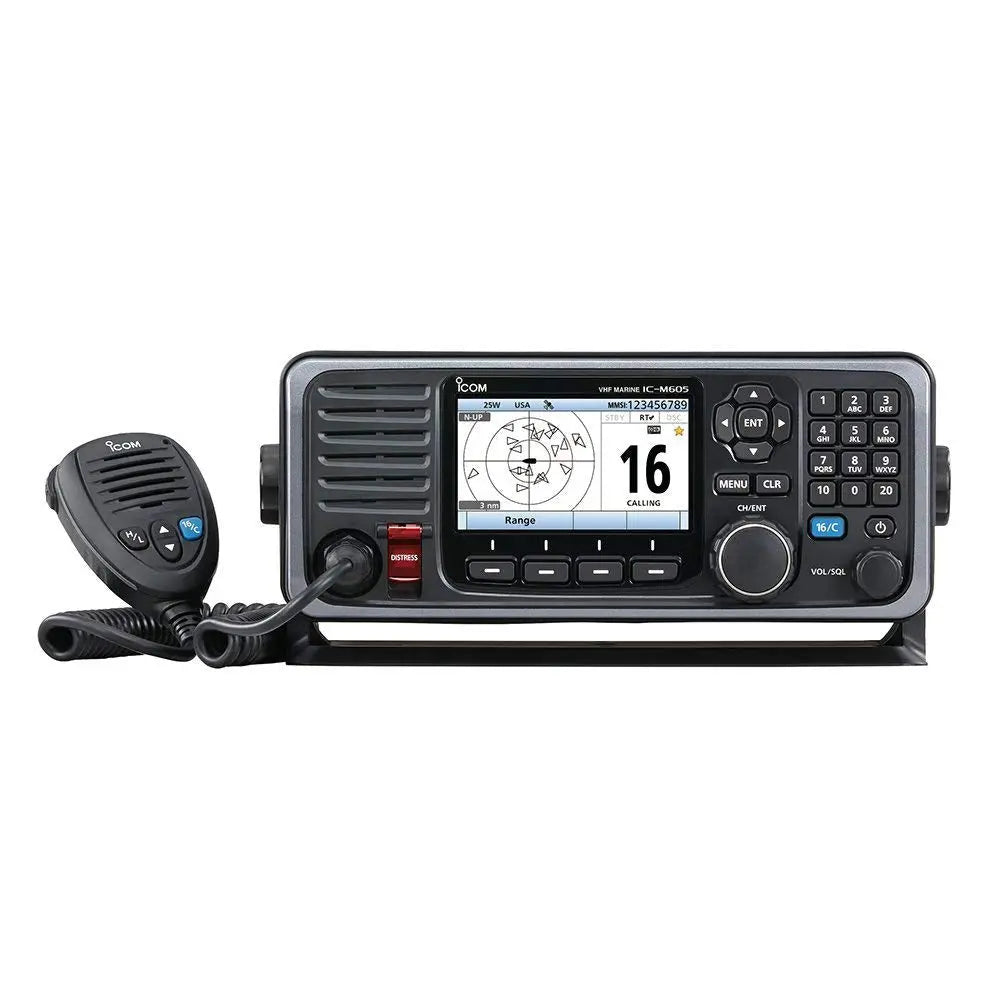

Icom M605 25W VHF AIS Rear Mic Connector
Icom M605 VHF AIS Receiver fixed mount with color display and rear mic connector
Model: M605 41 USA
All functions of the IC-M605 (including DSC and distress operation) can be
remotely controlled with up to three controllers, RC-M600 COMMAND
HEAD and/or HM-195 series COMMANDMICTM, with an intercom function
available among the main radio and controllers. The system allows
for maximum operating flexibility anywhere on your boat.
A combination of the directional keypad and soft keys provides
simple operation. Most used functions are assigned to soft keys (at
the bottom of the display) for quick one push function access. The large
ten-key pad enables you to smoothly enter channel numbers, MMSI numbers
with ID names and so on.
The IC-M605's internal speaker enhances intelligibility of received
calls. The waterproof, paper speaker-cone provides superior
sound quality with a wide frequency range and a flat frequency response for
powerful, yet clear audio.
A weak signal adjacent to a strong signal can be clearly received by
the IC-M605. Its commercial grade receiver performance (selectivity
and IMD: more than 80 dB) provides reliable communication at all times.
The GNSS (GPS, GLONASS and SBAS) receiver is integrated
in the IC-M605. Position information can be simply received
with connection to the supplied GNSS antenna with 5 m cable, UX-241.
The Active Noise Canceling digitally removes background
noise from both transmit and receive audio and provides clear
communication in a noisy maritime environment.
When connected to the optional horn speaker, SP-37, you
can talk with crews on the deck or shore from the radio's
microphone and can hear any reply via the horn speaker. Also available
the RX hailer function and four patterns of automatic foghorn.
The last call voice recording function automatically saves up to two
minutes of an incoming call. Don't miss any incoming messages.
Using NMEA 2000TM connectivity, the radio can exchange
GNSS, AIS reports, DSC call information data, radio frequency
and PGN list data on the network. NMEA 0183/-HS GNSS position data
can also be converted to NMEA 2000TM data for other equipment
With an optional voice scrambler unit, UT-112, the IC-M605
provides 32 tone secure conversation. This function is useful
when you want to share private information with consort ships.
With an integrated AIS receiver, the IC-M605 can show real-time AIS
vessel traffic information on the display. The AIS combo screen
enables you to monitor the AIS plotter during basic operation. You can directly
call a selected AIS target from the AIS screen using an individual DSC call.
Specifications
Usable channelsUSA, CAN, INT, WX channels
Operating temperature range
-20 degC to +60 degC; -4 degF to +140 degF
Antenna impedance
50 (SO-239)
Transmitter
Output power (at 13.8 V DC)
25 W, 1 W
Max. frequency deviation
+/- 5 kHz
Frequency tolerance
+/- 5 ppm
Spurious emissions
Less than -70 dBc (at 25 W)
Residual modulation
More than 40 dB
Adjacent channel power
More than 70 dB
Receiver
Intermediate frequency CH70
30.15 MHz, 450 kHz (1st/2nd)
21.70 MHz, 450 kHz (1st/2nd)
Sensitivity (at 12 dB SINAD) CH70 (1% BER)
0.22 V typical
0.71 V emf typical
Adjacent channel selectivity CH70 (1% BER)
More than 80 dB
More than 80 dB emf
Spurious response CH70 (1% BER)
More than 77 dB
More than 73 dB emf
Intermodulation CH70 (1% BER)
More than 80 dB
More than 73 dB emf
Hum and noise
More than 40 dB
Audio output power
(at 10% distortion)
More than 15 W with a 4
external speaker
Input Voltage
13.8 V DC (11.7-15.9 V DC)
Input Draw
Tx 25 W output 6A
Rx Max. audio 8A
What's in the Box:
The Icom M605 is a powerful 25W VHF AIS marine radio that ensures clear and reliable communication on the water. Its rear mic connector allows for secure and convenient attachment of compatible microphones, enhancing ease of use while navigating. Designed for boaters who value both safety and performance, the Icom M605 supports automatic identification systems (AIS) to help track vessels efficiently. With a focus on durability and high-quality sound transmission, this radio system keeps you connected even in challenging marine environments.
The rear mic connector on the Icom M605 offers straightforward plug-and-play installation that saves time and effort. Compatible with standard mic models, it enables users to quickly replace or upgrade their microphone without complex wiring. The connector’s design ensures a secure fit that withstands vibrations and moisture commonly experienced at sea. This ease of connectivity not only simplifies setup but also enhances user experience by preventing connection issues that could impair communication during critical moments.
The Icom M605 integrates advanced AIS capabilities that automatically provide vessel identification, location, and navigational data to other nearby boats and shore stations. This safety feature helps reduce collision risks and improves situational awareness in busy waterways. Coupled with the reliable rear mic connection, users benefit from clearer voice communication that is vital for emergency situations. Overall, the Icom M605 is an essential tool for any marine enthusiast seeking dependable radio performance along with enhanced safety functionalities.
