Icom M605 25W VHF Rear Mic Connector

Explore the Features of the Icom M605 25W VHF Rear Mic Connector

Icom M605 25W VHF Rear Mic Connector

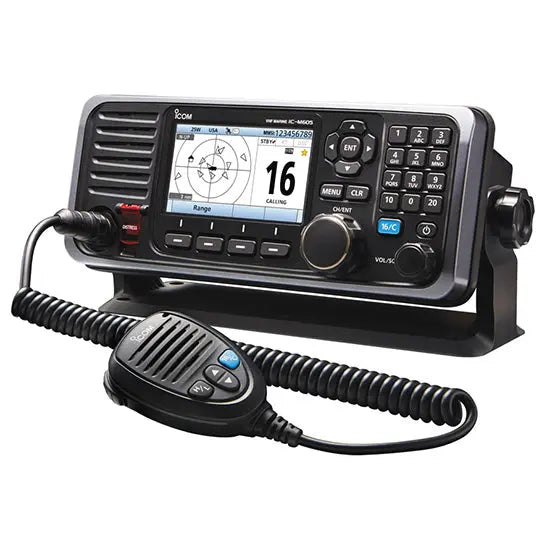

Icom M605 VHF fixed mount with color display and rear mic connector

Model: M605 31 USA

• 4.3 in wide color TFT LCD
• Night mode ensures readability in dark places
• Intuitive user interface
• NMEA2000TM and NMEA0183 connectivity
• Class D DSC
• Active noise cancelling
• Last call voice recording
• 30W listen back hailer
• Built-in horn/foghorn
• IPX8 submersible (1 m depth of water for 60 minutes)
• Dual and Tri-watch functions
• Weather channels with alert function
• DSC Multi-task function
• AquaQuakeTM draining function
• Instant-access button for Channel 16 and call channel
• Supplied speaker microphone, HM-205RB can be connected to the rear panel

All functions of the IC-M605 (including DSC and distress operation) can be
remotely controlled with up to three controllers, RC-M600 COMMAND
HEAD and/or HM-195 series COMMANDMICTM, with an intercom function
available among the main radio and controllers. The system allows
for maximum operating flexibility anywhere on your boat.

A combination of the directional keypad and soft keys provides
simple operation. Most used functions are assigned to soft keys (at
the bottom of the display) for quick one push function access. The large
ten-key pad enables you to smoothly enter channel numbers, MMSI numbers
with ID names and so on.

The IC-M605's internal speaker enhances intelligibility of received
calls. The waterproof, paper speaker-cone provides superior
sound quality with a wide frequency range and a flat frequency response for
powerful, yet clear audio.

A weak signal adjacent to a strong signal can be clearly received by
the IC-M605. Its commercial grade receiver performance (selectivity
and IMD: more than 80 dB) provides reliable communication at all times.

The GNSS (GPS, GLONASS and SBAS) receiver is integrated
in the IC-M605. Position information can be simply received
with connection to the supplied GNSS antenna with 5 m cable, UX-241.

The Active Noise Canceling digitally removes background
noise from both transmit and receive audio and provides clear
communication in a noisy maritime environment.

When connected to the optional horn speaker, SP-37, you
can talk with crews on the deck or shore from the radio's
microphone and can hear any reply via the horn speaker. Also available
the RX hailer function and four patterns of automatic foghorn.

The last call voice recording function automatically saves up to two
minutes of an incoming call. Don't miss any incoming messages.

Using NMEA 2000TM connectivity, the radio can exchange
GNSS, AIS reports, DSC call information data, radio frequency
and PGN list data on the network. NMEA 0183/-HS GNSS position data
can also be converted to NMEA 2000TM data for other equipment

With an optional voice scrambler unit, UT-112, the IC-M605
provides 32 tone secure conversation. This function is useful
when you want to share private information with consort ships.

Specifications

Usable channelsUSA, CAN, INT, WX channels

Operating temperature range
-20 degC to +60 degC; -4 degF to +140 degF

Antenna impedance
50 (SO-239)

Transmitter

Output power (at 13.8 V DC)
25 W, 1 W

Max. frequency deviation
+/- 5 kHz

Frequency tolerance
+/- 5 ppm

Spurious emissions
Less than -70 dBc (at 25 W)

Residual modulation
More than 40 dB

Adjacent channel power
More than 70 dB

Receiver

Intermediate frequency CH70
30.15 MHz, 450 kHz (1st/2nd)

21.70 MHz, 450 kHz (1st/2nd)

Sensitivity (at 12 dB SINAD) CH70 (1% BER)
0.22 V typical

0.71 V emf typical

Adjacent channel selectivity CH70 (1% BER)
More than 80 dB

More than 80 dB emf

Spurious response CH70 (1% BER)
More than 77 dB

More than 73 dB emf

Intermodulation CH70 (1% BER)
More than 80 dB

More than 73 dB emf

Hum and noise
More than 40 dB

Audio output power
(at 10% distortion)
More than 15 W with a 4
external speaker

Input Voltage
13.8 V DC (11.7-15.9 V DC)

Input Draw
Tx 25 W output 6A

Rx Max. audio 8A

What's in the Box:

• M605
• Hand microphone (HM-205RB)
• GNSS antenna (UX-241)
• PC power cable
• Mounting bracket kit
• OPC2384 Adapter Cable

Seamless Integration with Icom M605 Radios

The Icom M605 25W VHF Rear Mic Connector is designed specifically for the Icom M605 transceiver, ensuring a perfect match for your communication setup. This connector fits seamlessly at the rear of the radio unit, allowing you to easily connect your microphone for stable, clear audio transmission. By maintaining a solid connection between your mic and device, the Icom M605 enhances your communication efficiency in professional and recreational environments. Its compatibility with the 25W VHF power output optimizes signal strength without compromising audio clarity.

Durable Build for Long-Lasting Use

Crafted with high-quality materials, the Icom M605 Rear Mic Connector offers durability and reliable performance even under demanding conditions. The connector’s robust design guards against wear and tear caused by frequent attachments and detachments, as well as environmental factors like dust and moisture. This construction ensures the longevity of your radio accessories, making it a smart investment for users who rely on consistent, high-quality communication tools over time.

Easy Installation and User-Friendly Design

The Icom M605 Rear Mic Connector is built with user convenience in mind. Its straightforward plug-and-play installation process allows for quick setup without the need for specialized tools or technical expertise. The connector fits securely at the rear of the radio, providing a firm connection to prevent accidental disconnection during use. This user-friendly design helps maintain uninterrupted communication, making it ideal for professionals who require dependable equipment in the field.
