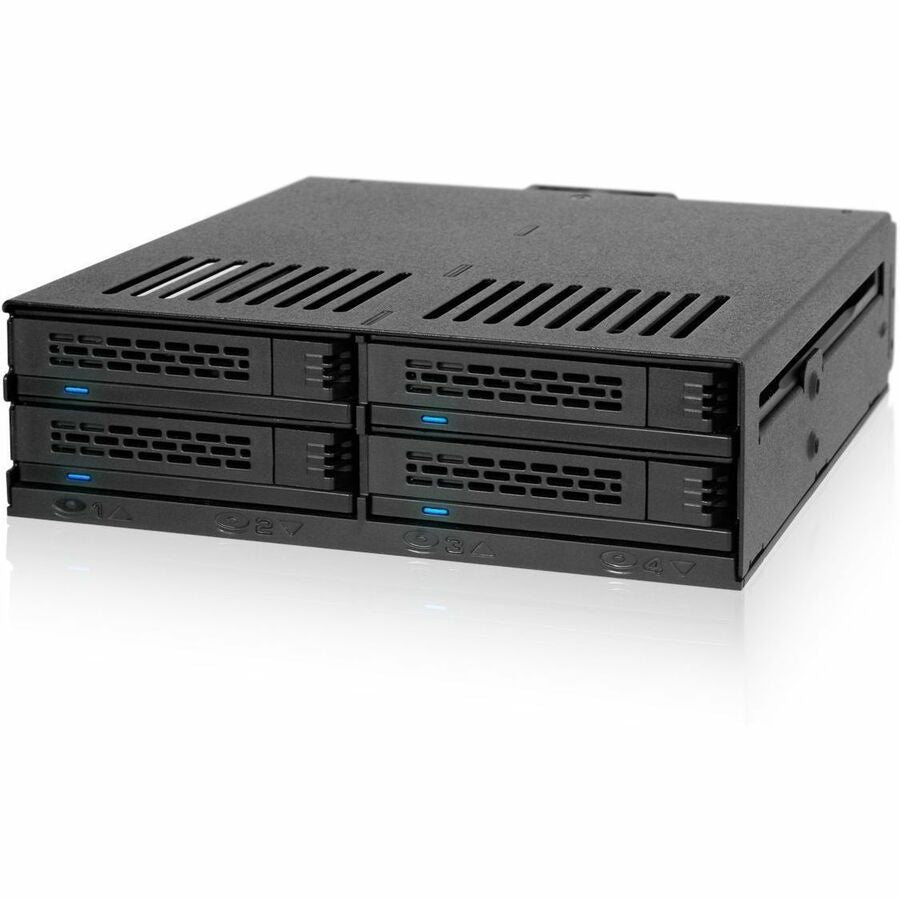

ICY DOCK ExpressCage MB324SP-1B 4-Bay 2.5-Inch SATA/SAS Drive Enclosure

Icy Dock ExpressCage MB324SP-1B Drive Enclosure for 5.25" SATA/600, 12Gb/s SAS Rack-mountable - Black

High-Density 2.5-Inch Storage for 5.25-Inch Drive Bays

The ICY DOCK ExpressCage MB324SP-1B is a 4-bay mobile drive enclosure that converts one standard 5.25-inch optical drive bay into four individually accessible bays for 2.5-inch SATA or single-channel SAS hard drives and solid-state drives. It is well suited for NAS servers, homelab systems, compact workstations, RAID arrays, backup systems, and small business servers that require flexible storage expansion in a space-efficient design. The enclosure supports SATA III data speeds up to 6Gbps and SAS 3.0 speeds up to 12Gbps when connected to a compatible SAS host.

Tool-Less ExpressTray Installation and Hot-Swap Convenience

ICY DOCK's ExpressTray system allows compatible drives to be installed and removed without tools. Align the drive with the built-in tray pins, press it into position, and secure it with the integrated latch. Optional screw holes provide additional retention for systems subject to vibration or frequent movement. Hot-swappable bays simplify drive replacement, upgrades, RAID maintenance, testing, and backup management without requiring the chassis to be opened. The MB324SP-1B accommodates 2.5-inch drives with common 5mm, 7mm, 9.5mm, and 12.5mm heights.

Adjustable Cooling and Reliable Drive Monitoring

A rear-mounted 40mm fan directs airflow across the installed drives, while ventilation openings in the enclosure and trays help support thermal management. A selectable jumper provides high, low, or off fan modes for balancing cooling performance and acoustics. The fan can also be replaced with a standard 2-pin or 3-pin 40mm model. Individual blue activity LEDs provide clear status feedback for each bay, while Active Power Technology helps conserve power by supplying power only to bays containing a drive. The black ABS enclosure includes support for locking-latch SATA connections when used with compatible cables.

Package Contents: ExpressCage MB324SP-1B enclosure, user manual, ID plug, and mounting screws. The ICY DOCK MB324SP-1B is backed by a 3-year limited warranty and provides a practical, service-friendly storage solution for builders who need compact capacity and convenient drive access.

Features:

• Supports up to four 2.5-inch SATA or SAS HDDs and SSDs in one 5.25-inch drive bay
• Compatible with SATA III up to 6Gbps and single-channel SAS 3.0 up to 12Gbps
• Hot-swappable bays simplify drive replacement, upgrades, and maintenance
• Supports 2.5-inch drives with 5mm, 7mm, 9.5mm, and 12.5mm heights
• Active Power Technology supplies power only to bays containing an installed drive
• Tool-less, removable ExpressTrays provide fast installation and secure drive retention
• Optional tray screw holes add stability in vibration-prone or mobile systems
• Individual blue LED indicators provide activity status for each drive bay
• User-replaceable 40mm cooling fan supports high, low, and off operating modes
• Compatible with aftermarket 2-pin and 3-pin 40mm fans
