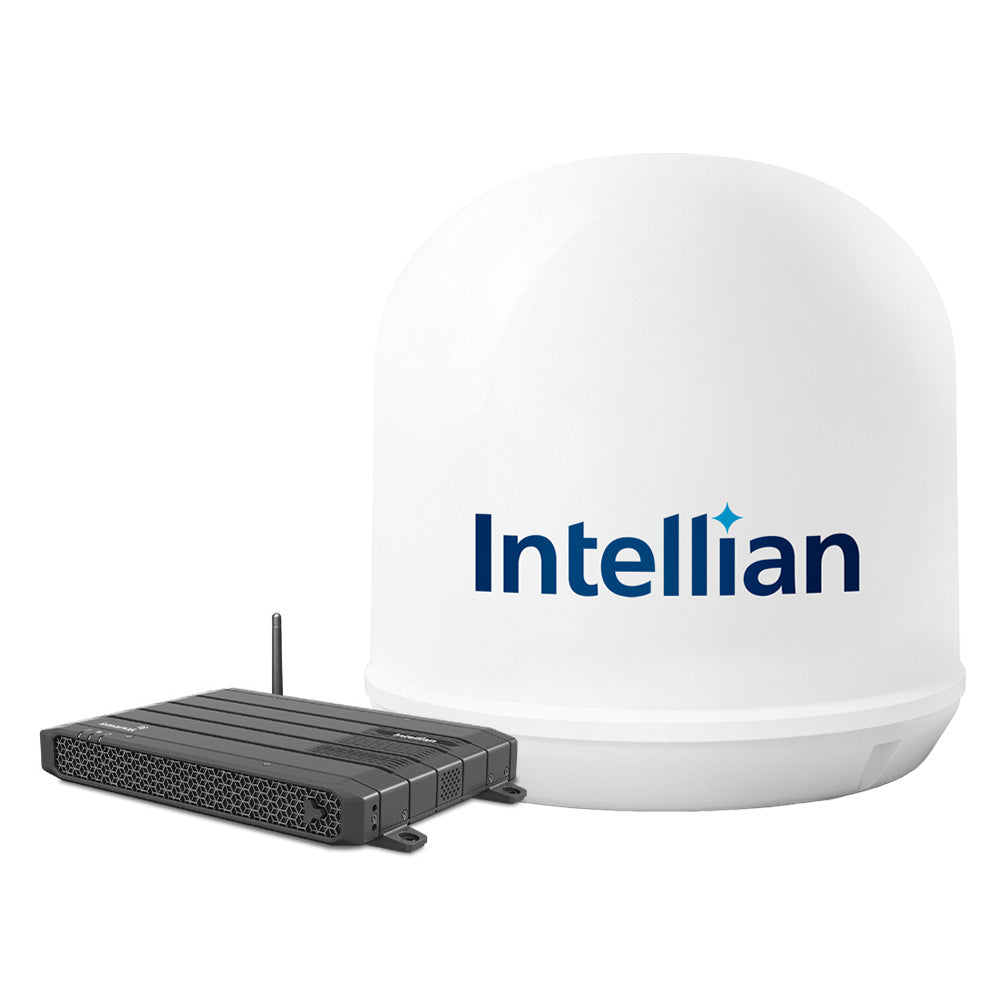

Intellian Maritime Terminal F4-A100-S for Inmarsat Fleet One Service - Reliable Sea Connectivity

Maritime Terminal for Inmarsat Fleet One Service

Intellian Fleet One is the perfect terminal for Inmarsats Fleet One service which enables simultaneous voice and data connectivity up to 150 Kbps. Intellian Fleet One ensures resilient and reliable connectivity at sea.

The Intellian Fleet One is simple and easy to install and use. The lightweight antenna can be carried onboard easily and only a single RF cable ensures a reliable connection.

Features:

• Simultaneous voice and data
• Built-in firewall for data security
• 505 emergency calls which in an emergency directs a call straight through to an MRCC
• Maritime safety terminal support
• Built-in aptusLX intuitive management tool
• 2 LAN ports with PoE (power over ethernet)

Technical Specifications:

• ADU (Above Deck Unit) Dimensions - 291.1 x 294.5 mm / 11.5" x 11.6"
• ADU (Above Deck Unit) Weight - 4.9 kg / 10.8 lbs
• BDU (Below Deck Unit) Dimensions - 280 x 190 x 41 mm / 11.0 x 7.5x 1.45
• BDU (Below Deck Unit) Weight - 1.2 kg / 2.6 lbs
• DC Input - 10.8-30 VDC
• Power (Max) - 120w
• Tx Frequency - 1626.5 MHz - 1675.0 MHz
• Rx Frequency - 1518.0 MHz 1559.0 MHz
• WiFi - 802.11 b/g

In the Box:

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• Coaxial Cable
• Quick Installation Guide
• Installation Template
• DC Power Cable
• Ethernet Cable

The Intellian Maritime Terminal F4-A100-S is designed to provide seamless communication for vessels utilizing Inmarsat's Fleet One service. This compact and lightweight terminal delivers reliable voice and data connectivity, supporting speeds up to 150 Kbps, essential for maritime operations and safety. Its straightforward installation process allows for quick deployment on a variety of vessels, making it an ideal choice for maritime communication needs. The terminal's single RF cable design ensures a stable connection, reducing setup complexity and maintenance requirements. Built-in features like a firewall for data security and 505 emergency call support, which enables direct communication with Maritime Rescue Coordination Centers (MRCC), enhance safety and operational efficiency at sea. Additionally, the integrated aptusLX management tool simplifies network monitoring and configuration, providing operators with an intuitive control interface. The terminal includes two LAN ports with Power over Ethernet (PoE), enabling easy network integration and powering connected devices without additional power supplies. Its durable design and comprehensive package—including both above and below deck units, coaxial cable, and installation accessories—ensure robust performance in demanding maritime environments. With support for WiFi 802.11 b/g, the system offers versatile connectivity options for onboard devices, further extending its utility. Whether for safety, operational communication, or crew connectivity, the Intellian Fleet One maritime terminal is a comprehensive solution for maritime communication needs, combining ease of use, security, and reliability in a compact form factor.

Features:

• Simultaneous voice and data transmission for efficient communication

• Built-in firewall enhances data security onboard

• 505 emergency call support for direct MRCC communication

• Maritime safety terminal support for vessel safety protocols

• Intuitive management with built-in aptusLX control tool

• Dual LAN ports with Power over Ethernet (PoE) for network flexibility
