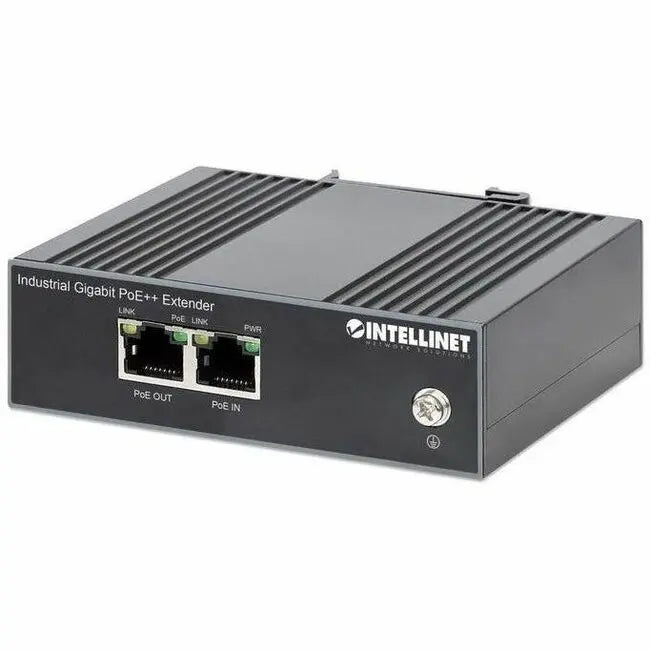

Intellinet Industrial Gigabit PoE++ Extender - DIN Rail Mountable, 200 M Range, 80 W Power Delivery

The Intellinet Industrial Gigabit PoE++ Extender (Part Number: 508957) is designed to extend your Power over Ethernet network in challenging industrial environments. With this device, you can double the standard PoE distance from 100 meters (328 feet) to 200 meters (656 feet), making it ideal for large-scale IoT deployments, security cameras, wireless access points, and VoIP phones. Its rugged IP30-rated metal housing ensures reliable operation under extreme conditions, including temperatures ranging from -40 to 75°C (-40 to 167°F). The extender's DIN rail mounting capability allows for flexible installation in industrial settings, streamlining setup and maintenance. It supports up to 10/100/1000 Mbps data rates and is compatible with IEEE 802.3bt/at/af standards, delivering up to 80 watts to powered devices, such as network cameras, wireless access points, and VoIP phones, without requiring an external power supply. The device draws power directly from the PoE input, simplifying deployment and reducing wiring costs. Features include short-circuit, overload, and high-voltage protection, along with a grounding point for surge protection. The auto-sensing PoE awareness ensures power is only sent to compatible devices, while LED indicators provide real-time status updates. The device supports 2,000 MAC addresses with auto-learning and auto-aging, making it suitable for complex network environments. The package includes the extender, DIN-rail mount bracket, and instructions, backed by a three-year warranty. Built with compliance to RoHS, NDAA, and multiple international standards, this PoE++ extender by Intellinet offers a robust and efficient solution for industrial network expansion, ensuring high performance and durability even in demanding conditions.

Features:

• Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

• Delivers up to 80 W to a connected PoE device

• IP30-rated metal housing to withstand harsh industrial conditions

• Suitable for extreme operating temperatures of -40 to 75°C (-40 to 167°F)

• Option for DIN-rail installation for flexible deployment

• Compatible with IEEE 802.3bt/at/af-compliant powered devices such as network cameras, wireless access points, and VoIP phones

• Supports 10/100/1000 Mbps data rates for versatile network connectivity

• Auto-sensing PoE awareness ensures power is only sent to IEEE-compliant devices

• Non-PoE devices only receive data, ensuring network safety

• Short-circuit, overload, and high-voltage protection for reliable operation

• Grounding point to protect equipment from electrical surges

• Requires no additional power supply; draws power directly from the PoE input

• Compatible with IEEE 802.3bt/at/af PoE injectors and switches (PSE)

• Supports 2,000 MAC address entries with auto-learning and auto-aging

• LED indicators for power input and PoE status for easy monitoring
